Instrument Panel, Gages & Console Component Views

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

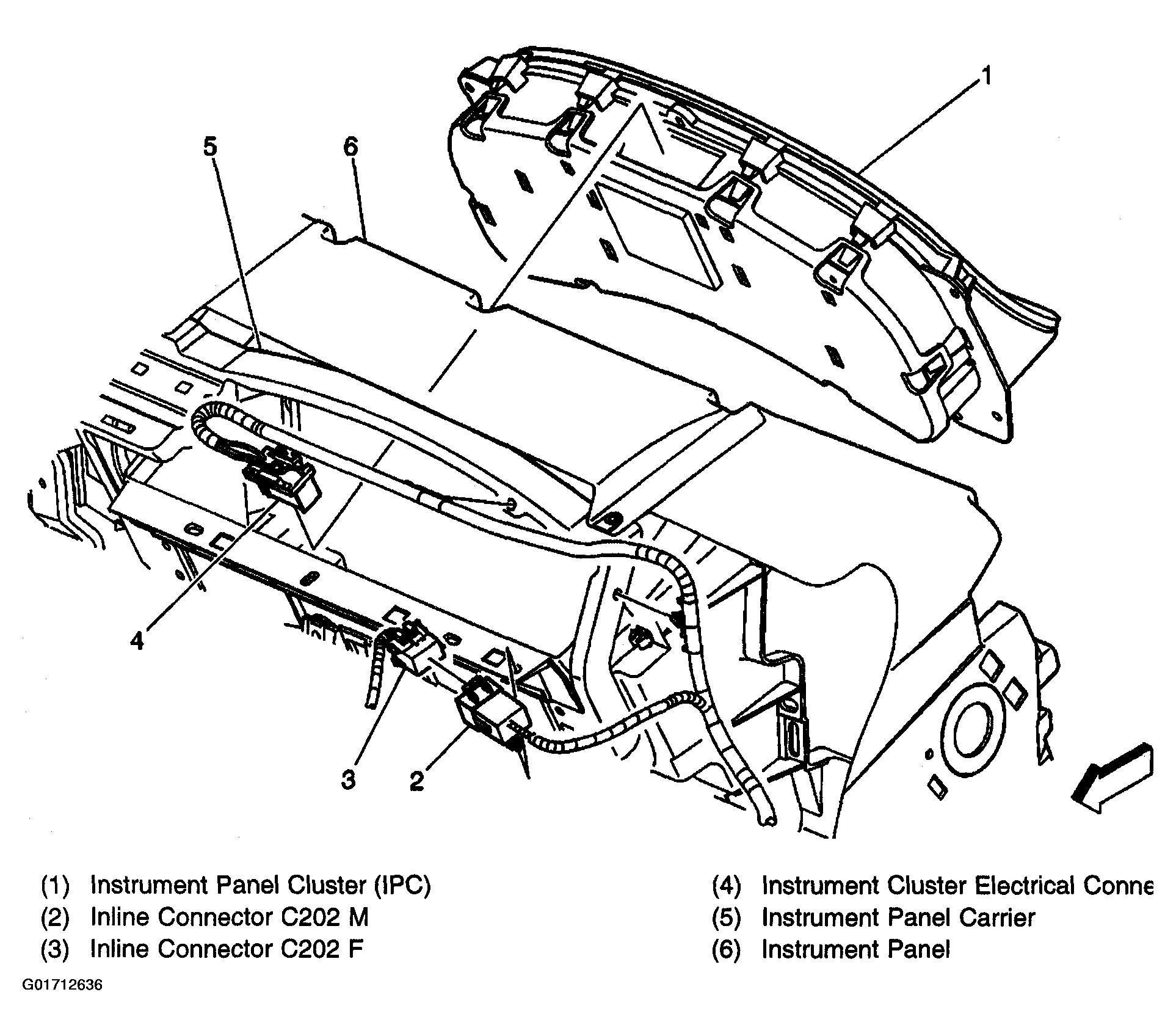

Fig 1: Instrument Cluster Assembly Component Views
G01712636Courtesy of GENERAL MOTORS CORP.

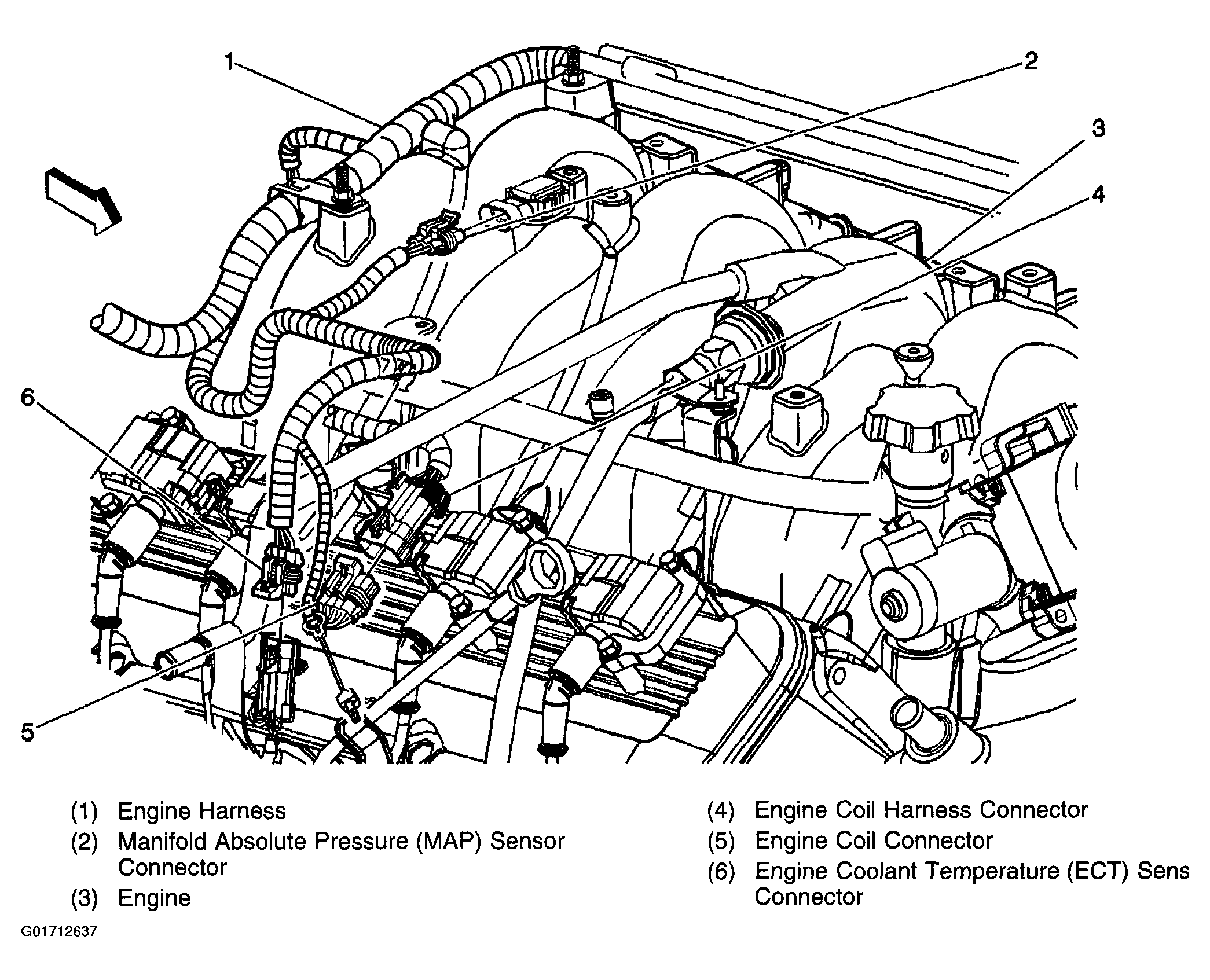

Fig 2: Locating ECT & MAP Sensors
G01712637Courtesy of GENERAL MOTORS CORP.

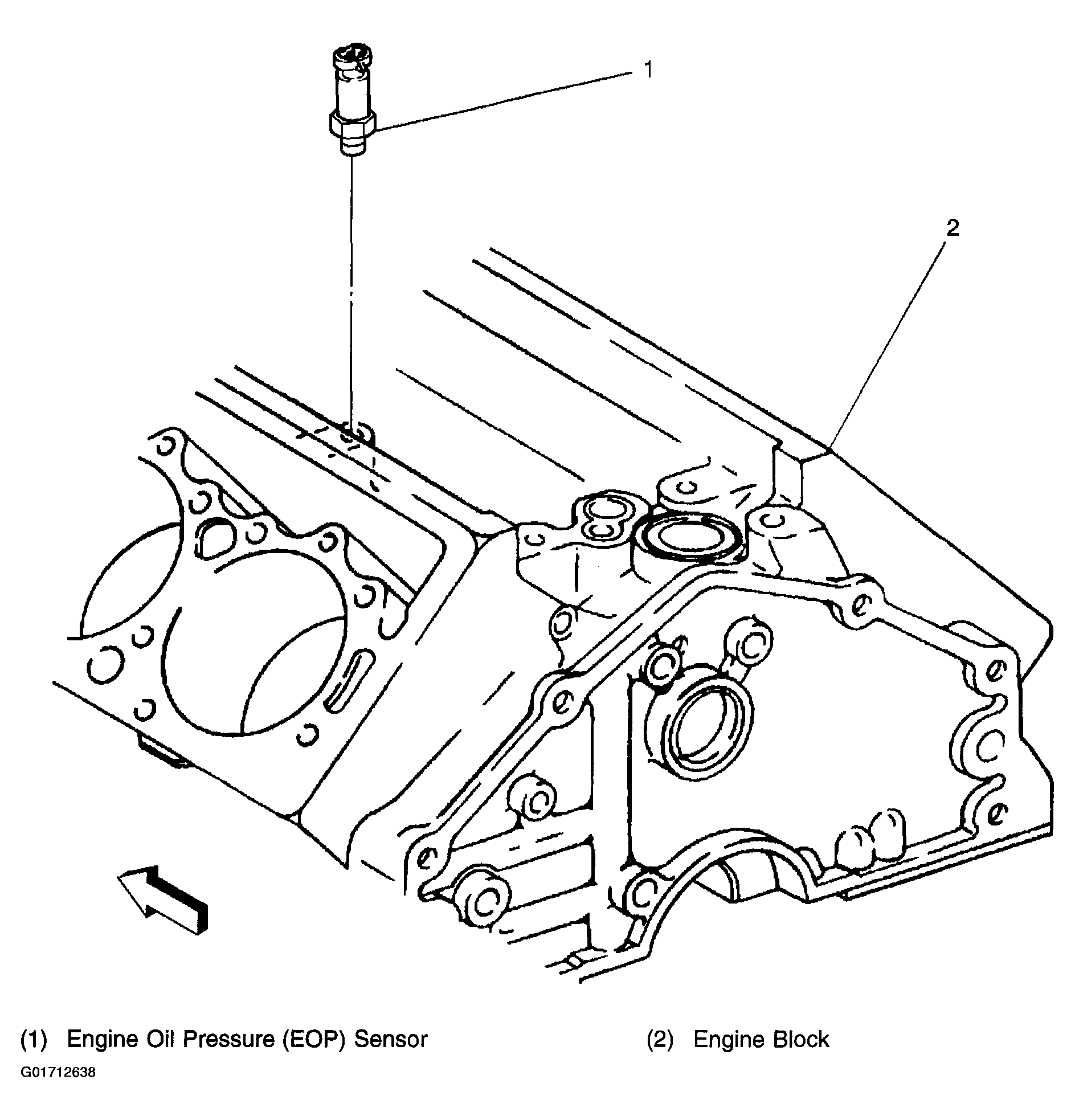

Fig 3: Locating Engine Oil Pressure (EOP) Sensor
G01712638Courtesy of GENERAL MOTORS CORP.
