Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise the hood.
  2. Remove the headlamp assembly. Refer to HEADLAMP ASSEMBLY OR HEADLAMP BULB REPLACEMENT .
  3. Remove the park/turn signal lamp assembly. Refer to PARK/TURN SIGNAL LAMP REPLACEMENT .
  4. Disconnect the horn electrical connector.
  5. Remove the horn bolt. Reposition the park/turn signal lamp wiring harness for additional clearance.

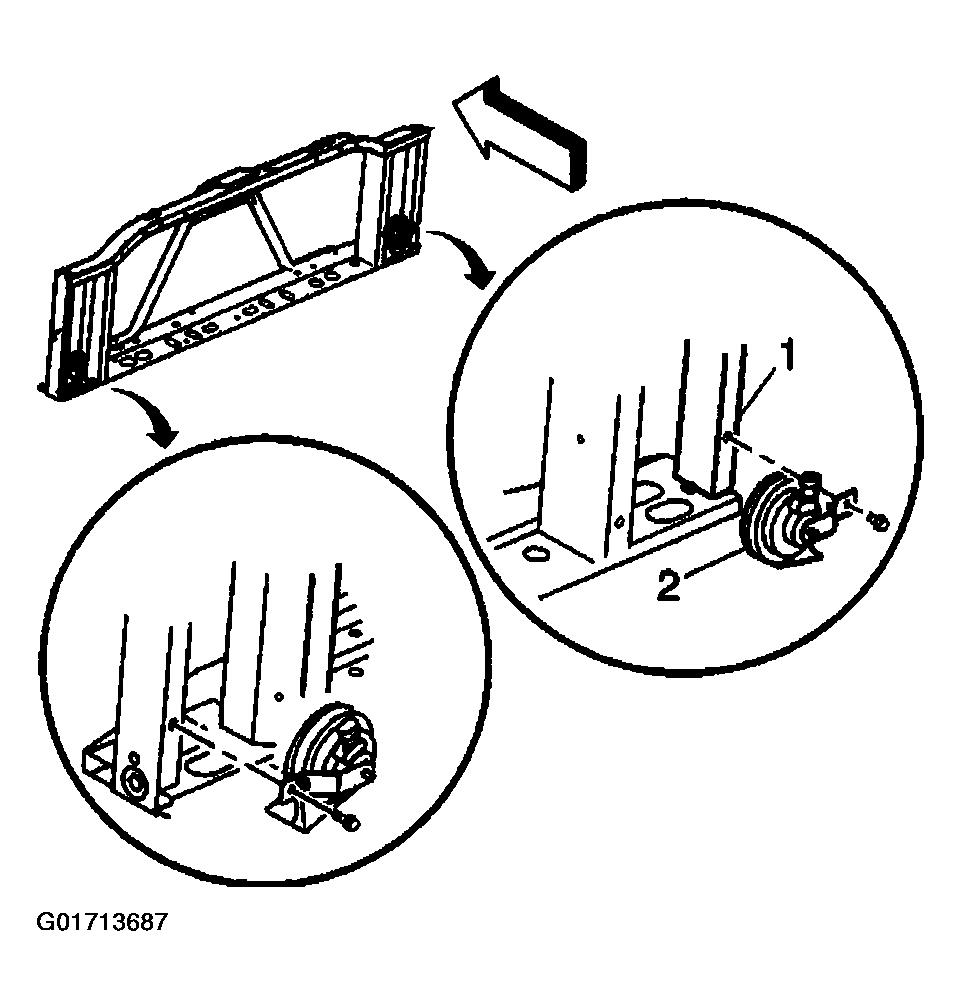

  6. Remove the horn (2) from the radiator support (1). Left side and right side horn assemblies are shown.
    Fig 1: Removing Horn From Radiator Support
    G01713687Courtesy of GENERAL MOTORS CORP.
