Diagnostic Aids

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

This DTC may be stored as a History DTC with out affecting the operation of the module. If stored only as a History DTC and not retrieved as a current DTC, do not replace the module.
If this DTC is retrieved as both a Current and History DTC, replace the module.

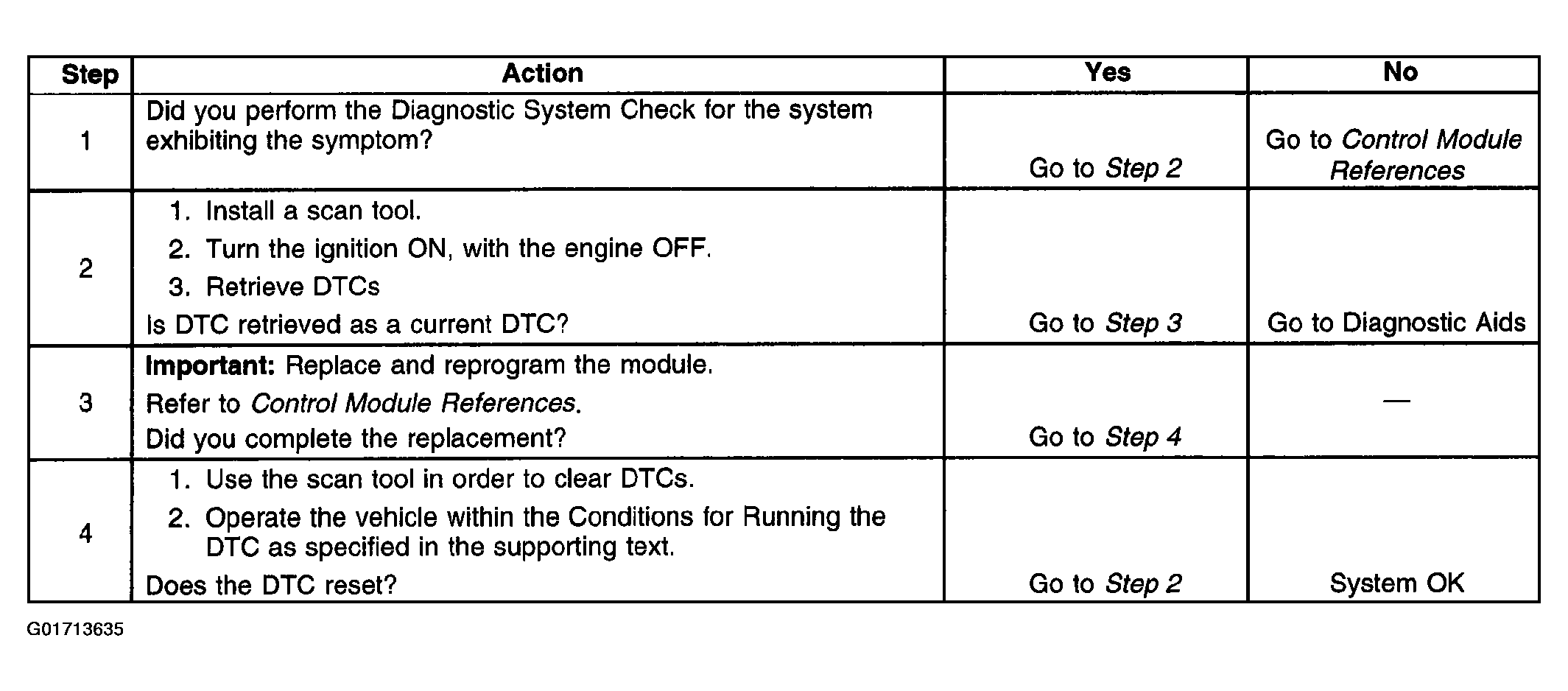

Fig 1: DTC B1000 Diagnosis

Courtesy of GENERAL MOTORS CORP.
