Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the IP trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
  2. Lower the front of the headliner.
  3. Disconnect the cable connector (5) from the VIU connector.
  4. Disconnect the in-line harness connector (4).
  5. Disconnect the harness connector (2) from the microphone connector.
  6. Disconnect the cable connector (3) from the GPS antenna.
  7. Remove the cable clips from the A-pillar and roof.
  8. Remove the cable assembly from the vehicle.

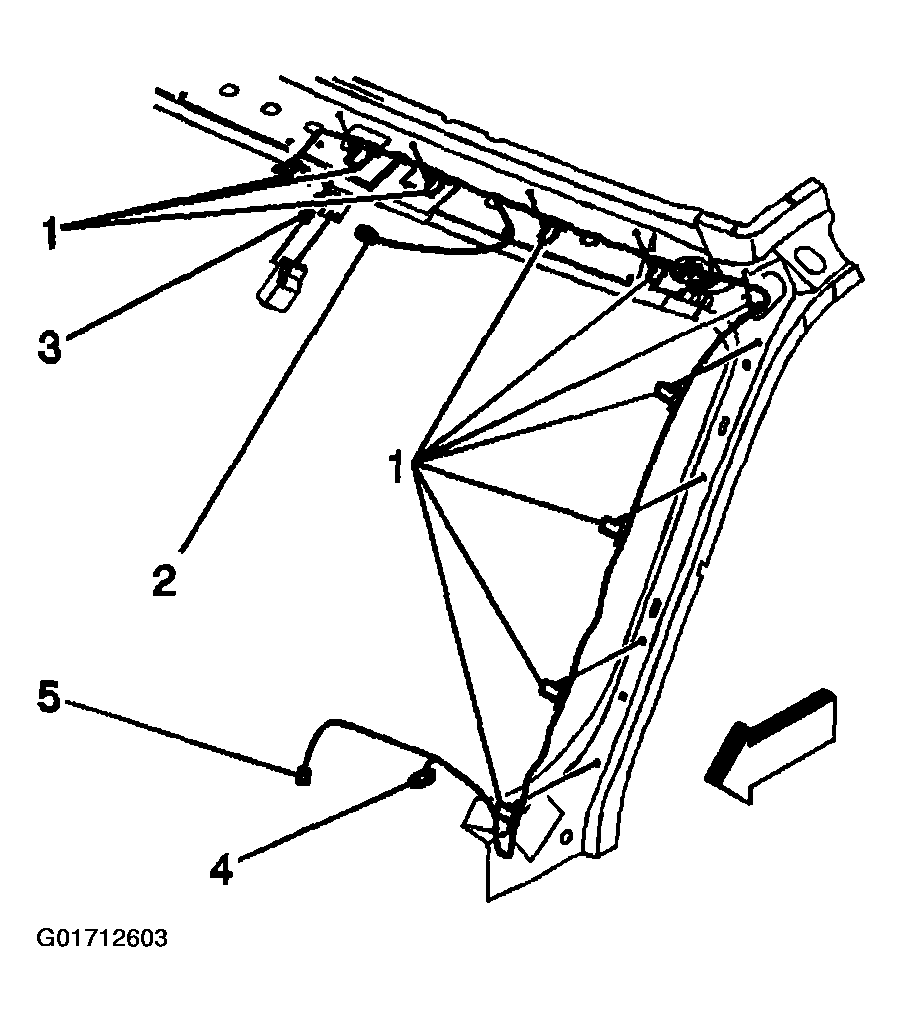

    Fig 1: GPS Coaxial Cable Replacement
    G01712603Courtesy of GENERAL MOTORS CORP.
