Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the I/P trim panel. Refer to TRIM PANEL REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
  2. Lower the front of the headliner.
  3. Disconnect the cable connector (3) from the VCU.
  4. Disconnect the cable connector (1) from the antenna base.
  5. Remove the six cable clips (2) from the A-pillar.
  6. Remove the cable from the vehicle.

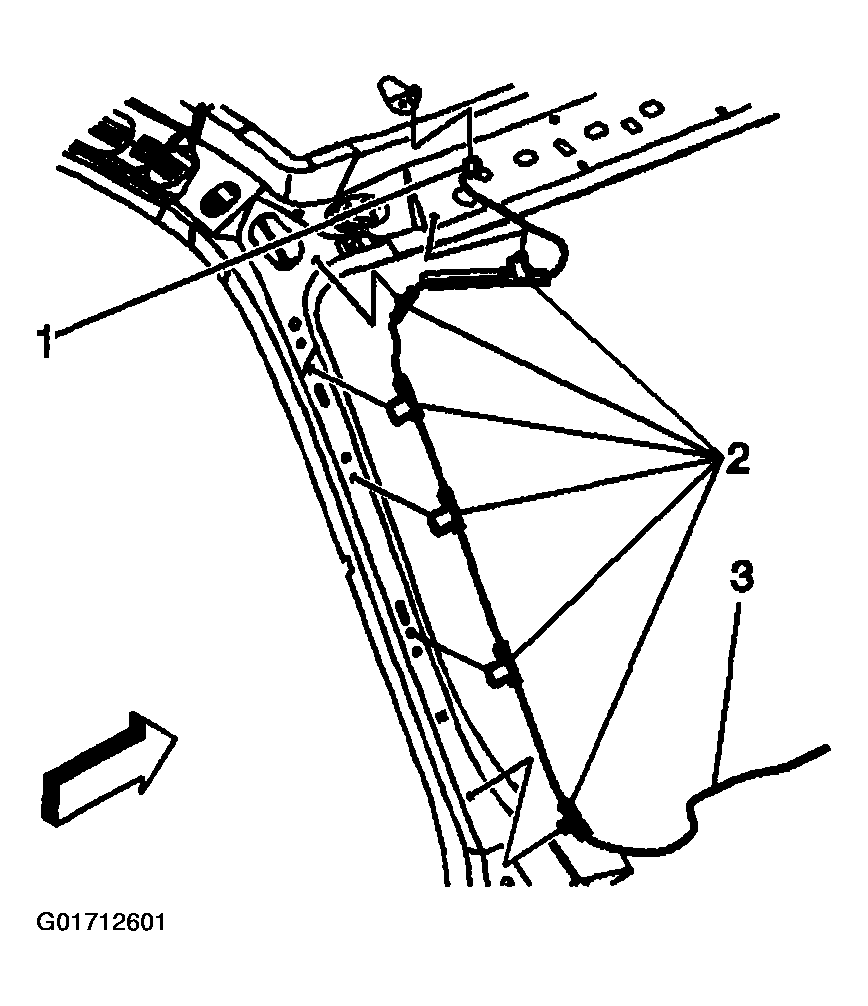

    Fig 1: Cellular Telephone Coaxial Cable Replacement
    G01712601Courtesy of GENERAL MOTORS CORP.
