Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trim panel.
  2. Remove the speaker by pushing down on the top retainer.

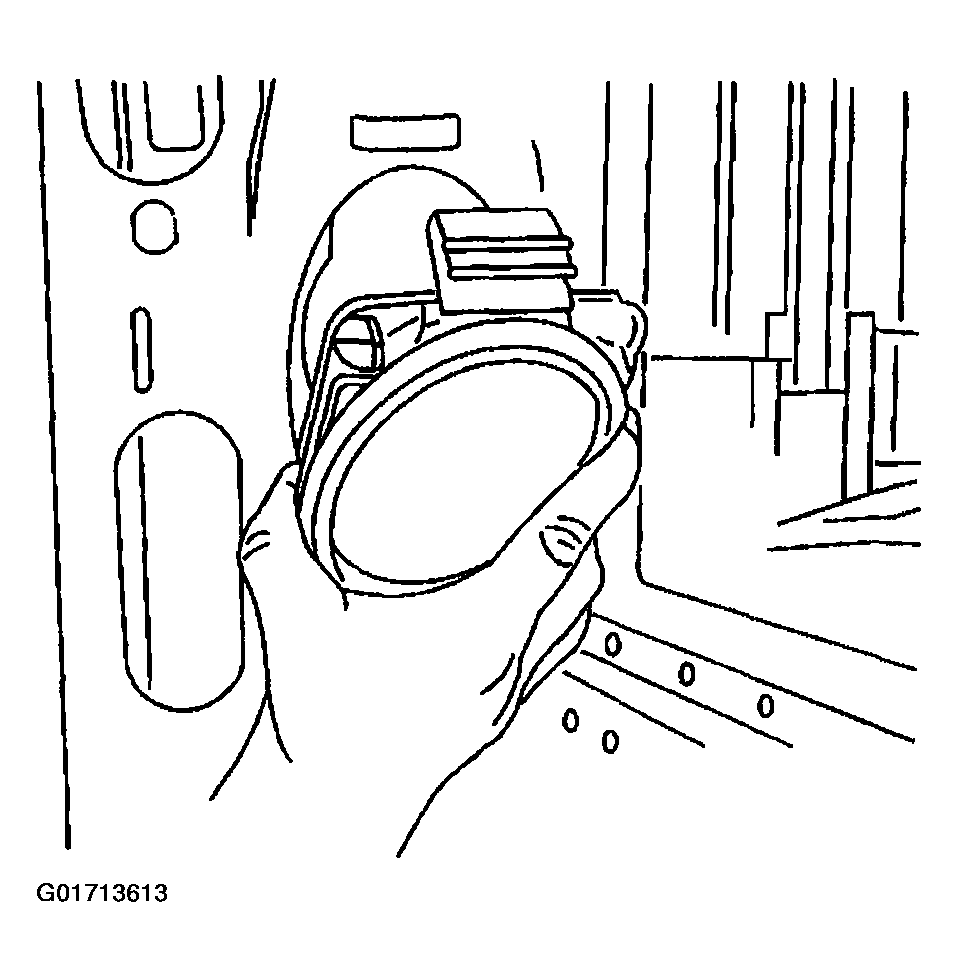

    Fig 1: Rear Pillar Speaker
    G01713613Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the electrical connector and remove the speaker.
