Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the center console bezel. Refer to BEZEL REPLACEMENT - FLOOR CONSOLE (LUXURY) .
  2. Remove the speaker retaining nuts (1).
  3. Disconnect the wire connector (2).
  4. Remove the speaker from the console.

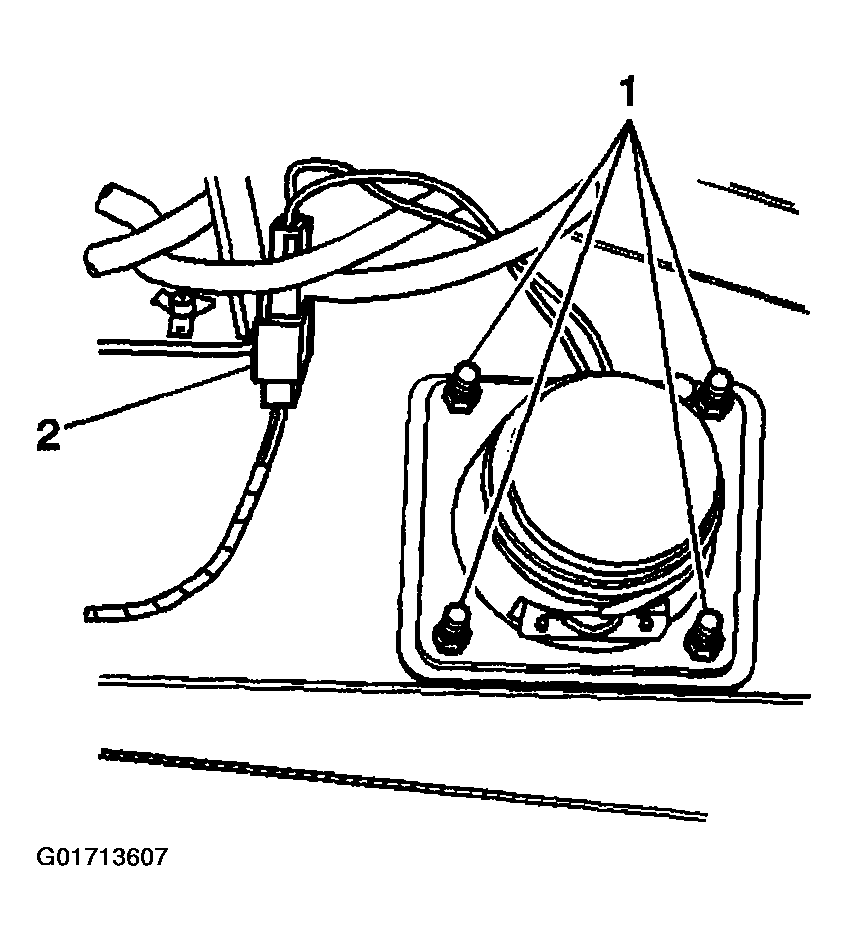

    Fig 1: Removing Speaker From Console
    G01713607Courtesy of GENERAL MOTORS CORP.
