Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat audio controls from the console. Pry gently with a flat bladed tool to disengage the retainers.
  2. Disconnect the electrical connectors from the rear seat audio controls.

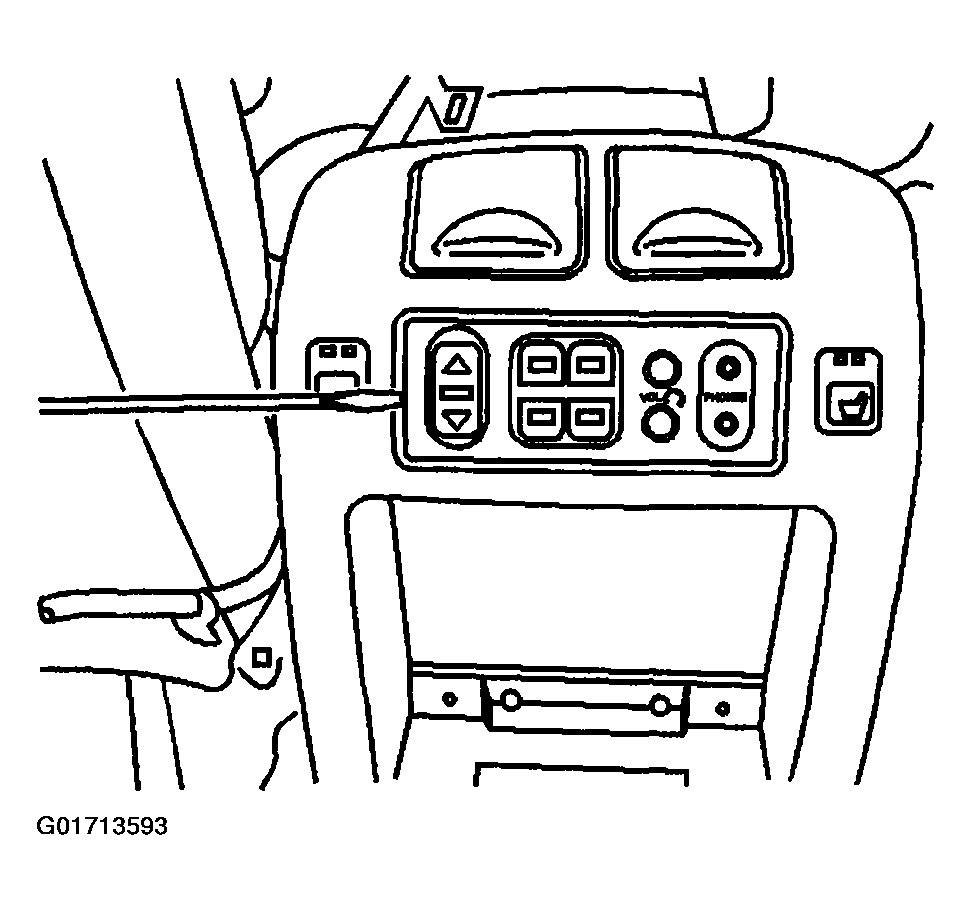

    Fig 1: Audio Control Replacement - Rear Seat
    G01713593Courtesy of GENERAL MOTORS CORP.
