Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the battery and battery tray from the vehicle.
  2. Remove the inner wheel housing from the vehicle.
  3. Disconnect the electrical connector from the washer pump.
  4. Disconnect the electrical connector from the washer solvent level sensor.
  5. Disconnect the washer hose from the washer pump.
  6. Remove the upper bolt from the washer solvent container.

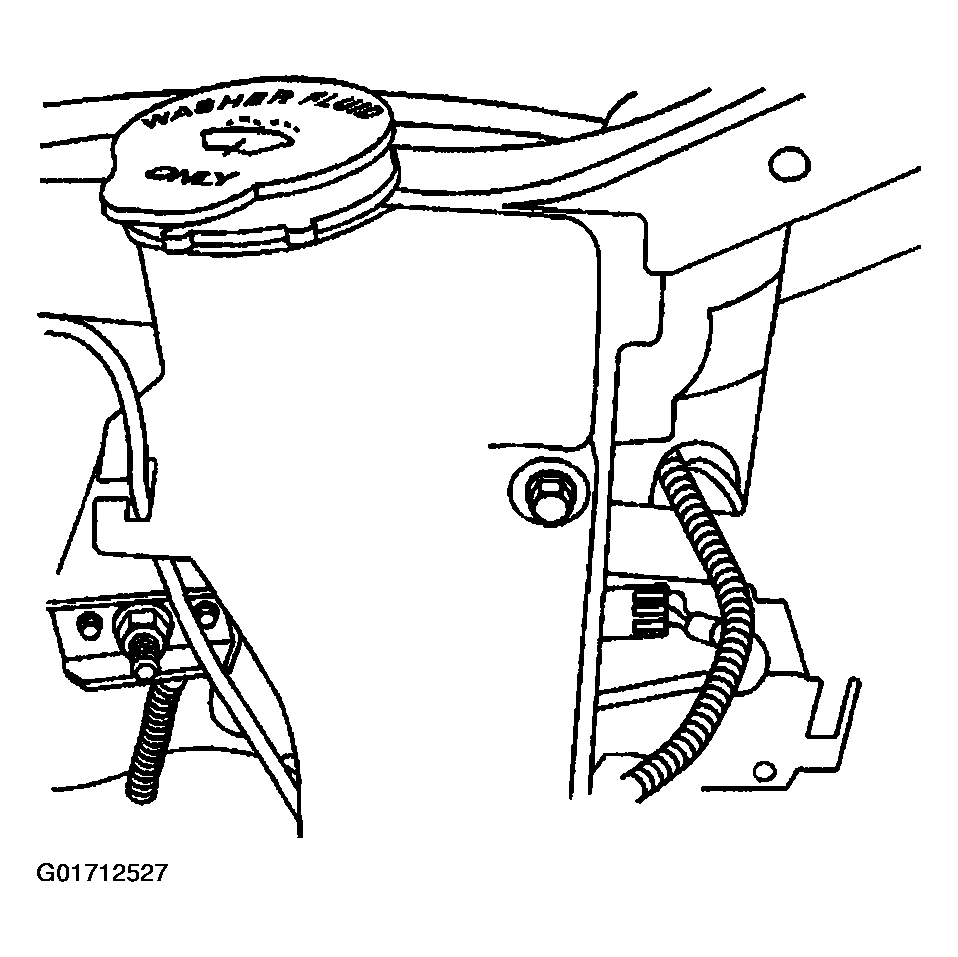

    Fig 1: Washer Pump/Reservoir
    G01712527Courtesy of GENERAL MOTORS CORP.
  7. Remove the lower bolts from the washer solvent container.
  8. Remove the washer solvent container from the vehicle.

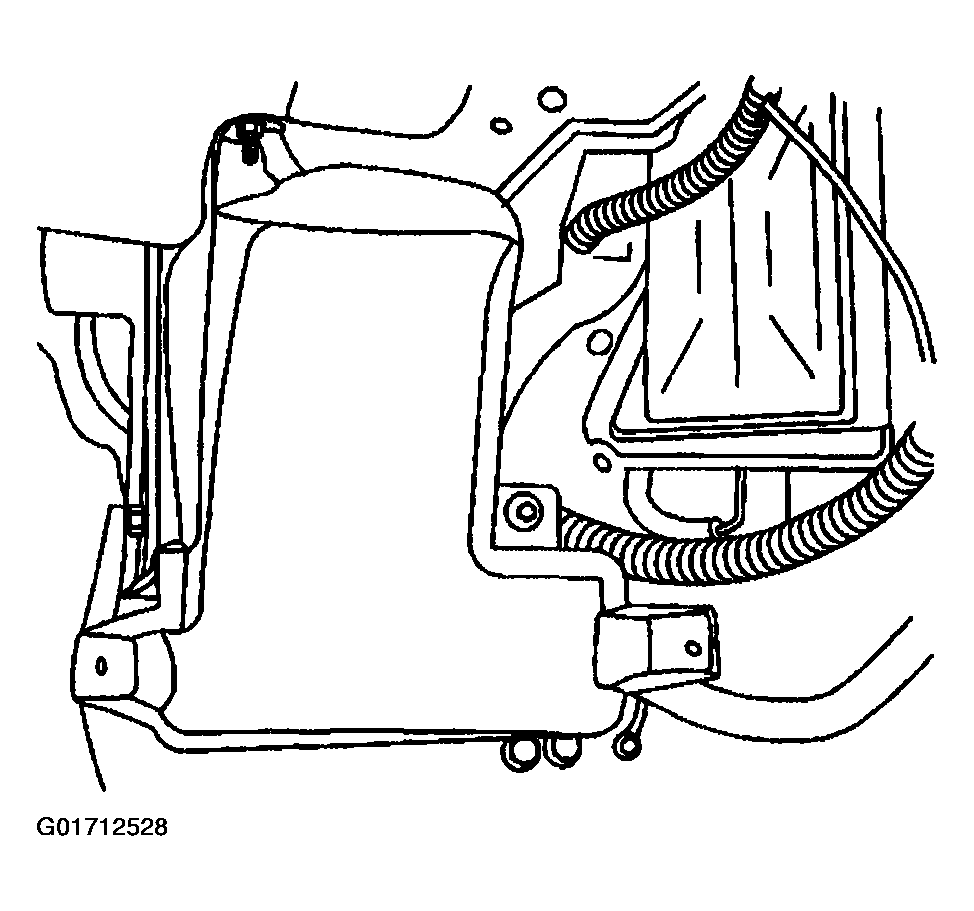

    Fig 2: Washer Solvent Container
    G01712528Courtesy of GENERAL MOTORS CORP.
