Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connector.
  2. Squeeze the lower tab. Remove the underhood lamp from the hood.

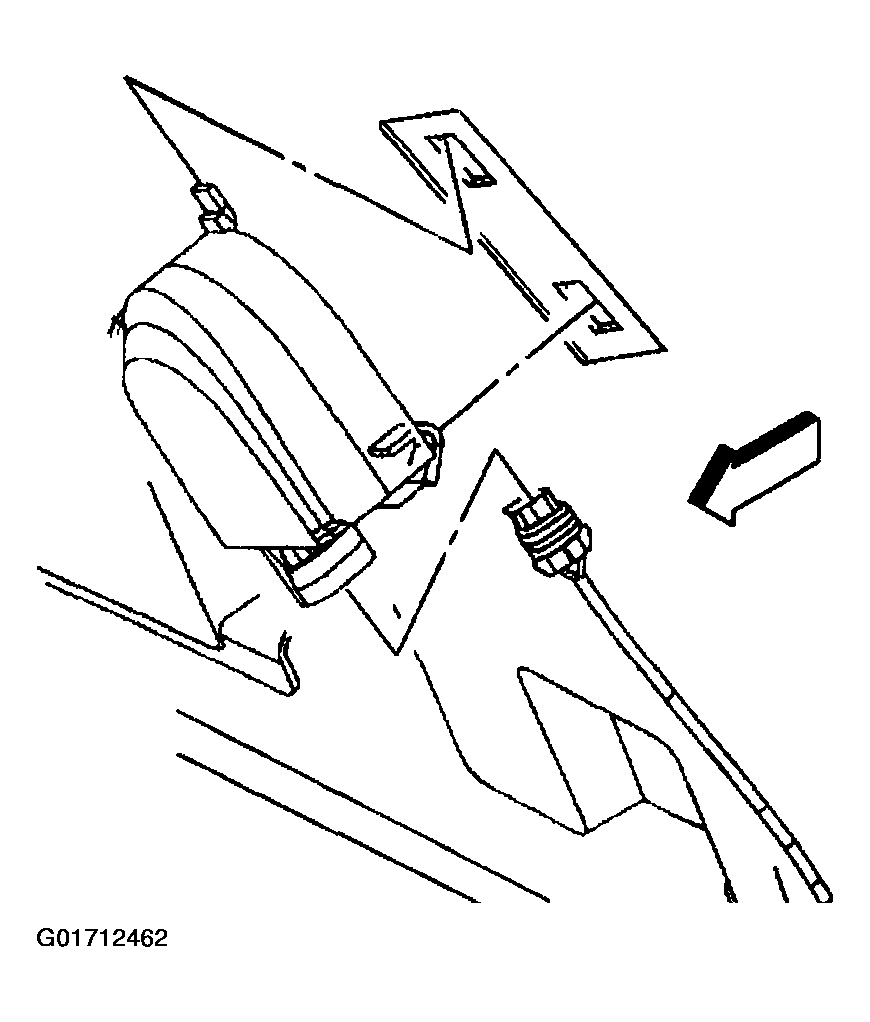

    Fig 1: Underhood Lamp Replacement
    G01712462Courtesy of GENERAL MOTORS CORP.
  3. Remove the lens cover. Use a small screw driver in order to pry the cover off.
    Fig 2: Underhood Lamp Lens Cover
    G01712463Courtesy of GENERAL MOTORS CORP.
  4. Remove the bulb from the socket.
