Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the headlamp switch is in the OFF position.
  2. Lower the end gate.
  3. Remove the screws retaining the tail/turn signal lamp assembly to the body.
  4. Identify the bulb in need of replacement.
  5. Turn the socket assembly and remove the bulb from the housing.

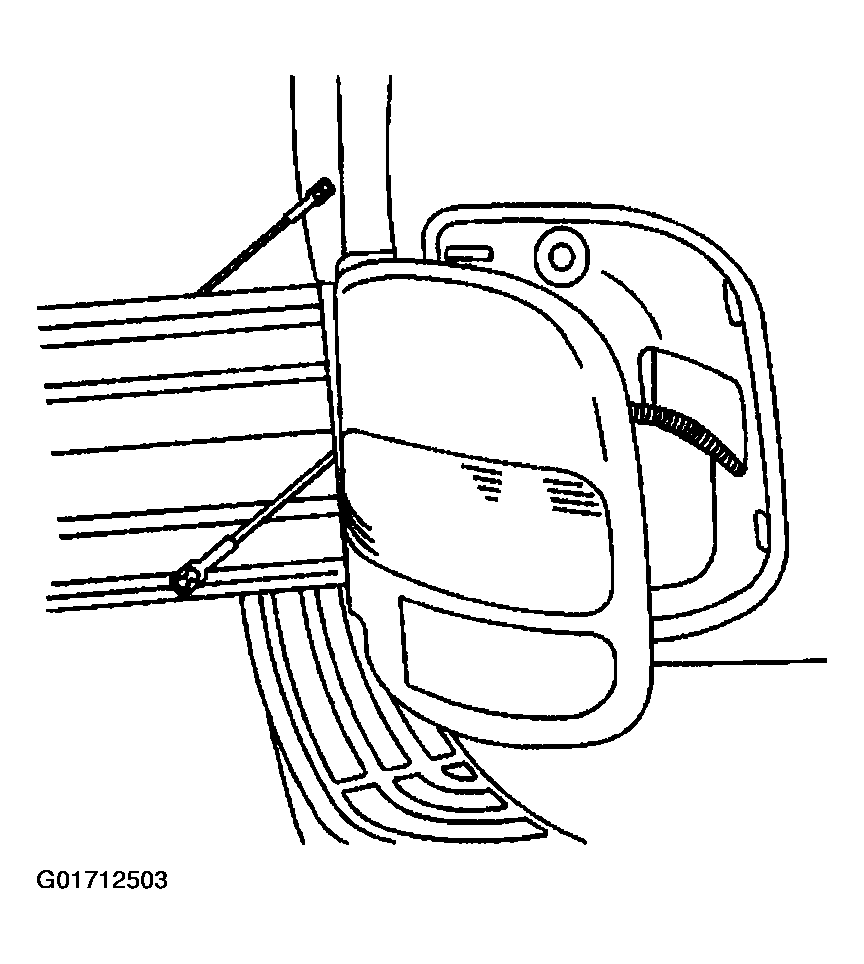

    Fig 1: Tail/Turn Signal Lamp Replacement (Stepside)
    G01712503Courtesy of GENERAL MOTORS CORP.
