Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Ensure the headlamp switch is in the OFF position.
  2. Remove the headlamp. Refer to Headlamp Assembly Or Headlamp Bulb Replacement .
  3. Remove the park/turn signal lamp assembly by pushing on the inboard retainer clip.

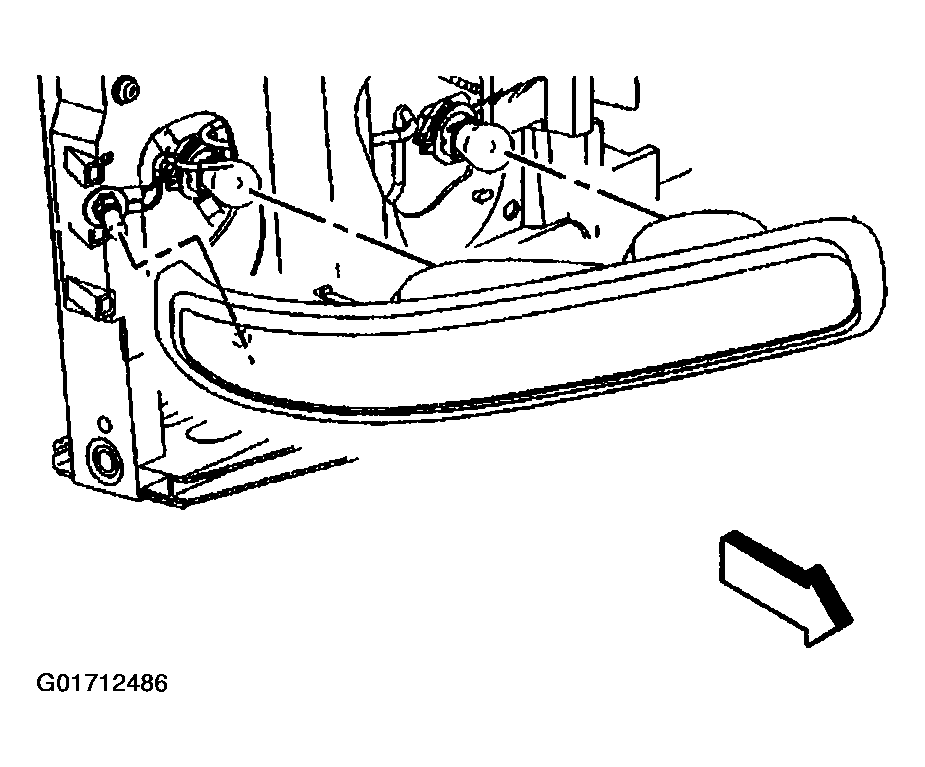

    4. Fig 1: Removing Park/Turn Signal Lamp Assembly
    G01712486Courtesy of GENERAL MOTORS CORP.
  4. Disconnect the electrical connector from the assembly.
