Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the screws from the roof marker lamp lens.
  2. Remove the roof marker lamp lens.
  3. Disconnect the electrical connector from the roof marker lamp.
  4. Remove the lamp assembly.

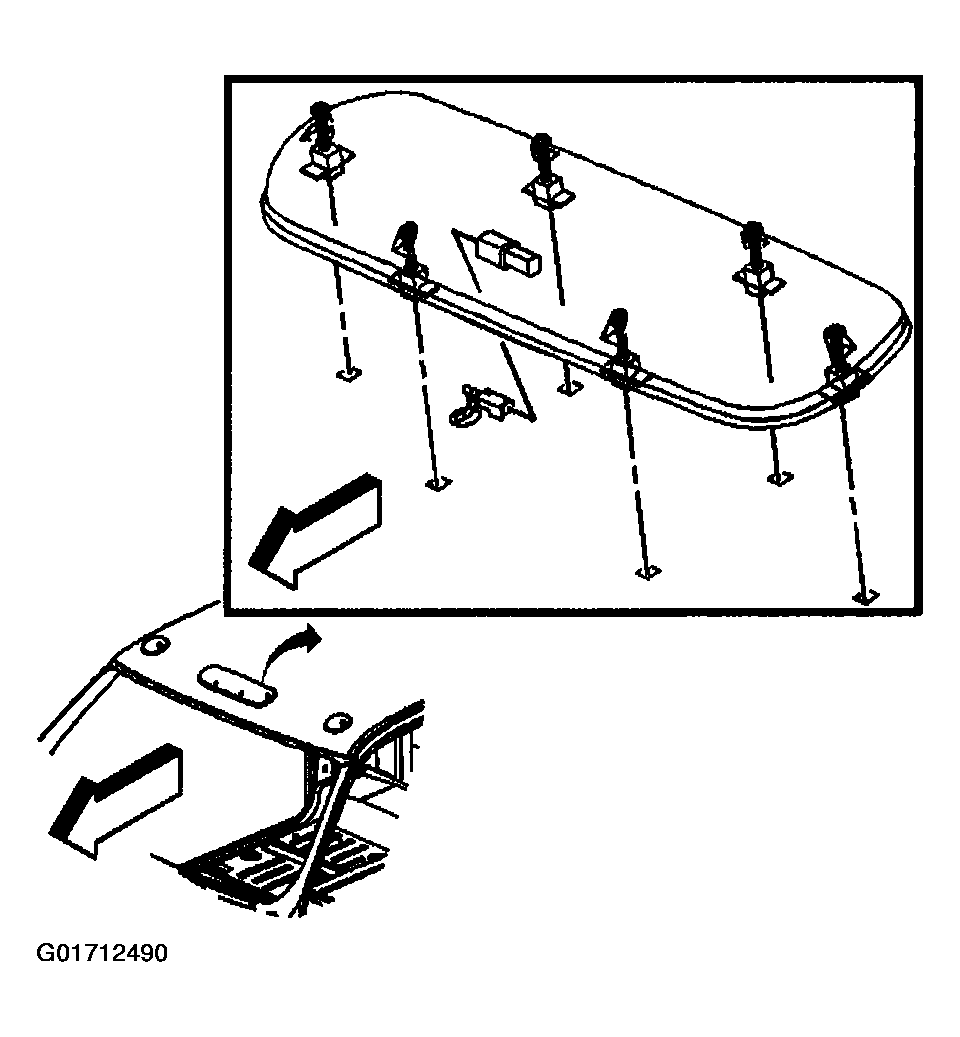

    Fig 1: Center Roof Marker Lamp
    G01712490Courtesy of GENERAL MOTORS CORP.
