Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster bezel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .
  2. Remove the fog lamp switch and cargo switch from the housing.
  3. Disconnect the electrical connector(s) from the fog lamp switch.
  4. Remove the fog lamp and cargo lamp switch from the housing.

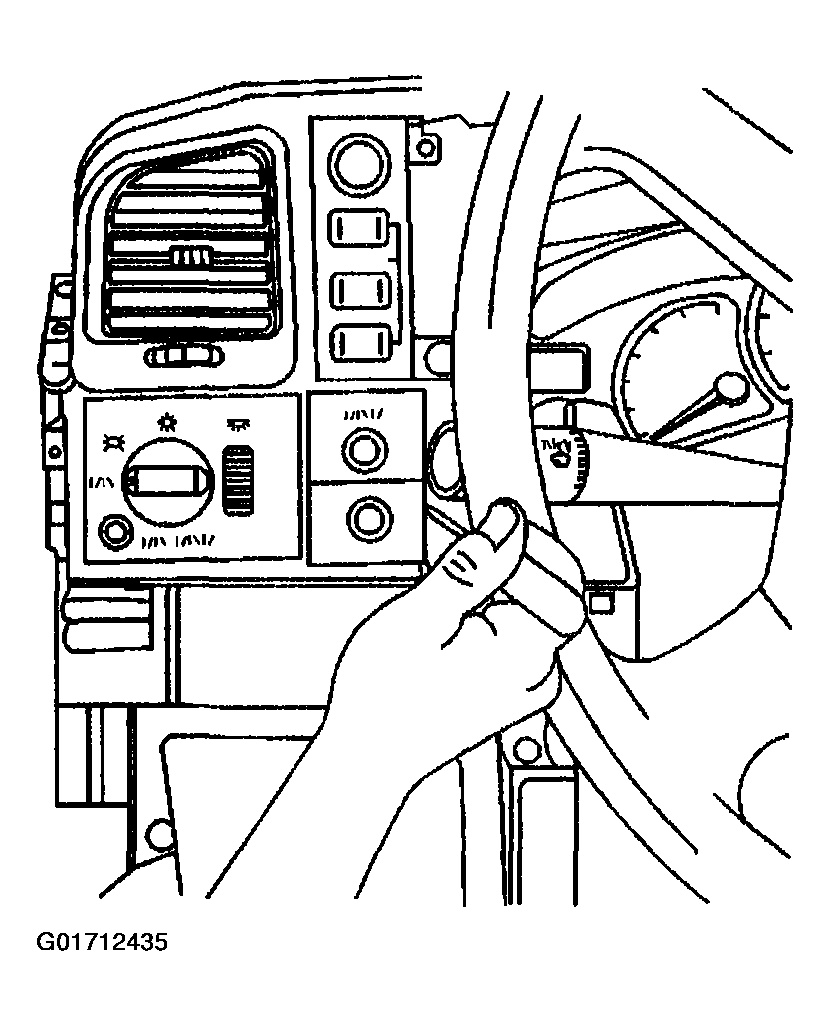

    Fig 1: Fog Lamp & Cargo Lamp Switches
    G01712435Courtesy of GENERAL MOTORS CORP.
