Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the knee bolster. Refer to KNEE BOLSTER REPLACEMENT (NON-LUXURY) or KNEE BOLSTER REPLACEMENT (LUXURY) .
  2. On the back side of the fuse block release the retainer while pulling the flasher (1) outwards.
  3. Remove the flasher (1) from the fuse block.

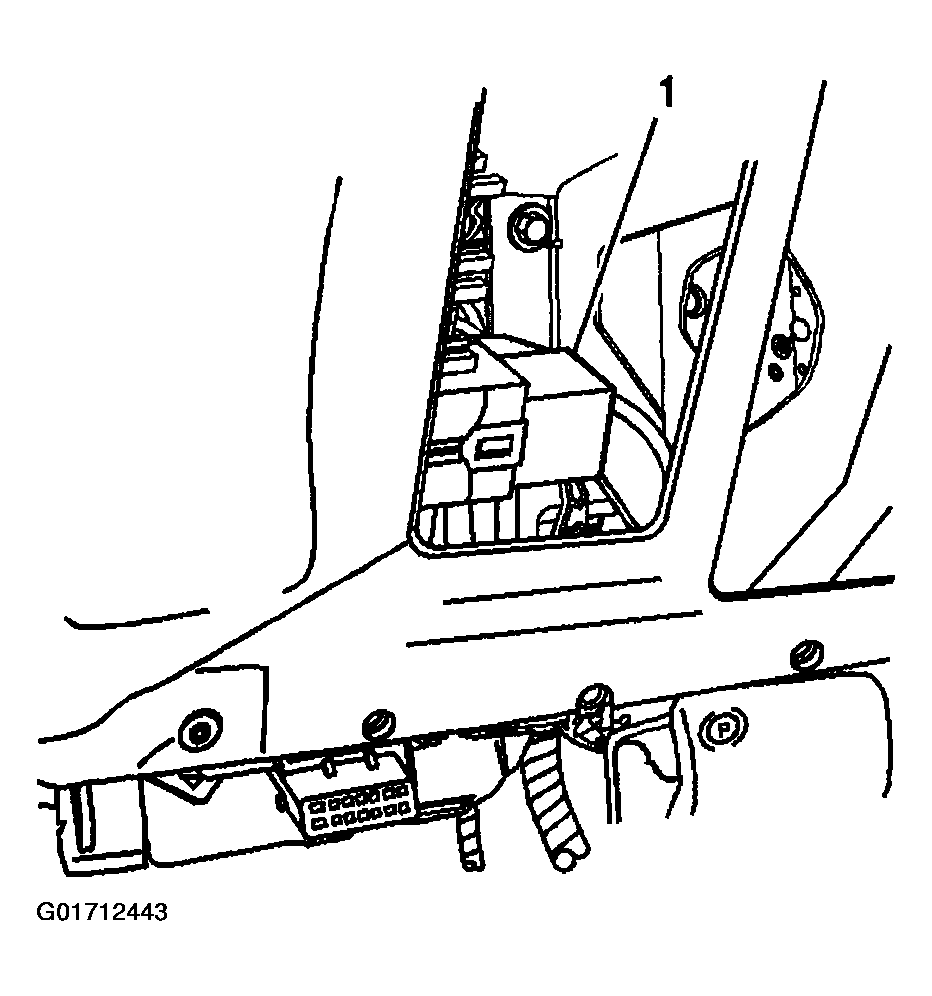

    Fig 1: Locating Hazard & Turn Signal Flasher
    G01712443Courtesy of GENERAL MOTORS CORP.
