Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the electrical connector.
  2. Remove the bulb from the fog lamp assembly by twisting the bulb counterclockwise and pulling the bulb out.

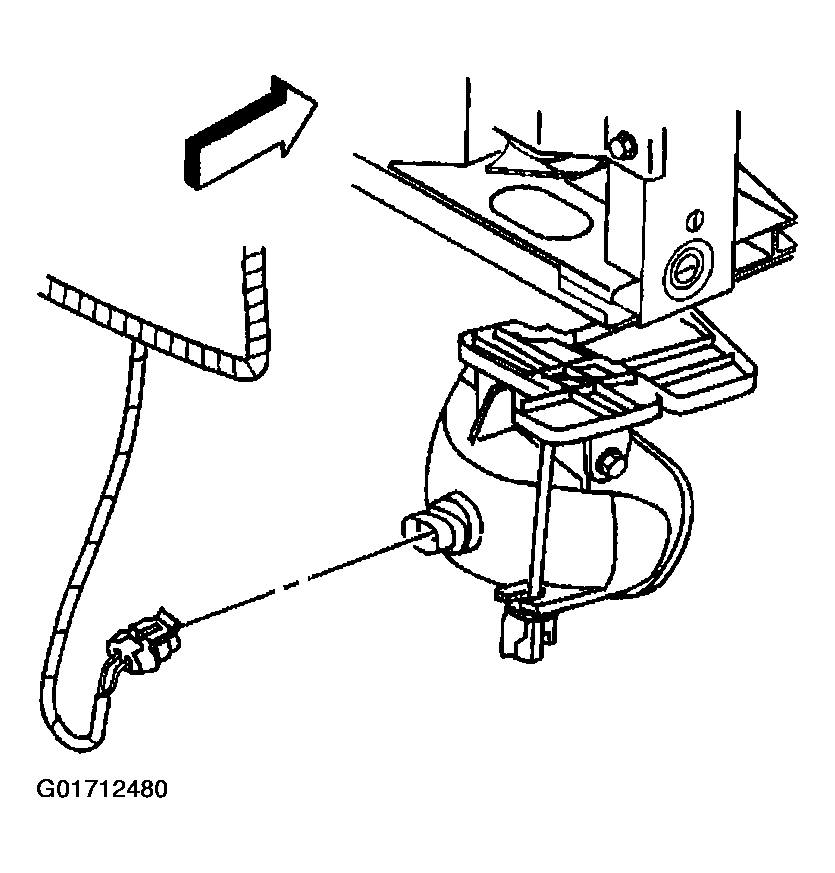

    Fig 1: Fog Lamp Bulb Replacement - Front
    G01712480Courtesy of GENERAL MOTORS CORP.
