Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the electrical center cover (2).
  2. Using the relays/fuses diagram, locate the DRL relay.
  3. Remove the relay from the underhood electrical center.

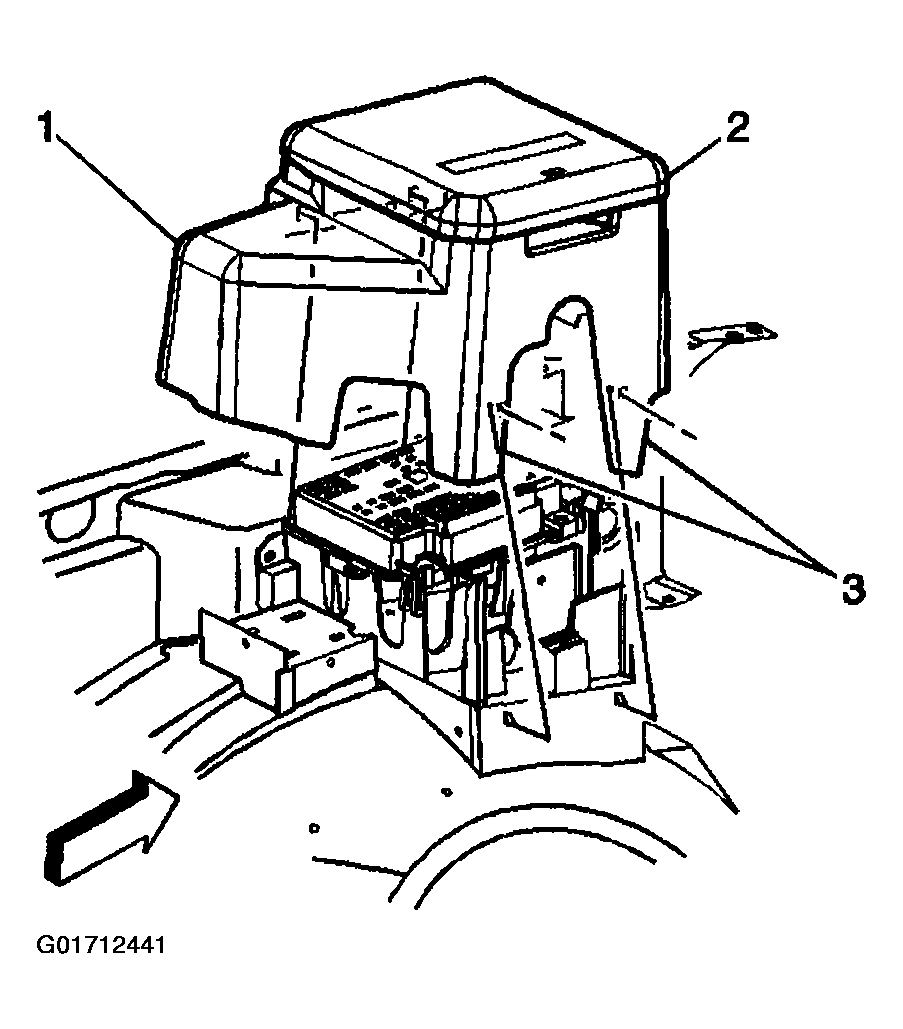

    Fig 1: Underhood Electrical Center
    G01712441Courtesy of GENERAL MOTORS CORP.
