Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use a flat-bladed tool in order to pry off the exterior courtesy lamp assembly.
  2. Disconnect the electrical wires.

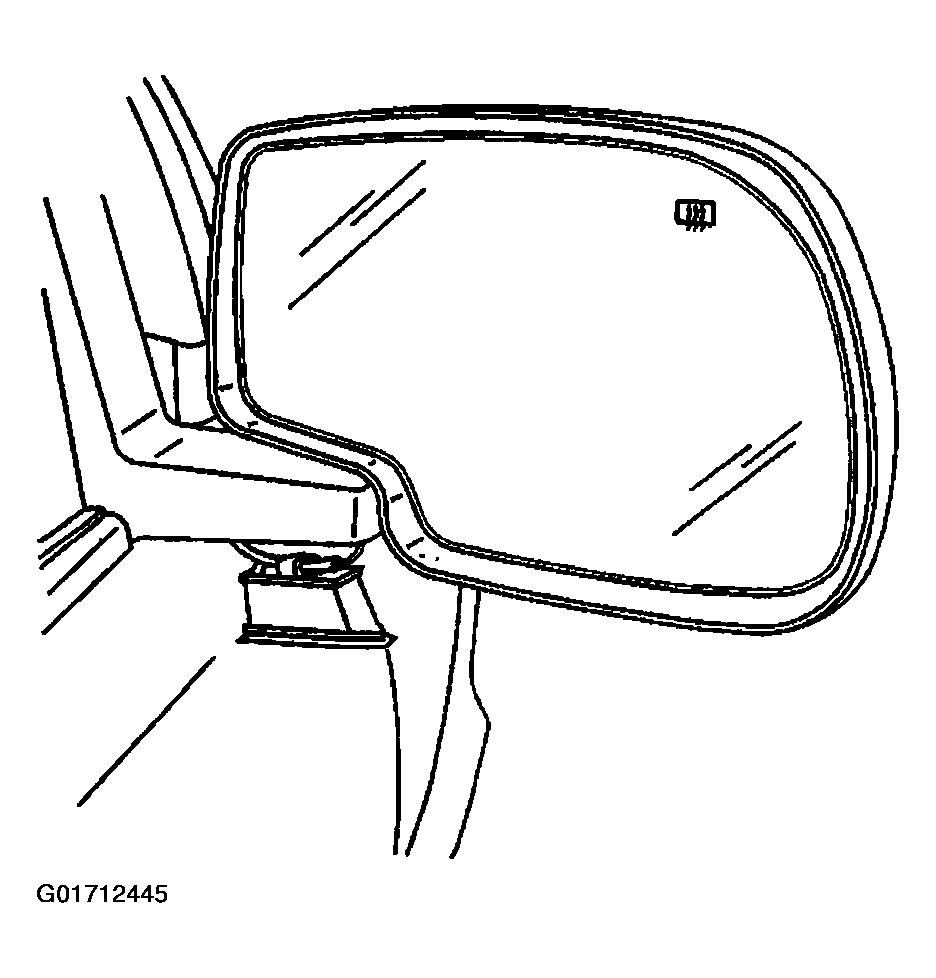

    Fig 1: Exterior Courtesy Lamp Assembly
    G01712445Courtesy of GENERAL MOTORS CORP.
  3. Remove the 2 retaining screws.
  4. Remove the bulb.
    Fig 2: Locating Exterior Courtesy Lamp
    G01712446Courtesy of GENERAL MOTORS CORP.
