Reading Lamp(s) Inoperative

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

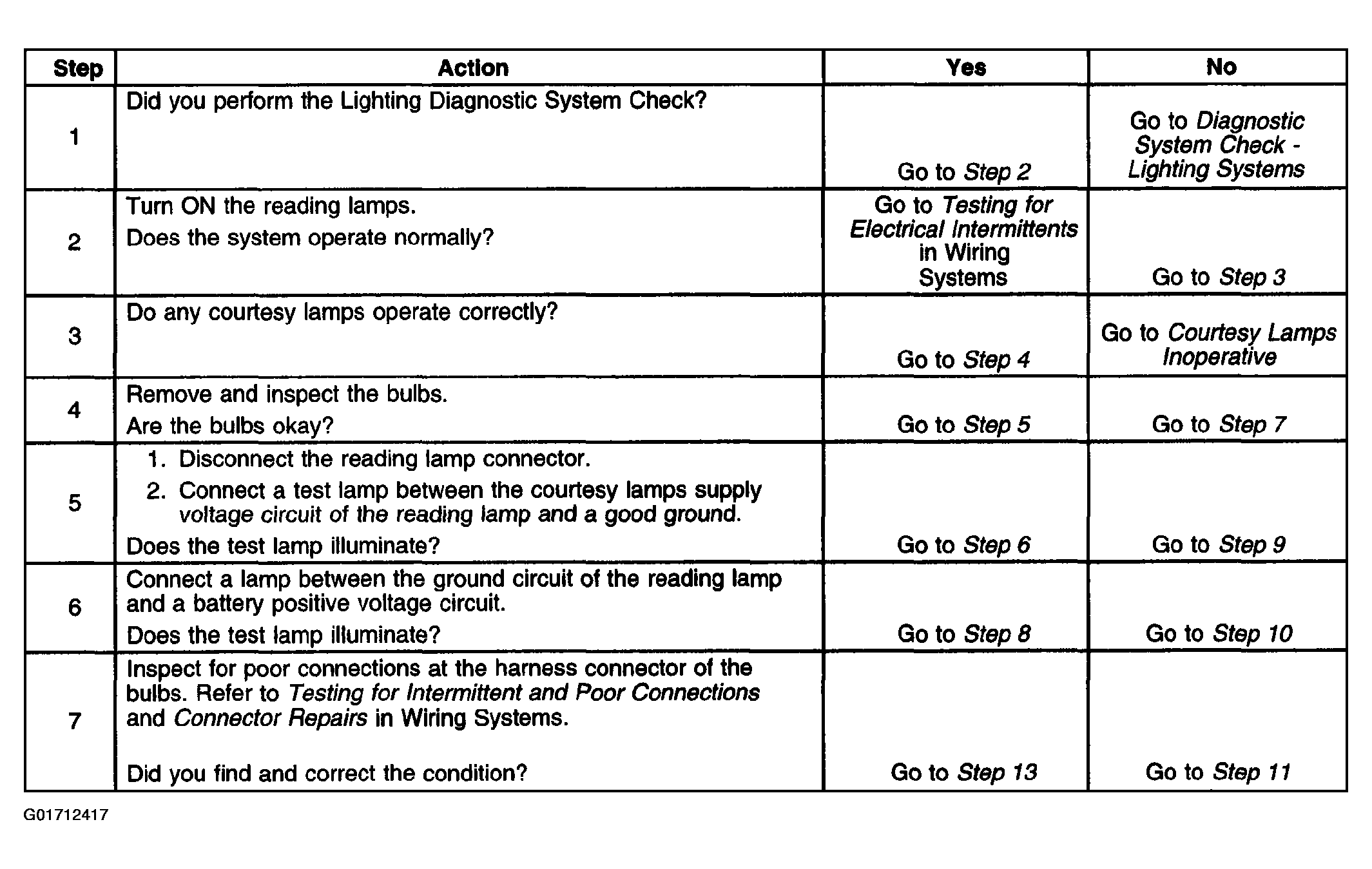

Fig 1: Reading Lamp(s) Inoperative Diagnosis (Steps 1-7)
G01712417Courtesy of GENERAL MOTORS CORP.

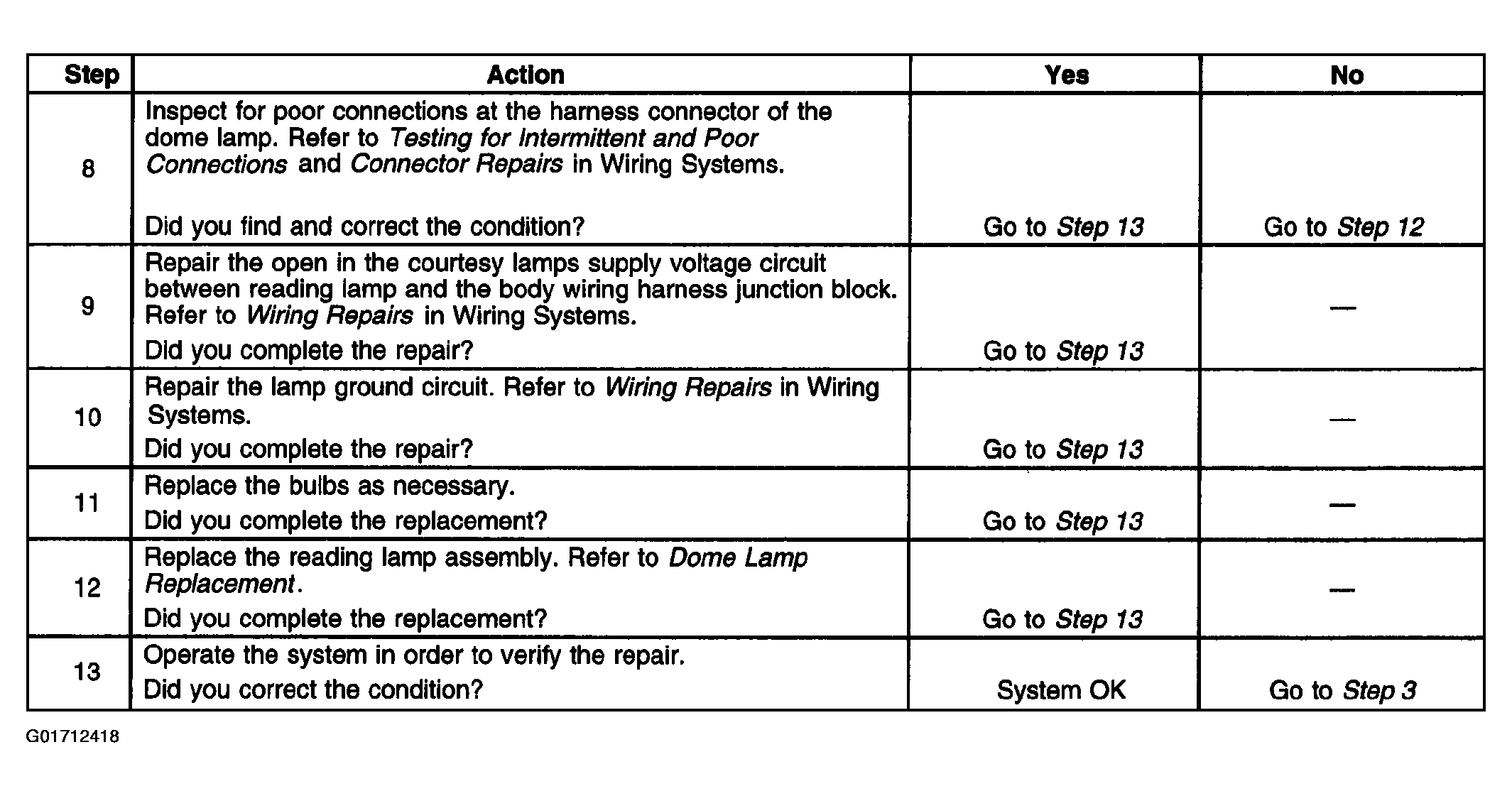

Fig 2: Reading Lamp(s) Inoperative Diagnosis (Steps 8-13)
G01712418Courtesy of GENERAL MOTORS CORP.
