Instrument Panel (I/P) Compartment Lamp Inoperative

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

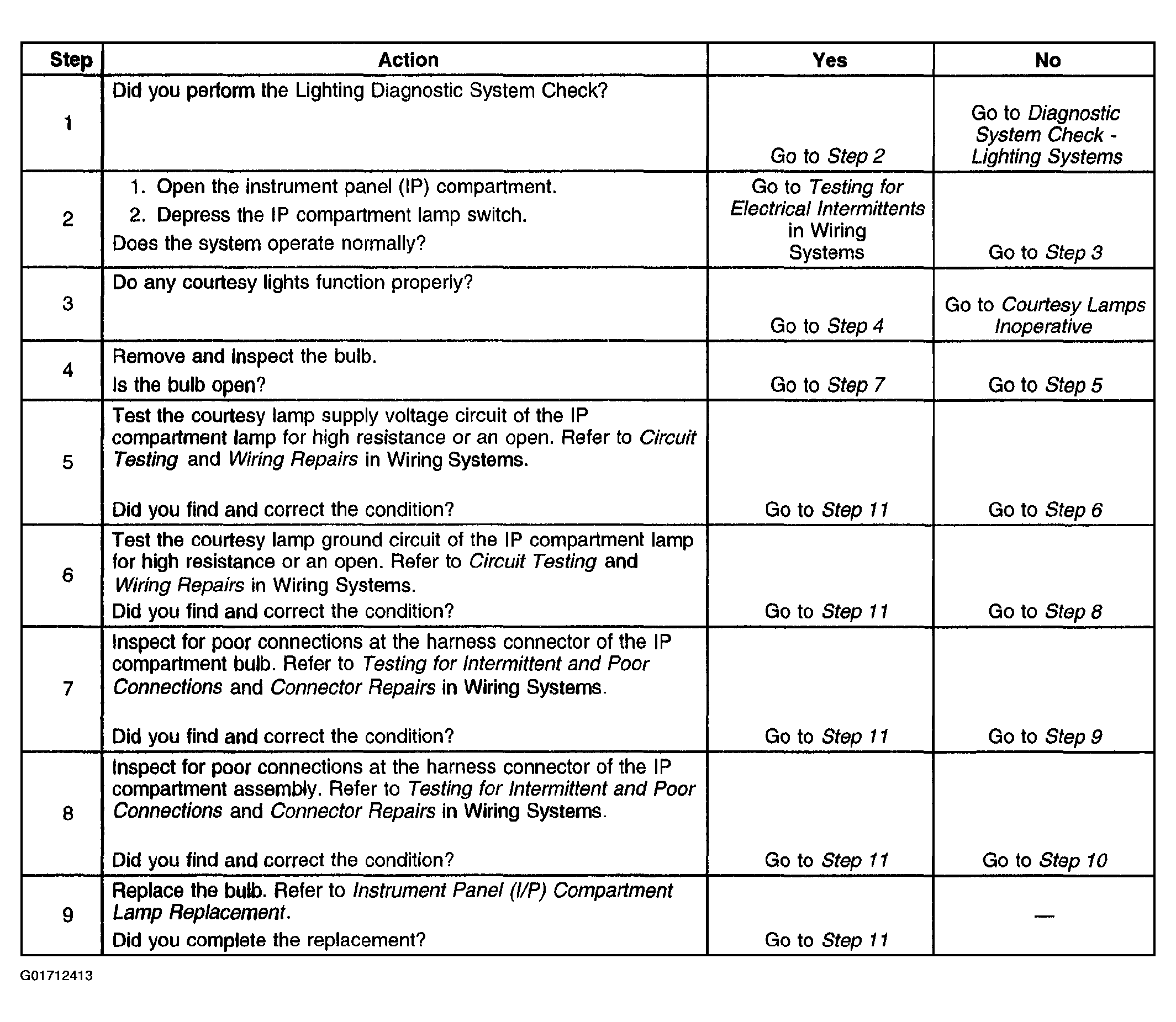

Fig 1: Instrument Panel (I/P) Compartment Lamp Inoperative Diagnosis (Steps 1-9)
G01712413Courtesy of GENERAL MOTORS CORP.

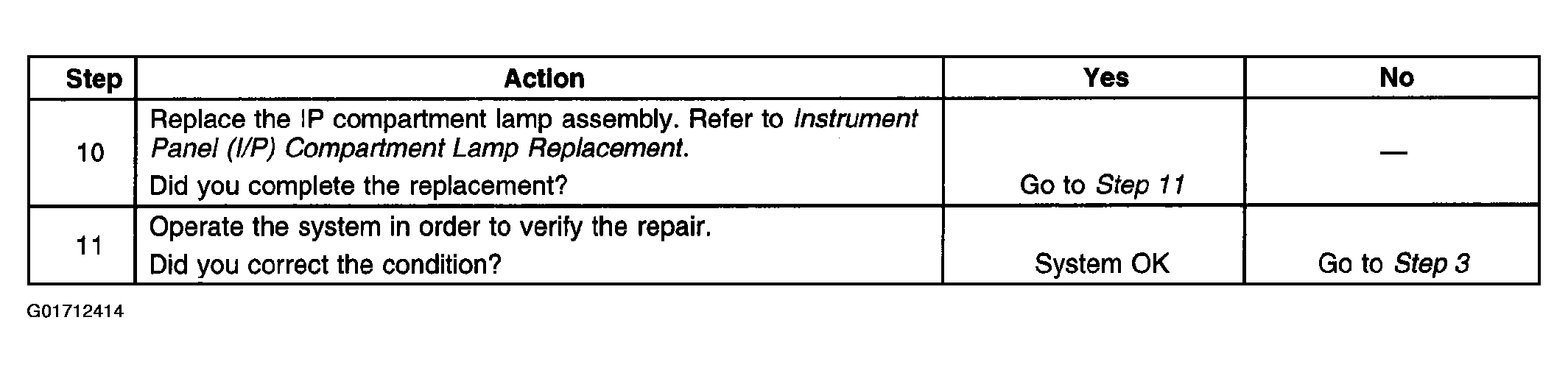

Fig 2: Instrument Panel (I/P) Compartment Lamp Inoperative Diagnosis (Steps 10-11)
G01712414Courtesy of GENERAL MOTORS CORP.
