Vehicle Lifting-Frame Contact Lift

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

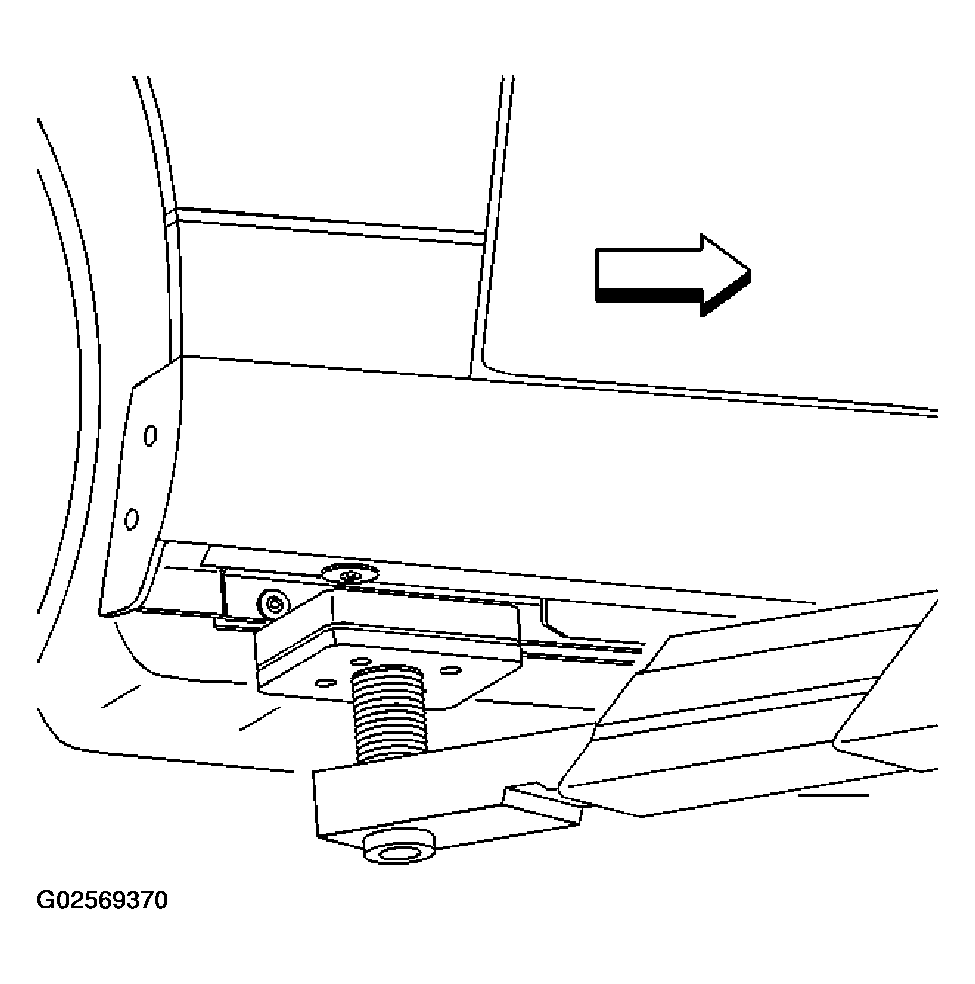

Fig 1: Front Lift Pads

Courtesy of GENERAL MOTORS CORP.

When lifting the vehicle with a frame-contact lift, place the front lift pads at the front pinchweld flanges.

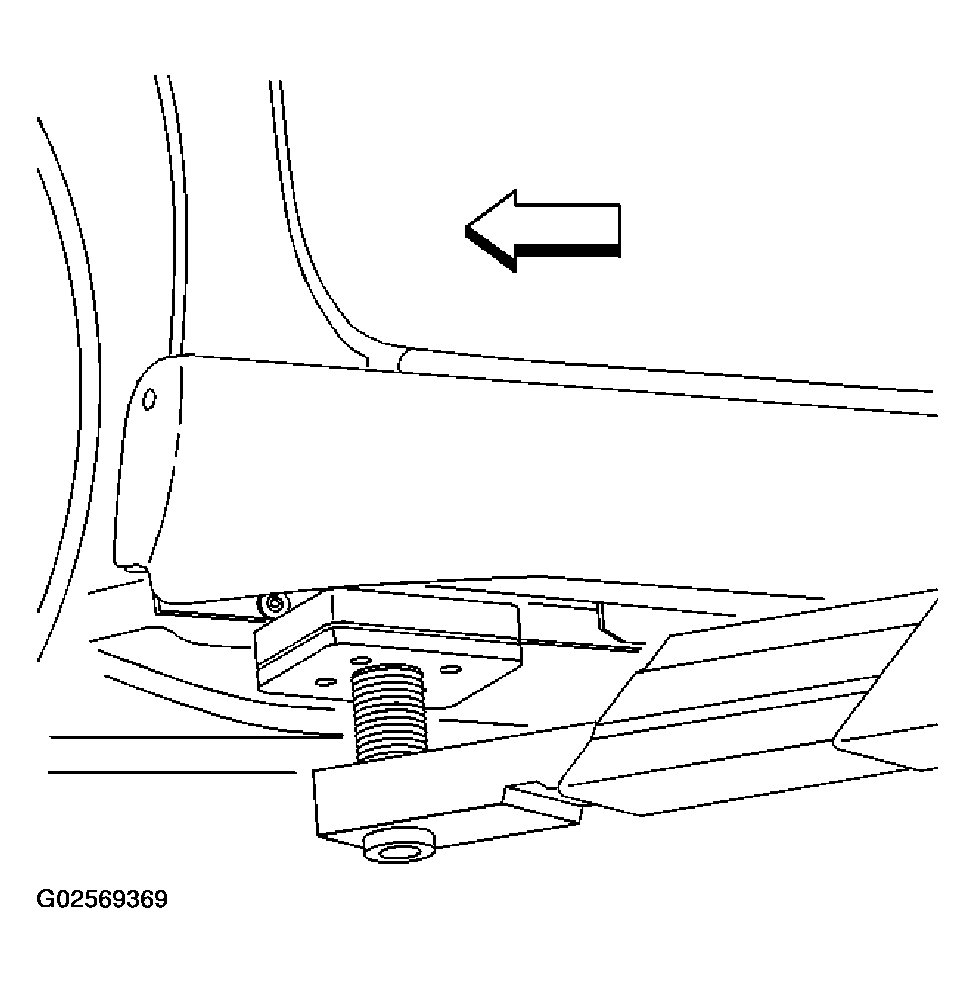

Fig 2: Rear Lift Pads

Courtesy of GENERAL MOTORS CORP.

When lifting the vehicle with a frame-contact lift, place the rear lift pads at the rear pinchweld flanges.
