Removal Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the push-in retainers from the bottom of the rocker molding at the rocker panel, using the J 38778.

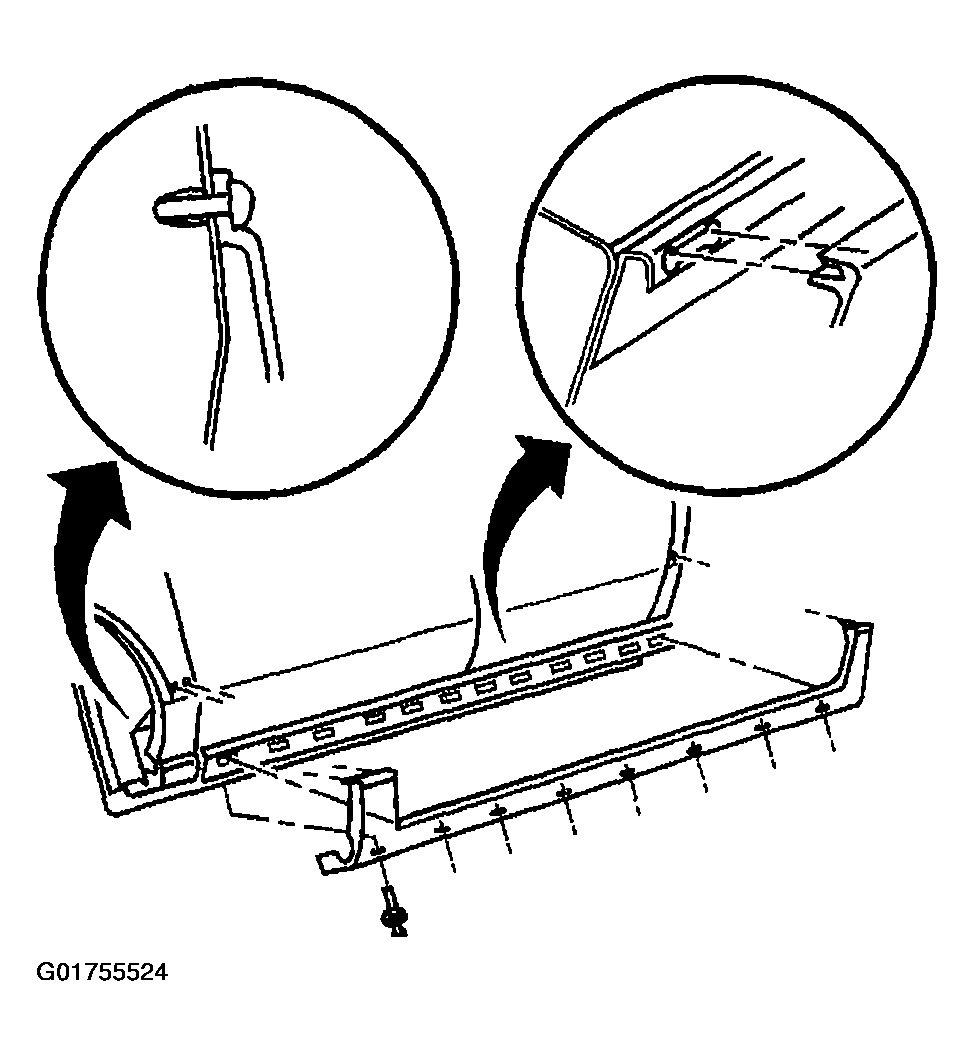

    2. Fig 1: Identifying Rocker Panel Molding
    G01755524Courtesy of GENERAL MOTORS CORP.
  2. Remove the screw from the rocker molding at the front fender wheel opening edge.
  3. Release the retainers from the rocker molding at the front fender.
  4. Release the retainer from the rocker molding at the quarter panel.
  5. Remove the rocker molding by pulling off, from front to the rear.
    CAUTION: Refer to SAFETY GLASSES CAUTION .
  6. Drill the rivets from the rocker molding support using a 6.0 mm (0.236 in) drill bit.
    7. Fig 2: Identifying Rocker Molding Support Rivets
    G01755525Courtesy of GENERAL MOTORS CORP.
  7. Remove the rocker molding support from the rocker panel.
