Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the rocker molding support to the first front hole in the rocker panel.
    2. Fig 1: Identifying Rocker Molding Supports
    G01755526Courtesy of GENERAL MOTORS CORP.
  2. Install the rivet to the first front hole in the rocker panel molding support.
  3. Install the rivet to the last rear hole in the rocker panel molding support.
  4. Install the remainder of the rivet to the rocker panel molding support.
  5. Align the rocker panel molding to the rocker panel.

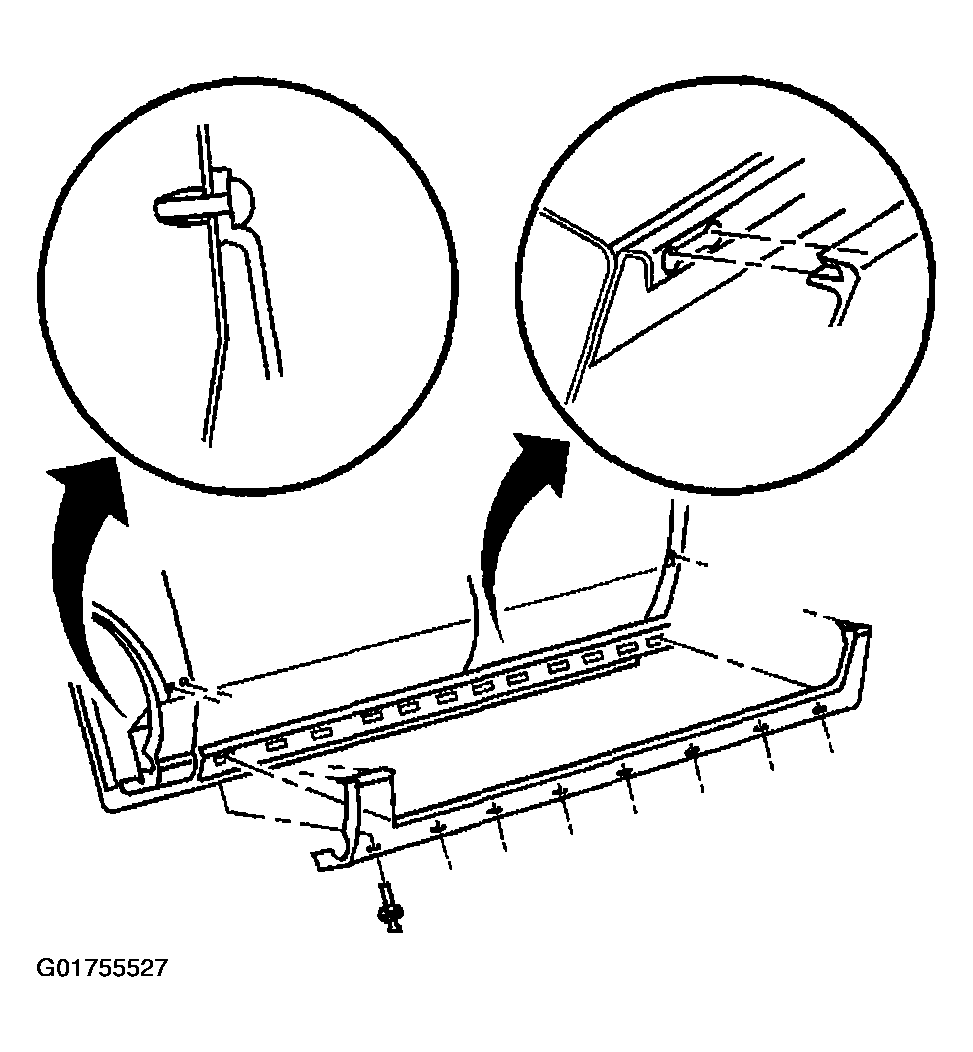

    6. Fig 2: Identifying Rocker Panel Molding
    G01755527Courtesy of GENERAL MOTORS CORP.
  6. Install the tabs to the rocker molding support.
  7. Install the rocker panel molding retainers to the front fender.
  8. Install the rocker panel molding retainers to the quarter panel.
  9. Install the push-in retainers to the bottom of the rocker panel molding.
    NOTE: Refer to FASTENER NOTICE .
  10. Install the screw from the rocker molding at the front fender wheel opening edge. Tighten the screw to 2 N.m (18 lb in).
