Installation Procedure

WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the lower door molding support to the holes in the door panel.

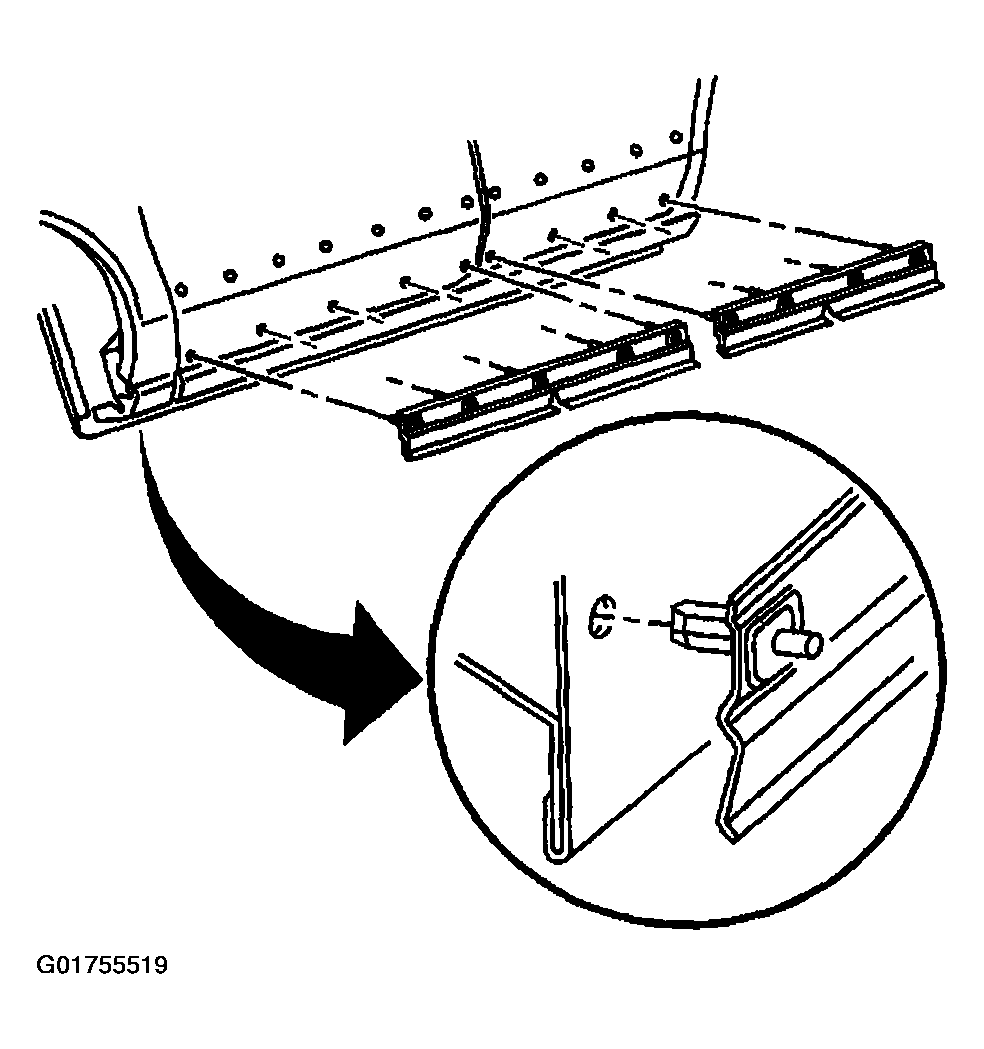

    2. Fig 1: Identifying Door Lower Molding Supports
    G01755519Courtesy of GENERAL MOTORS CORP.
  2. Install the lower door molding support retainers to the lower door molding support.
  3. Press in the center pins of the lower door molding support until fully seated.

    Important:  The door must be open during molding installation.

  4. Position the bottom flange of the lower door molding behind the lower edge of the lower door moldings support.

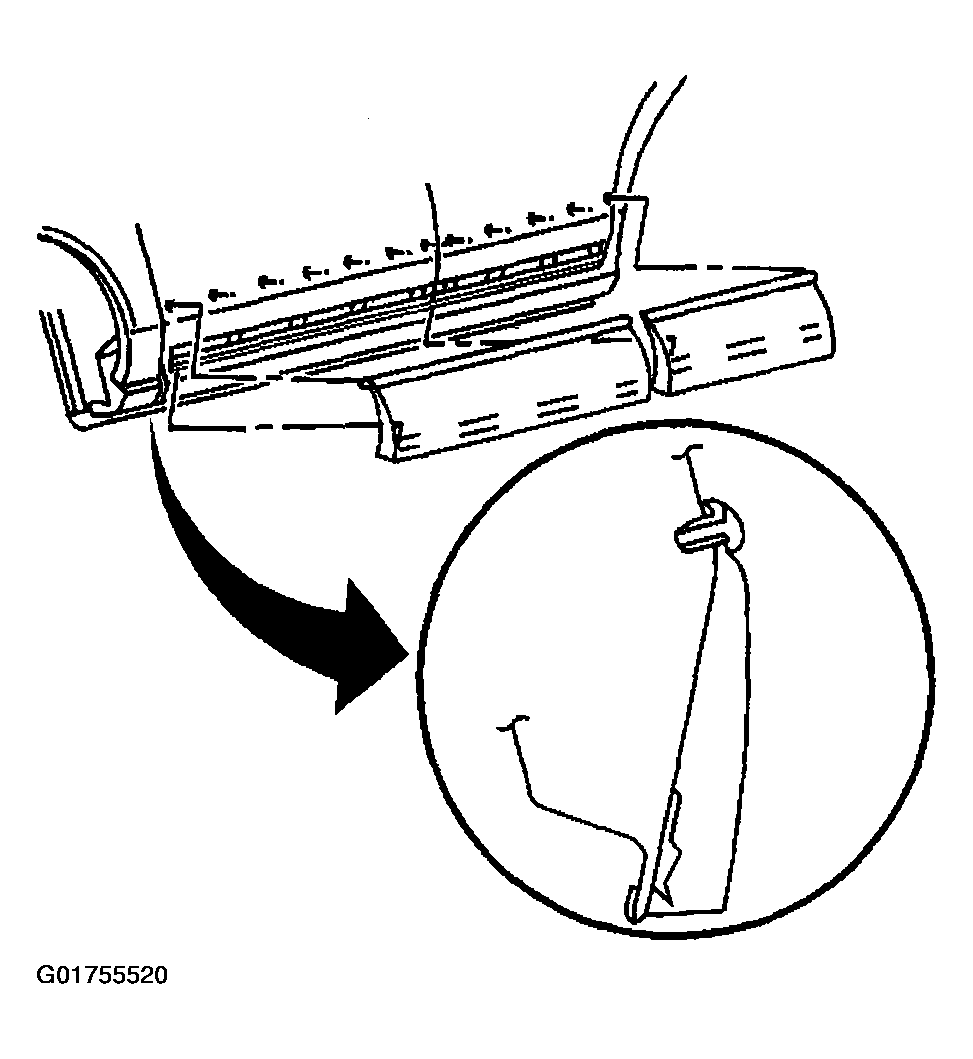

    5. Fig 2: Identifying Door Lower Molding
    G01755520Courtesy of GENERAL MOTORS CORP.
  5. Align the lower door moldings upper retainers to the holes in the door panel.
  6. Press the lower door moldings upper retainers into the holes working from the front to the rear, until the retainers are fully seated.
