Installation Procedure
WARNING: This page is about a different car, the 2002 Buick Regal and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
Important: Apply the emblem/nameplate in an environment that is free from dust or other dirt that could come into contact with the sticky backing. Foreign material may cause improper adhesion.
- Clean the area where the emblem/nameplate will be installed.
Use a lint free cloth and Varnish Makers and Painters (VMP) naphtha or a 50/50 mixture by volume of isopropyl alcohol and water to clean the area.
- Dry the area thoroughly.
- If the location of the emblem/nameplate has not been marked, apply tape and mark the location as shown below.

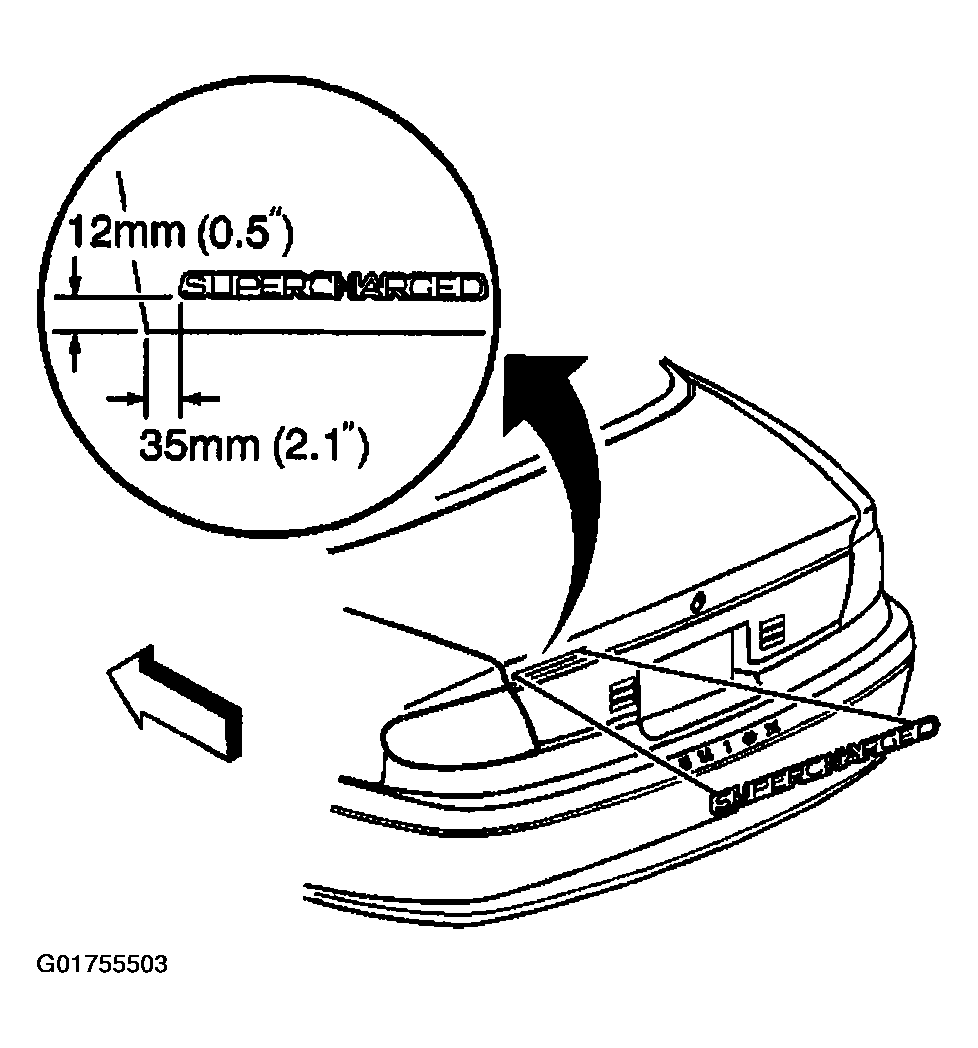

- For the SUPERCHARGED emblem/nameplate install as shown.
- For the GS emblem/nameplate install to the following dimensions:
- Dimension (a) is 85.725 mm (3.375 in) from the bottom edge of the rear compartment lid to the bottom of the emblem/nameplate.
- Dimension (b) is 31.750 mm (1.250 in) from the right edge of the rear compartment lid to the edge of the emblem/nameplate.

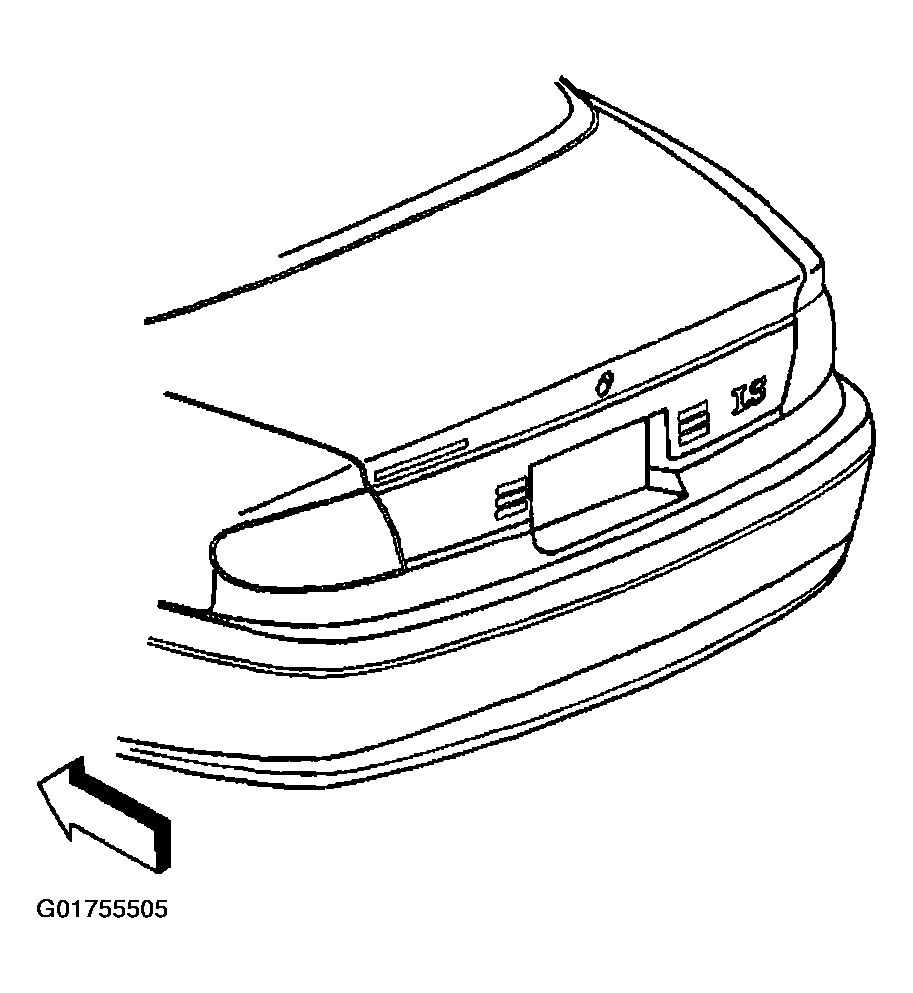

- For the LS emblem/nameplate install as shown.
- Heat the mounting surface to approximately 27-41°C (80-105°F) using the J 25070 , if necessary.
- Ensure that the temperature of the emblem/nameplate is approximately 29-32°C (85-90°F).
Important: Do not touch the adhesive backing on the emblem/nameplate.
- Remove the protective liner from the back of the emblem/nameplate.
- Position the emblem/nameplate to the location marks and press the emblem/nameplate to the mounting surface.
- Apply equal pressure along the emblem/nameplate in order to uniformly bond the item to the mounting surface.
- Remove the protective tape from the mounting surface.
