Diagnostic Aids

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Important: The DIM must be replaced if this DTC is retrieved from the DIM as either a current or history DTC.

For modules other than the DIM:

This DTC may be retrieved as a history DTC without affecting the operation of the module. If the DTC is retrieved as a history DTC and not retrieved as a current DTC, do not replace the module.
If this DTC is retrieved as both a current and history DTC, replace the module.

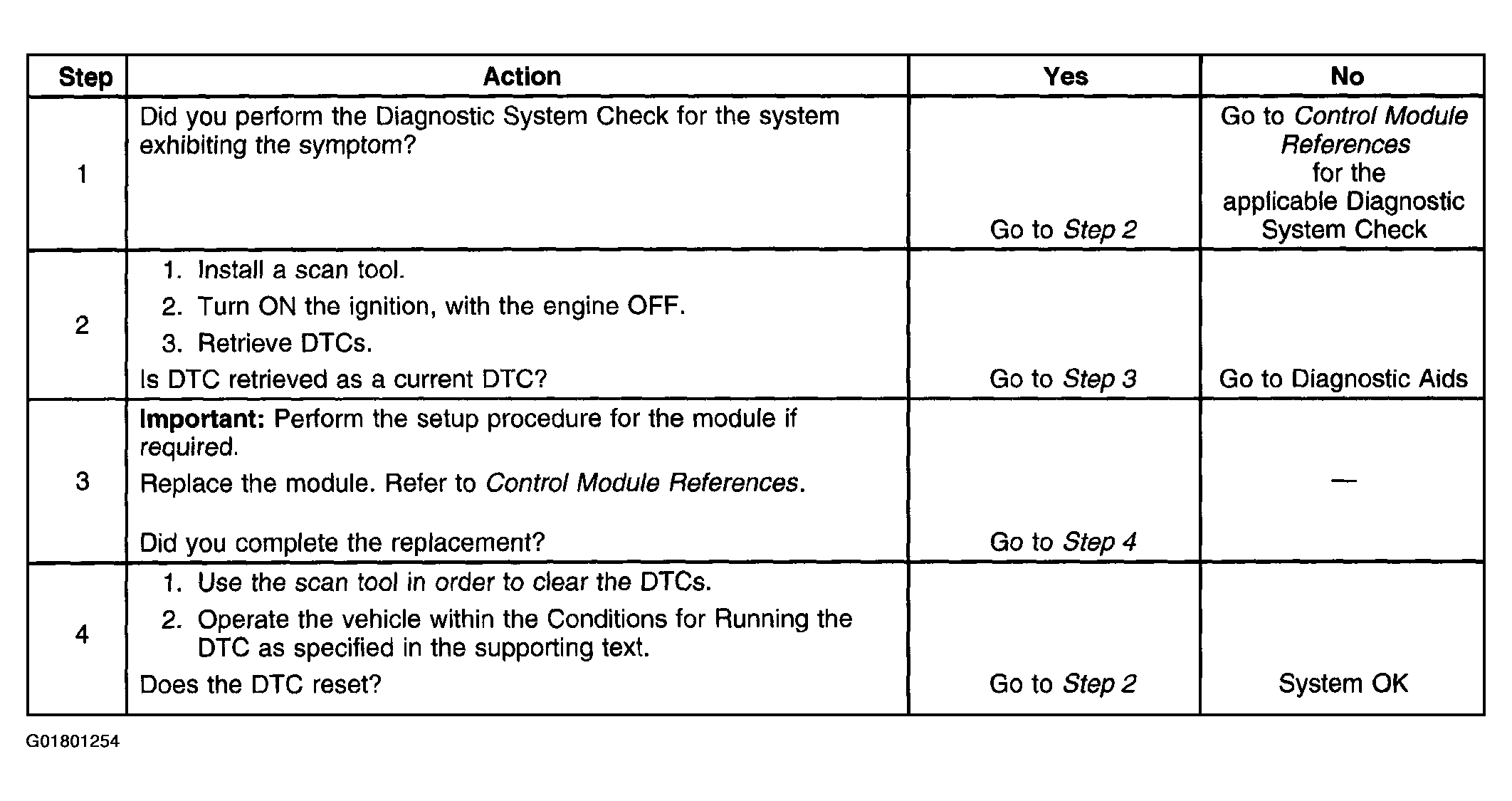

Fig 1: DTC B1007

Courtesy of GENERAL MOTORS CORP.
