Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door trim panel.
    CAUTION: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
  2. Remove the screws (1) that retain the latch to the door.
  3. Remove the screws that retain the hinge (3) to the door.
  4. Remove the window assembly from the vehicle.

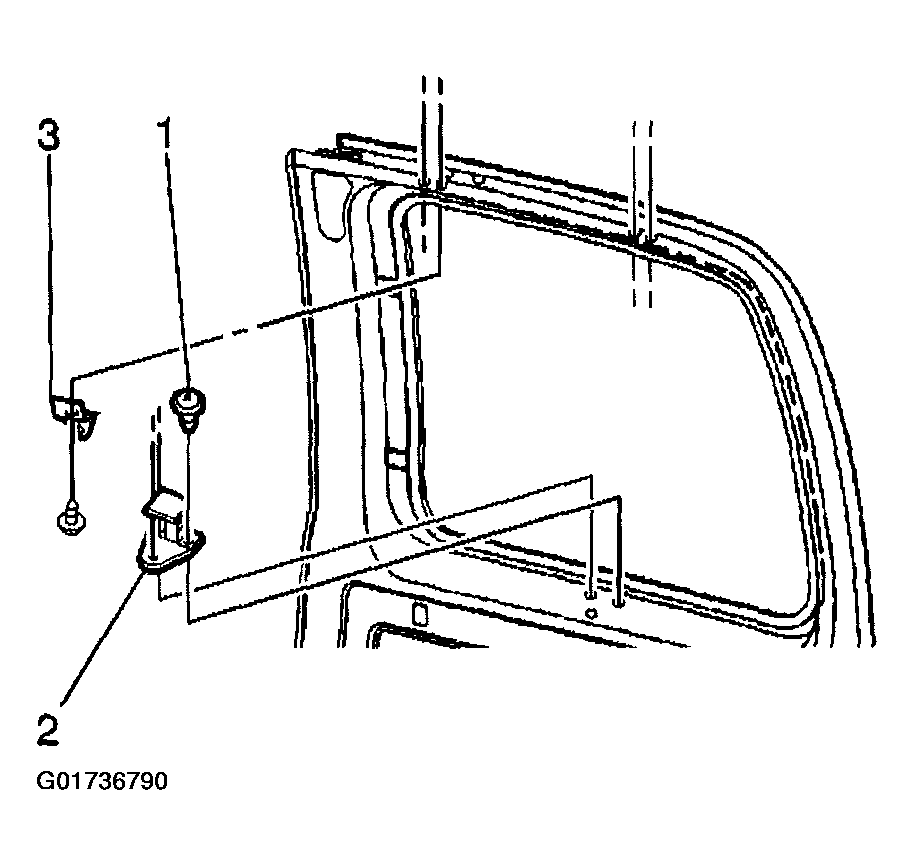

Fig 1: Removing Screws Retaining Latch & Hinge To Door
G01736790Courtesy of GENERAL MOTORS CORP.
