Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Savana Special, 2002 GMC Savana Camper Special, 2002 GMC Savana, and 2002 Chevrolet Chevy Express. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: When working with any type of glass or sheet metal with exposed or rough edges, wear approved safety glasses and gloves in order to reduce the chance of personal injury.
  1. Remove the garnish molding, if equipped.
  2. Remove the screws that retain the latch to the vehicle.
  3. Remove the nuts (3) that retain the hinge to the vehicle.
  4. Remove the window assembly from the vehicle.

    Do not replace the weatherstrip (2) unless the weatherstrip is damaged.

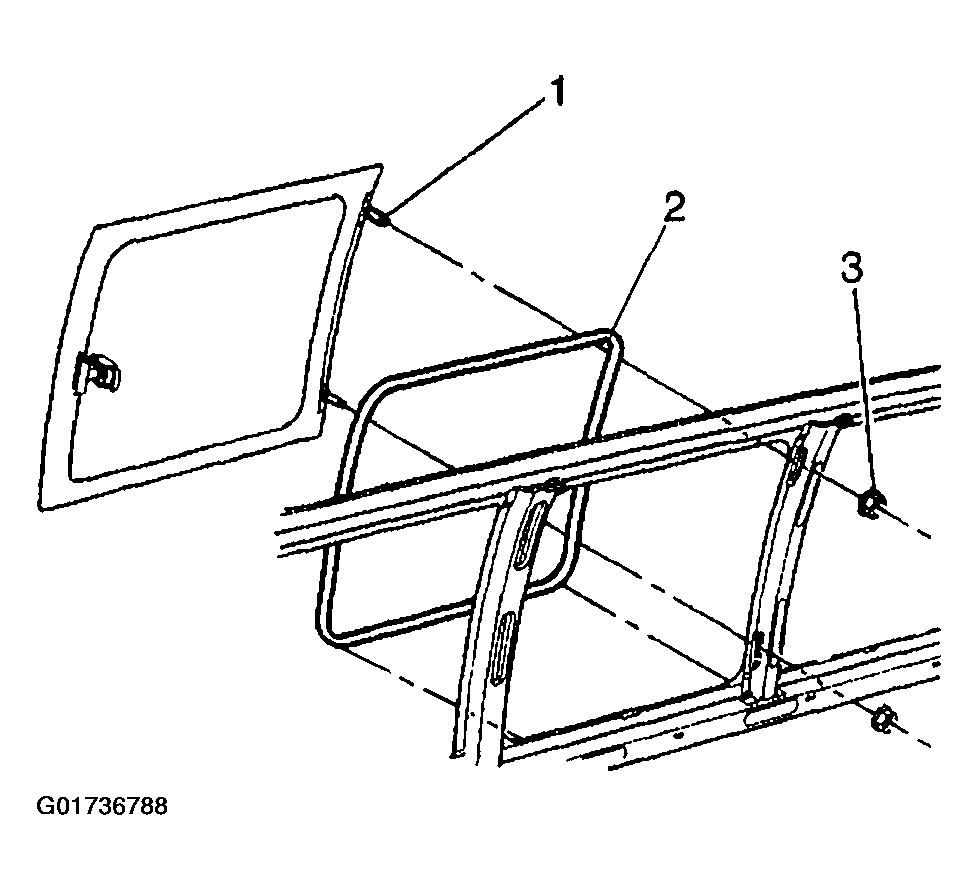

Fig 1: Removing Nuts Retaining Hinge To Vehicle
G01736788Courtesy of GENERAL MOTORS CORP.
