Washers Inoperative

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

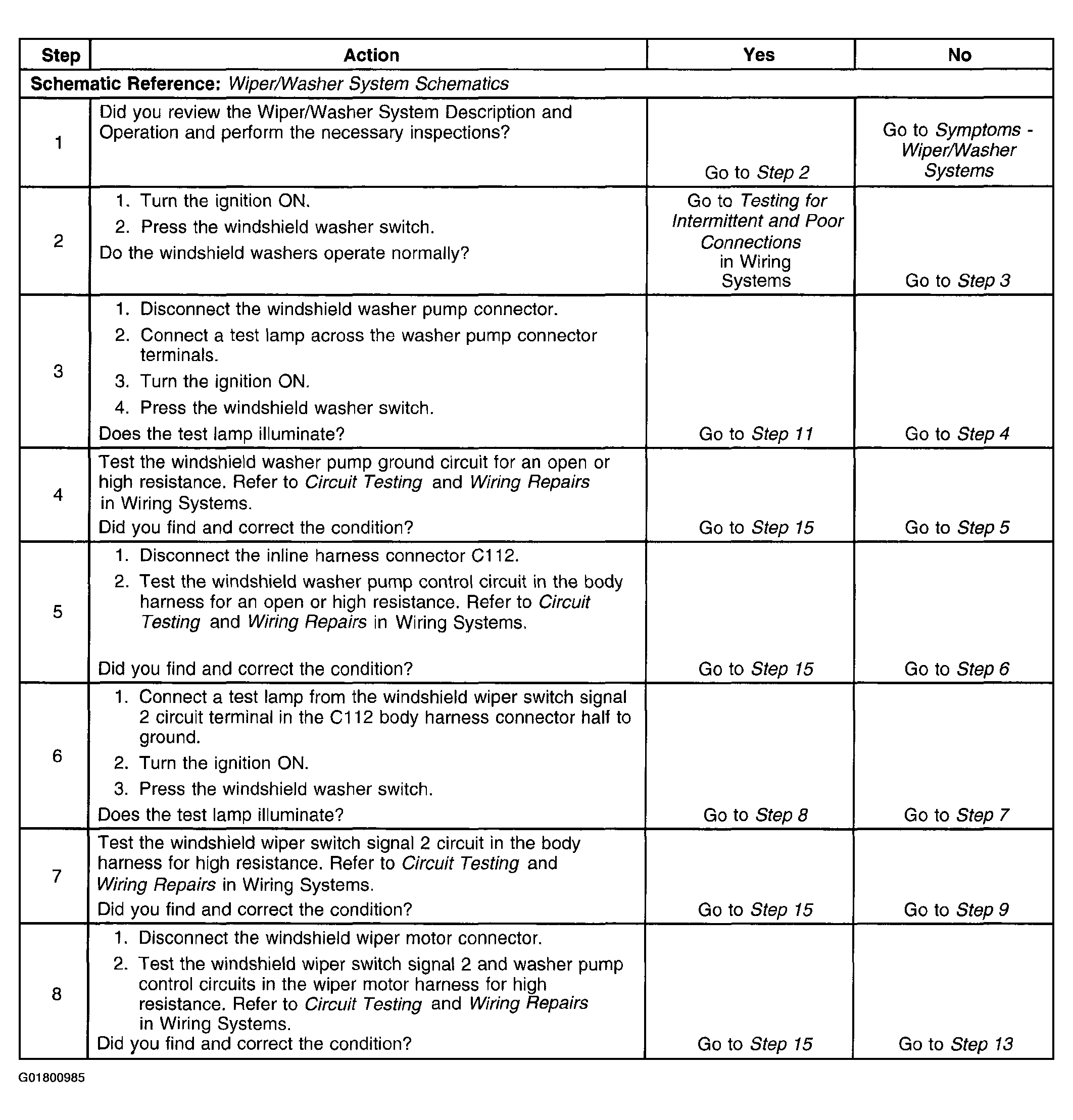

Fig 1: Washers Inoperative (1 Of 2)
G01800985Courtesy of GENERAL MOTORS CORP.

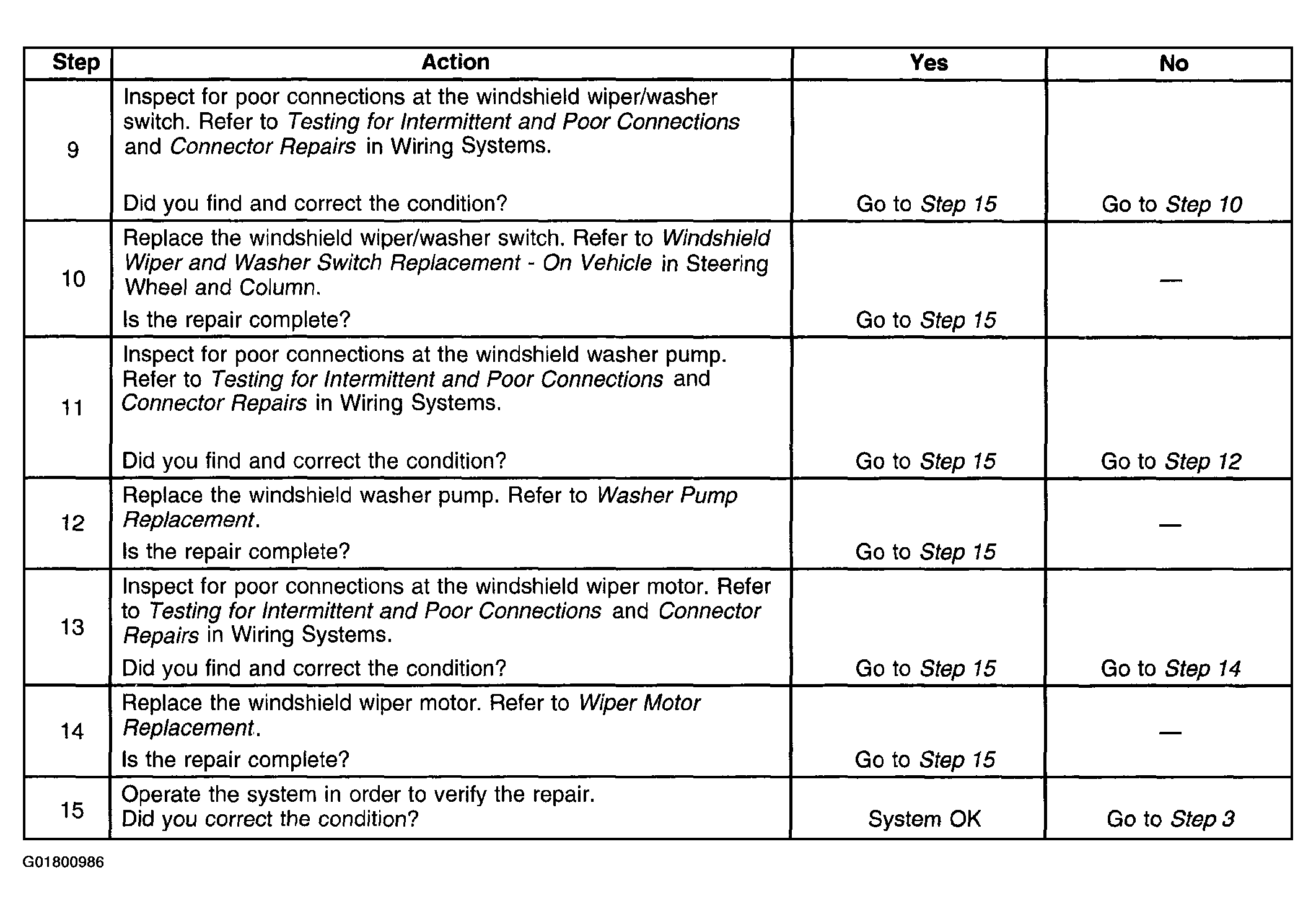

Fig 2: Washers Inoperative (2 Of 2)
G01800986Courtesy of GENERAL MOTORS CORP.
