Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open both doors.
  2. Starting at the front of the molding (2), pull the rocker molding away from the vehicle in order to release the molding from the vehicle (3).

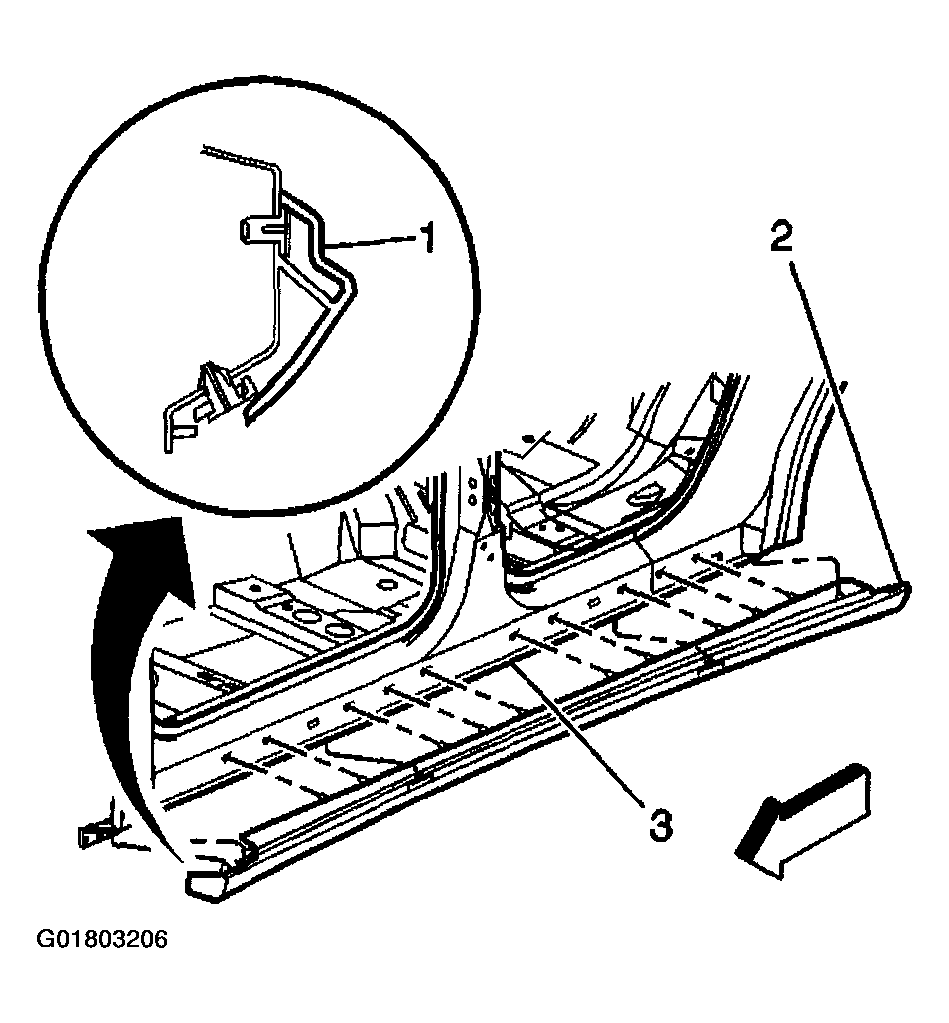

    Fig 1: Removing Rocker Panel Molding
    G01803206Courtesy of GENERAL MOTORS CORP.
