Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

If the location of the emblem/nameplate (1) has not been marked apply tape and use the following dimensions:
- Dimension "A" is 13.4 mm (0.53 in) from the top edge of the license plate pocket (2).
- Dimension "B" is 41.25 mm (1.62 in) from the centerline of the rear compartment lid (3).

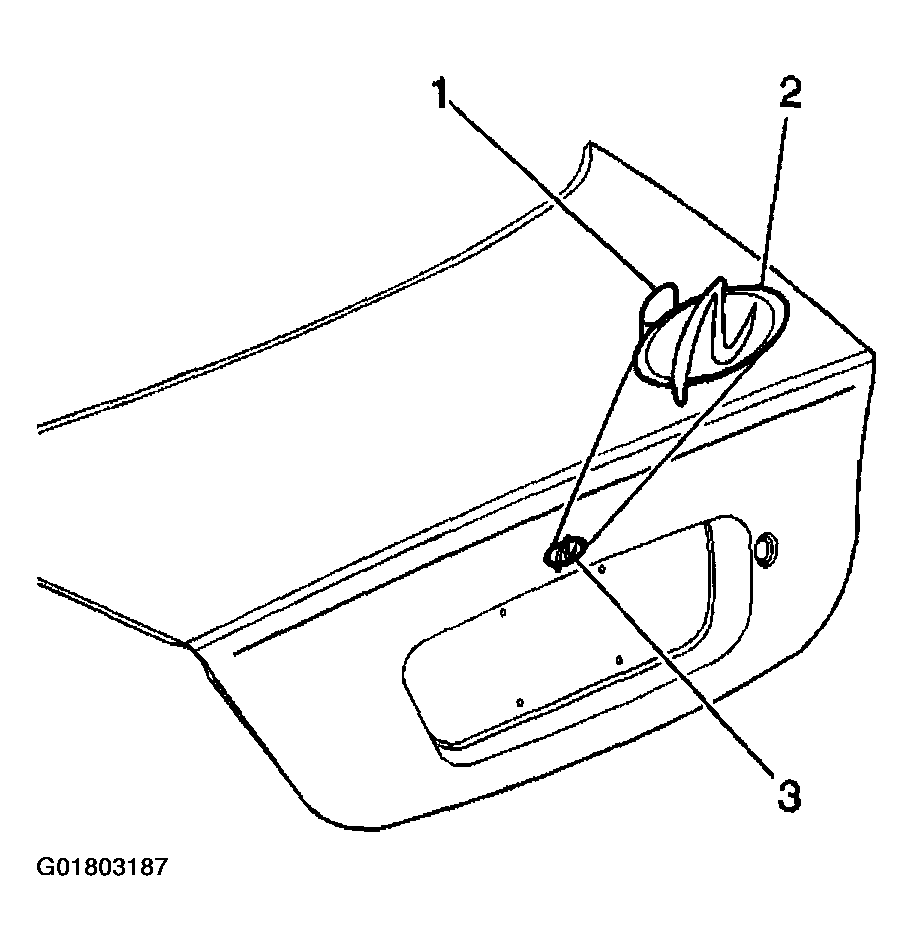

Fig 1: Identifying Emblem Installation Position
Courtesy of GENERAL MOTORS CORP.
Warm the surface with a heat gun J 25070 152 mm (6 in) from the surface to a minimum of 21°C (70°F0.

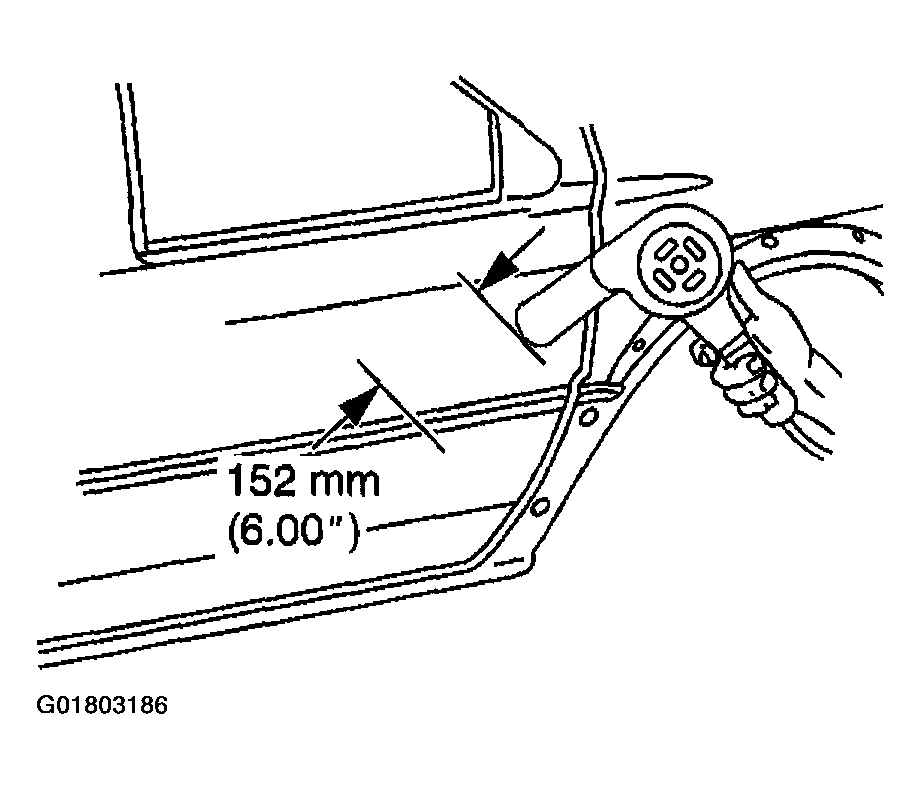

Fig 2: Warming Installation Surface
Courtesy of GENERAL MOTORS CORP.

Important: Do not touch the adhesive backing of the emblem/nameplate.
Remove the backing from the front end of the emblem/nameplate.
Press the emblem/nameplate (2) to the rear compartment lid surface while continuing to remove the backing (1).

Fig 3: Installing Emblem

Courtesy of GENERAL MOTORS CORP.

Hand roll the emblem/nameplate to the rear compartment lid to ensure proper adhesion.
Inspect the emblem/nameplate for bonding.
Remove the tape from the area around the emblem.
