Installation Procedure
WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
- If the location of the emblem/nameplate (1) has not been marked apply tape and use the following dimensions:
- Dimension "A" is 69.9 mm (2.75 in) from the vertical edge of the rear compartment lid.
- Dimension "B" is 42.0 mm (1.65 in) from the horizontal edge of the rear compartment lid.

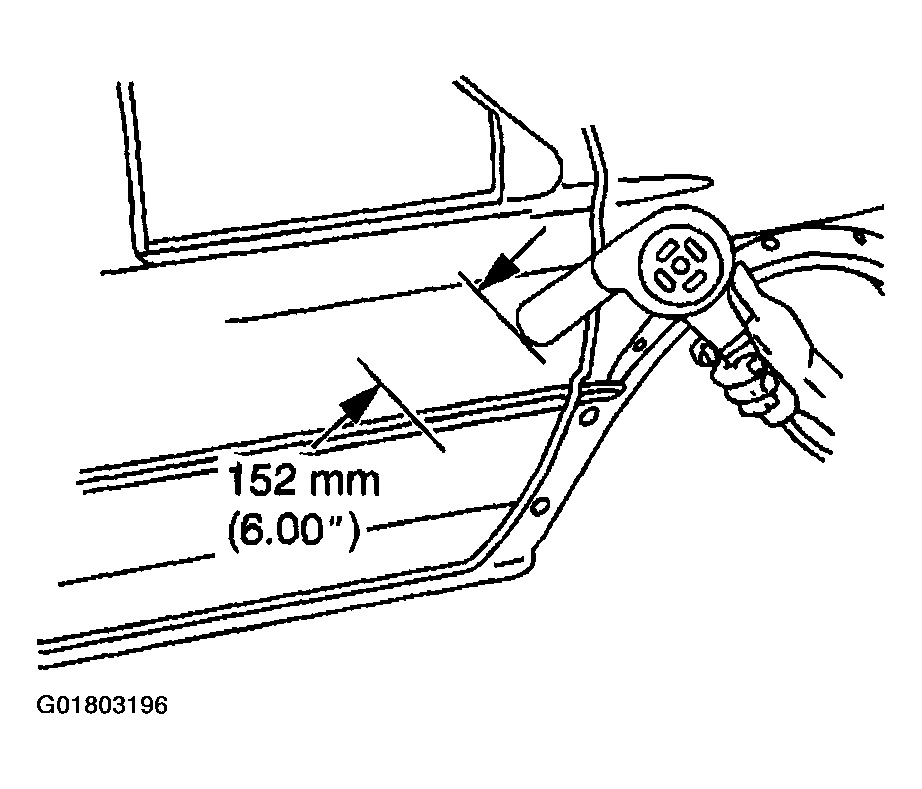

- Warm the surface with a heat gun J 25070
152 mm (6 in) from the surface to a minimum of 21°C (70°F).
Important: Do not touch the adhesive backing of the emblem/nameplate.
- Remove the backing from the front end of the emblem/nameplate.
- Press the emblem/nameplate to the rear compartment lid surface while continuing to remove the backing.
- Hand roll the emblem/nameplate to the rear compartment lid to ensure proper adhesion.
- Inspect the emblem/nameplate for bonding.
- Remove the tape from the area around the emblem.
