Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window all the way down.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the door module. Refer to Door Control Module Replacement .
  4. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  5. Remove the window inner belt molding. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  6. Remove the window outer belt molding. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  7. Loosen the window regulator to window clamps.
  8. Remove the window by lifting up and out.

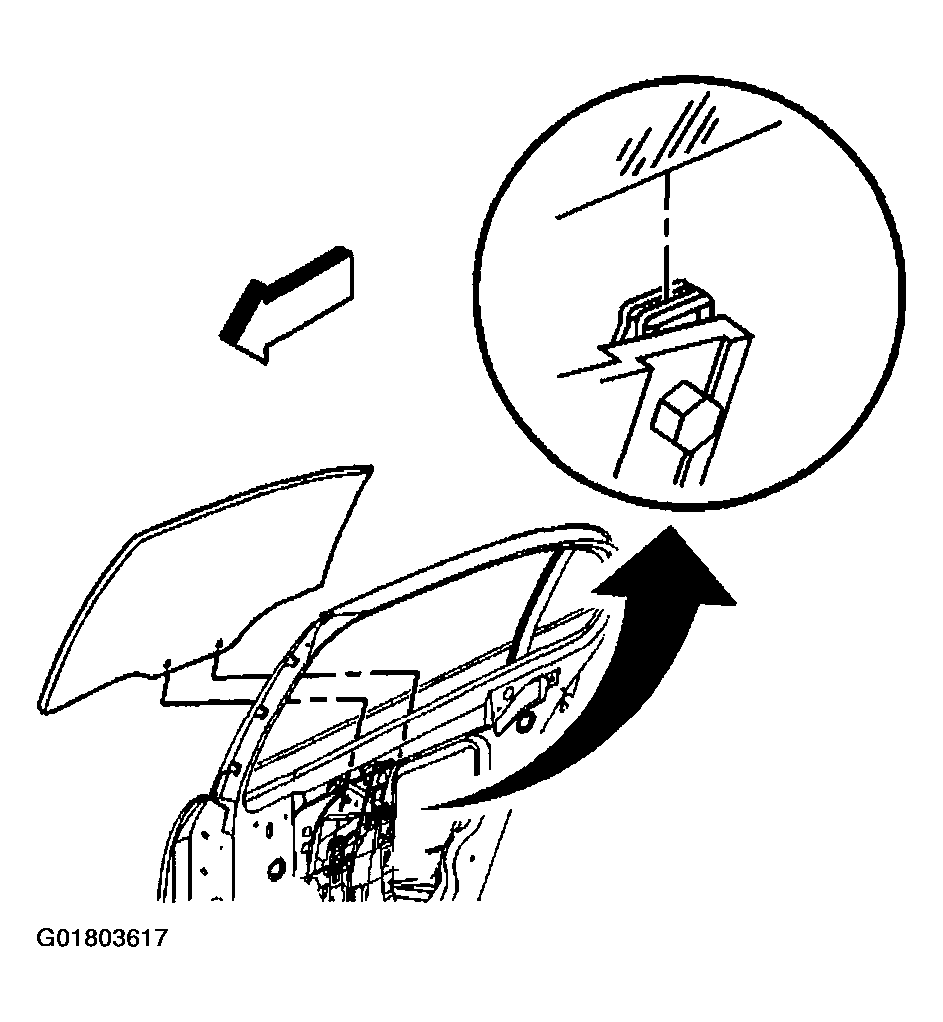

    Fig 1: Removing Window
    G01803617Courtesy of GENERAL MOTORS CORP.
