Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the door module. Refer to Door Control Module Replacement .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the window inner belt molding. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  5. Connect a power source to the window motor and lower the window half way down.
  6. Loosen the window regulator to window clamps.
  7. Remove the window by tilting window forward then pulling the window up and out of the door.

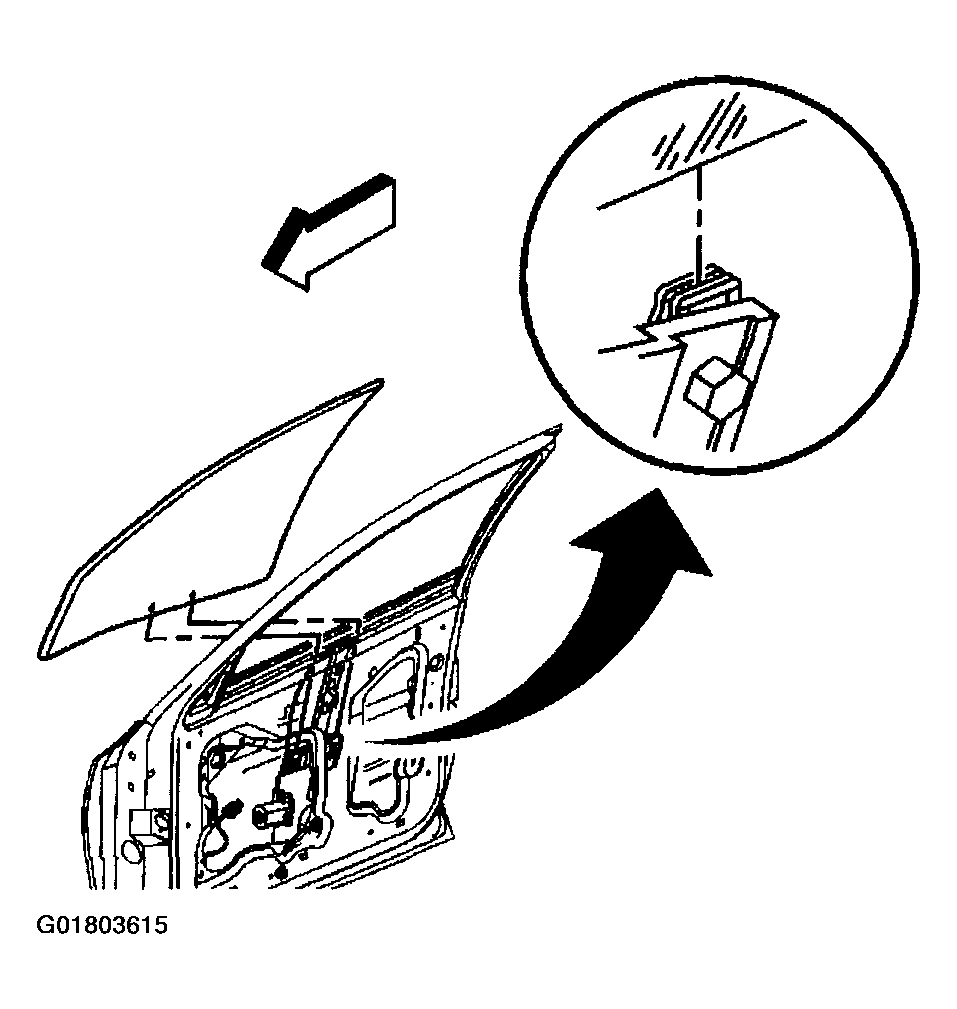

    Fig 1: Removing Window
    G01803615Courtesy of GENERAL MOTORS CORP.
