Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window half way down in order to gain access to the window retainer clamp fasteners (1).
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  3. Remove the door module. Refer to Door Control Module Replacement .
  4. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  5. Loosen the window retainer clamp fasteners.

    Important:  you may need to use masking tape in order to hold the window in place while removing the regulator.

  6. Slide the window to the full up position.
  7. Disconnect the electrical connector from the motor.
  8. Remove the window regulator to inner door panel fasteners (1-3).
  9. Remove the window regulator.

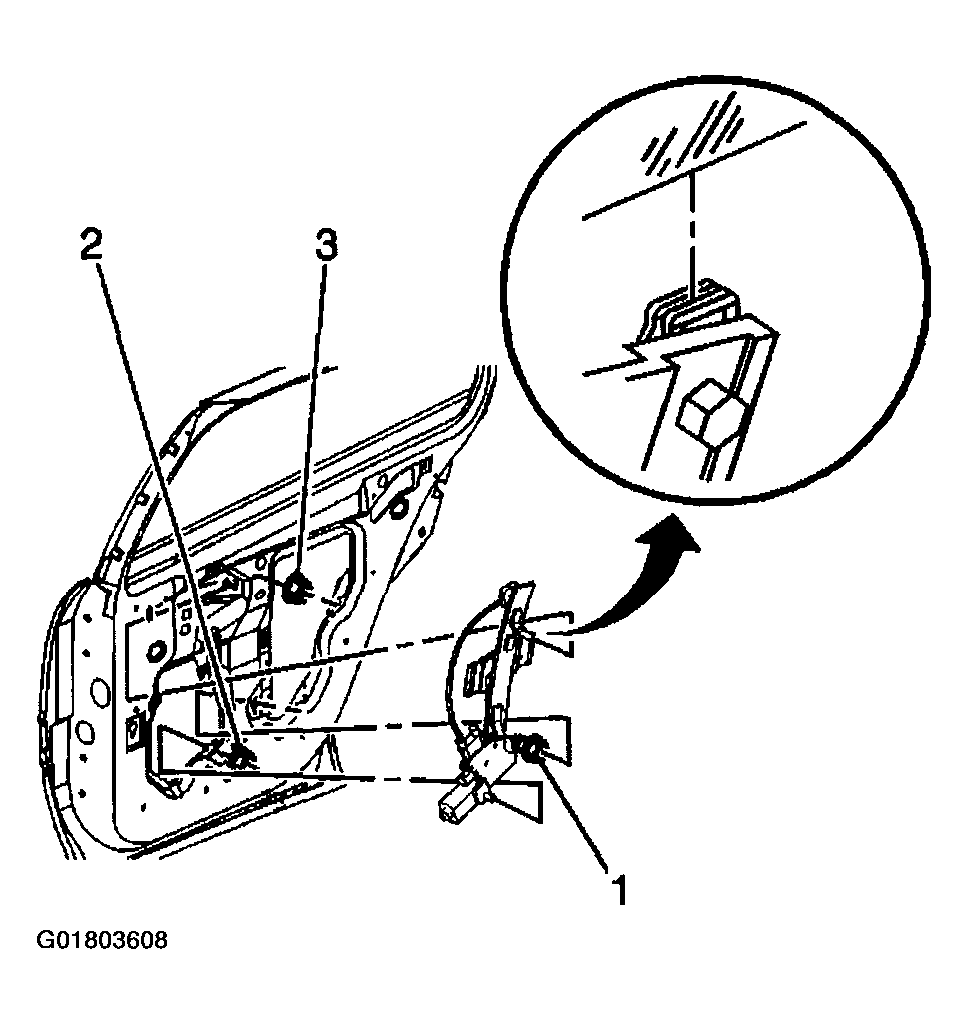

    10. Fig 1: Removing Window Regulator
    G01803608Courtesy of GENERAL MOTORS CORP.
