Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the door module. Refer to Door Control Module Replacement .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
    CAUTION: Refer to Express EXPRESS WINDOW DOWN CAUTION .
  4. Loosen the window retainer clamp fasteners.

    Important:  you may need to use masking tape to hold the window in place while replacing the regulator.

  5. Slide the window to the full up position.
  6. Disconnect the electrical connector from the window regulator motor.
  7. Remove the window regulator to inner door panel fasteners.
  8. Remove the window regulator.

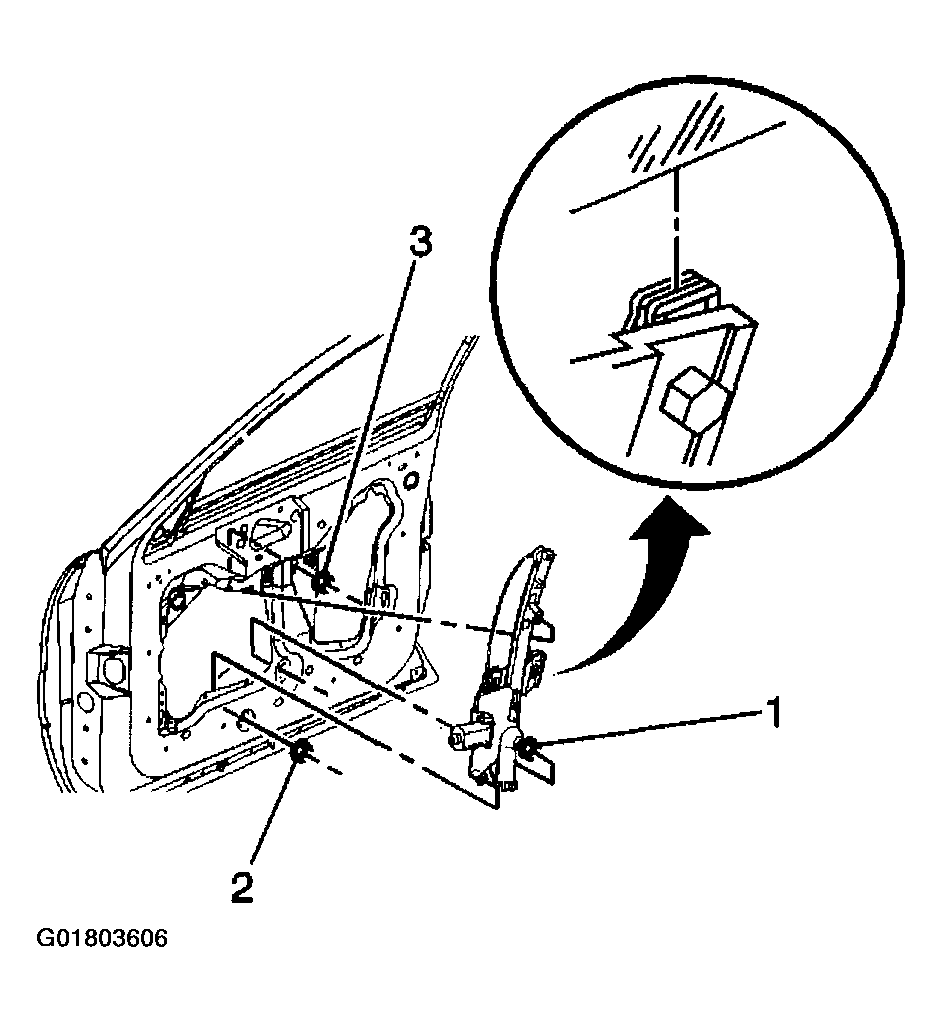

    9. Fig 1: Removing Window Regulator
    G01803606Courtesy of GENERAL MOTORS CORP.
