Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the door control module. Refer to Door Control Module Replacement .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Rear Door .
  4. Remove the energy absorber pad. Refer to Energy Absorber Pad Replacement Rear Door .
  5. Remove the window inner belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .
  6. Remove the window outer belt sealing strip. Refer to Sealing Strip Replacement - Rear Door Window Belt Outer .
  7. Remove the rear door window. Refer to Window Replacement - Rear Door .
  8. Remove the rear door window weatherstrip. Refer to Weatherstrip Replacement - Rear Door Window .

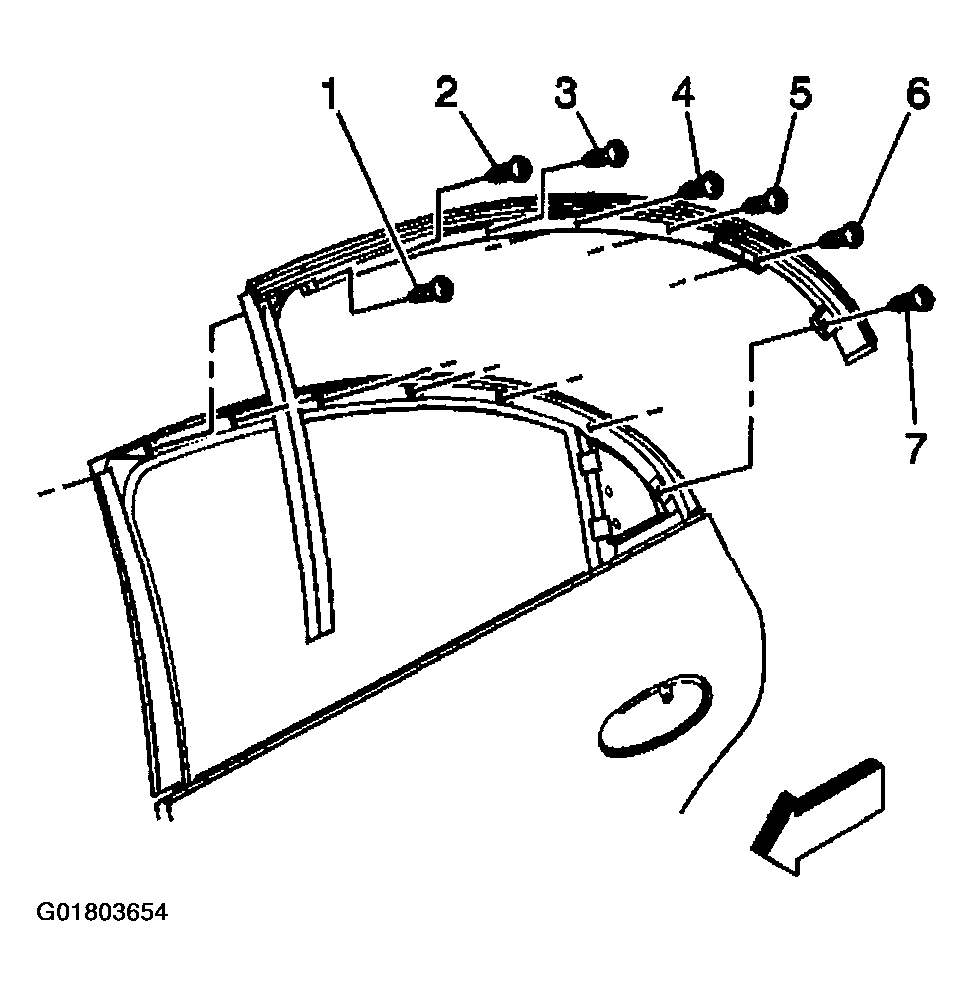

  9. Remove the rear door upper auxiliary weatherstrip screws (1-7).
  10. Carefully pull the auxiliary weatherstrip away from the door header.
    11. Fig 1: Removing Rear Door Upper Auxiliary Weatherstrip
    G01803654Courtesy of GENERAL MOTORS CORP.
