Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the door module. Refer to Door Control Module Replacement .
  3. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  4. Remove the window inner belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Inner .
  5. Remove the window outer belt sealing strip. Refer to Sealing Strip Replacement - Front Door Window Belt Outer .
  6. Remove the window. Refer to Window Replacement - Front Door .
  7. Remove the fasteners from the front window channel (2).
  8. Carefully pull the window weatherstrip from the door.

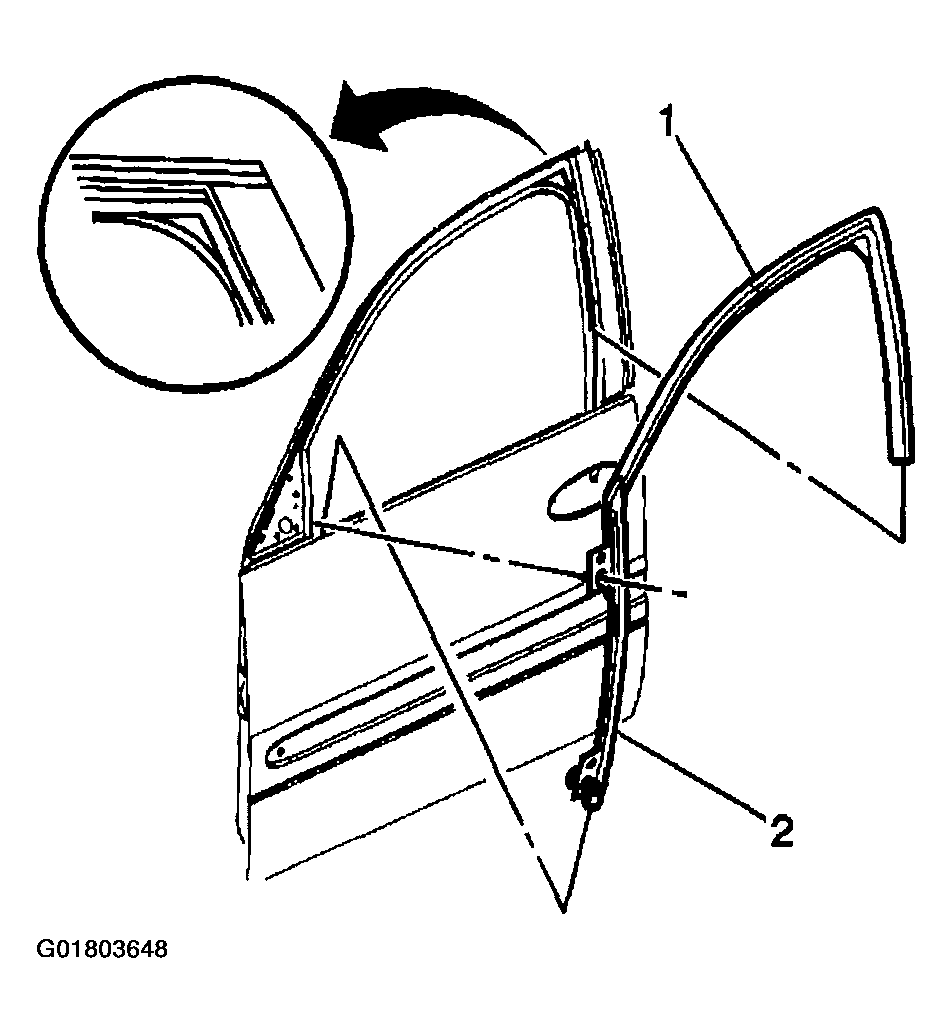

    9. Fig 1: Removing Window Weather Strip
    G01803648Courtesy of GENERAL MOTORS CORP.
