Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Remove the door control module. Refer to Door Control Module Replacement .
  3. Remove the nylon nuts (2).

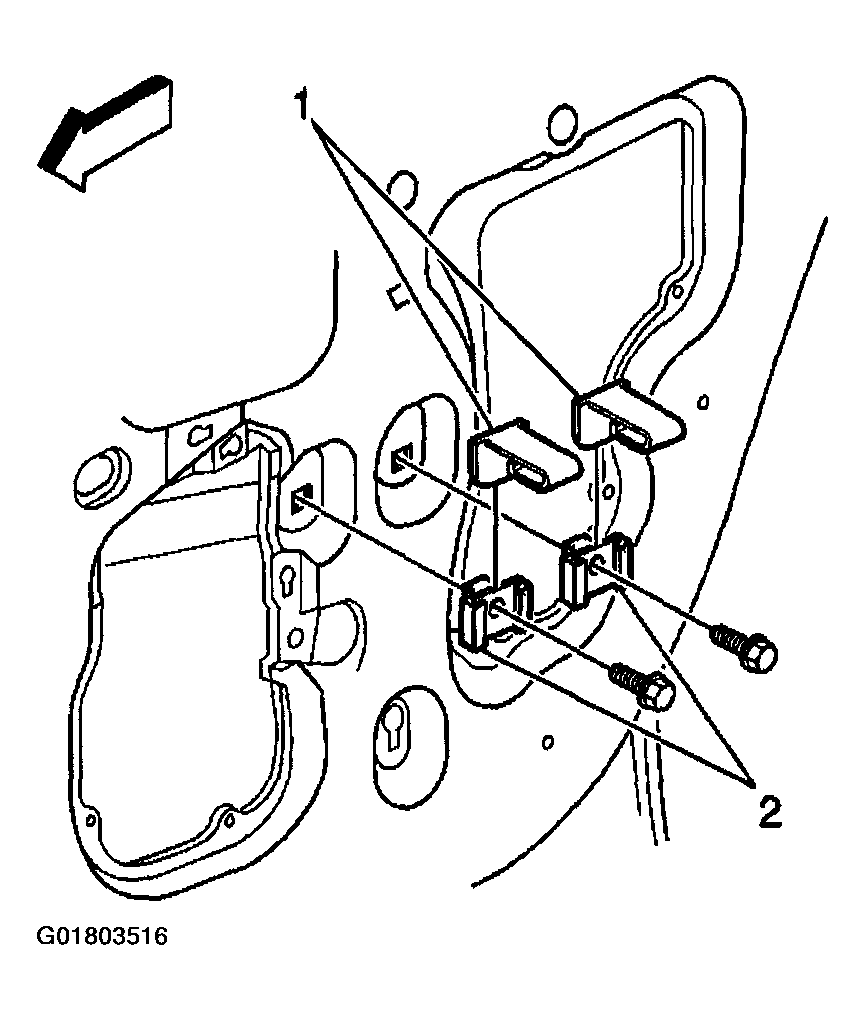

    Fig 1: Removing Water Deflector Nylon Nuts
    G01803516Courtesy of GENERAL MOTORS CORP.
  4. Remove the retainers at the upper corners of the water deflector.
  5. Push the wiring harness through the hole in the water deflector.
  6. Carefully peel the water deflector away from the door, being careful not to damage the sealer.
  7. If removal of the auxiliary water deflector is required. Refer to Sealing Strip Replacement - Rear Door Window Belt Inner .

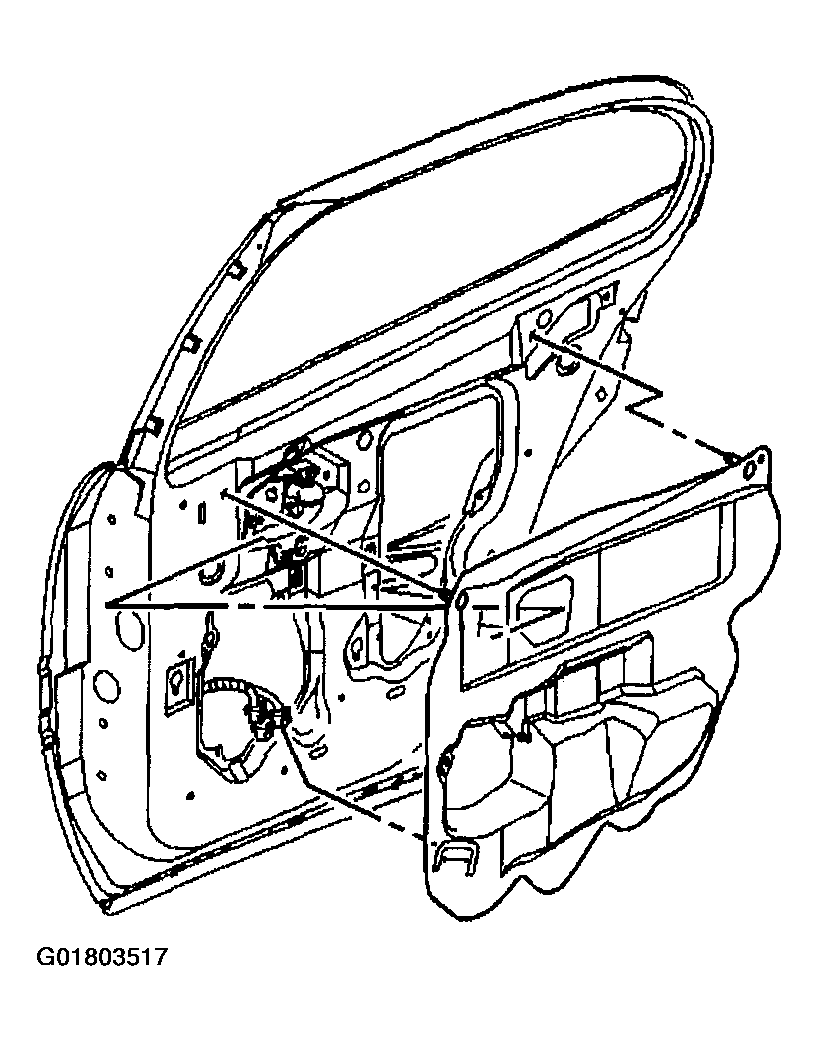

    Fig 2: Removing Water Deflector
    G01803517Courtesy of GENERAL MOTORS CORP.
