Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  2. Remove the door module. Refer to Door Control Module Replacement .
  3. Remove the nylon nuts (2).

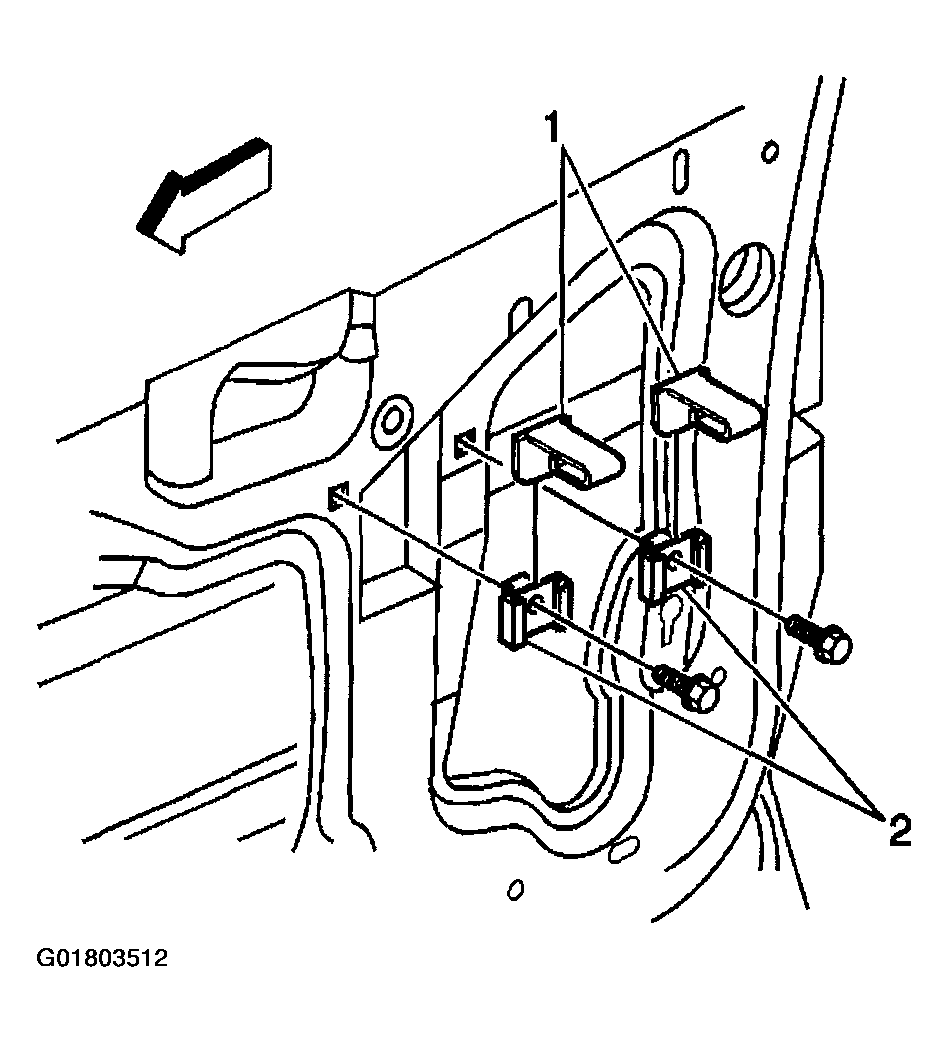

    Fig 1: Removing Water Deflector Nylon Nuts
    G01803512Courtesy of GENERAL MOTORS CORP.
  4. Push the wiring harness through the hole in the water deflector.
  5. Remove the retainers at the upper corners of the water deflector.
  6. Gently peel the water deflector away from the door, being careful not to damage the sealer.
  7. Remove the water deflector.

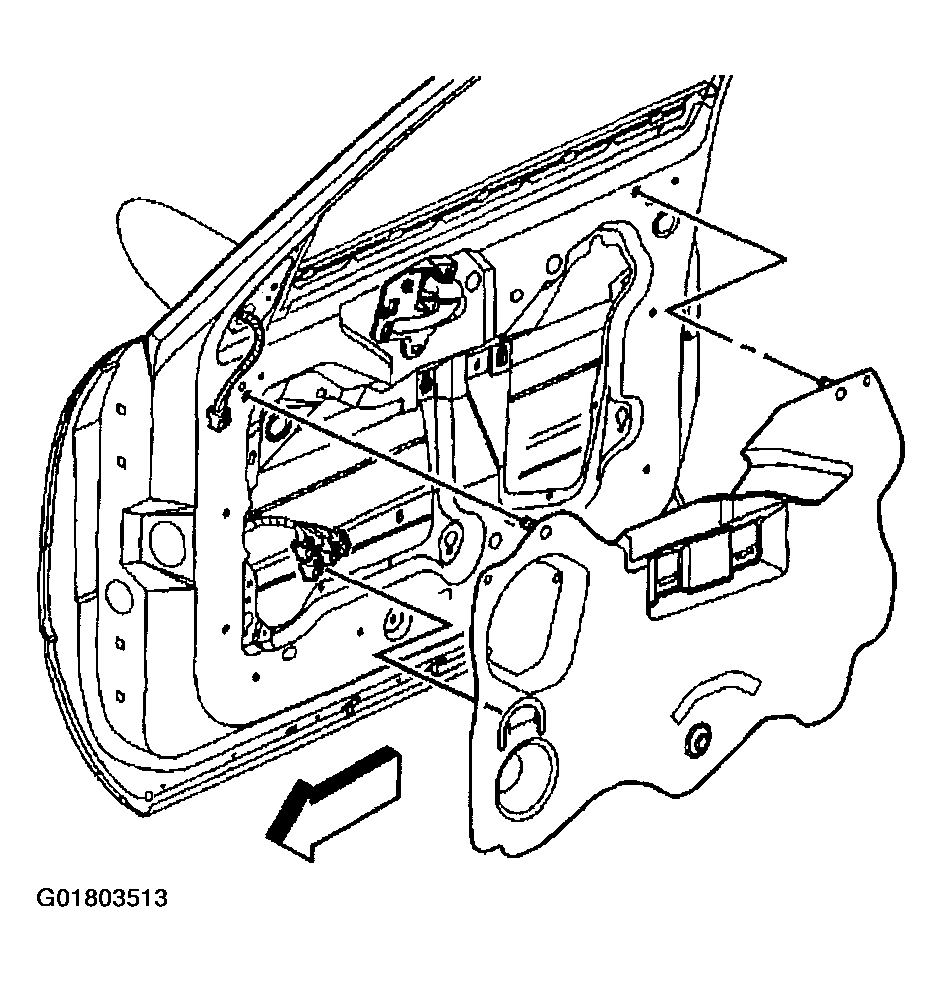

    Fig 2: Removing Water Deflector
    G01803513Courtesy of GENERAL MOTORS CORP.
