Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inside door handle bezel. Refer to Handle Bezel Replacement - Inside  .
  2. Use the J 38778  to pry out the retainers (3) around the outside edges of the door trim panel (1).
  3. Remove the door trim panel by pulling out at the bottom of the panel and lifting up.
  4. Disconnect the door trim panel wire harness.

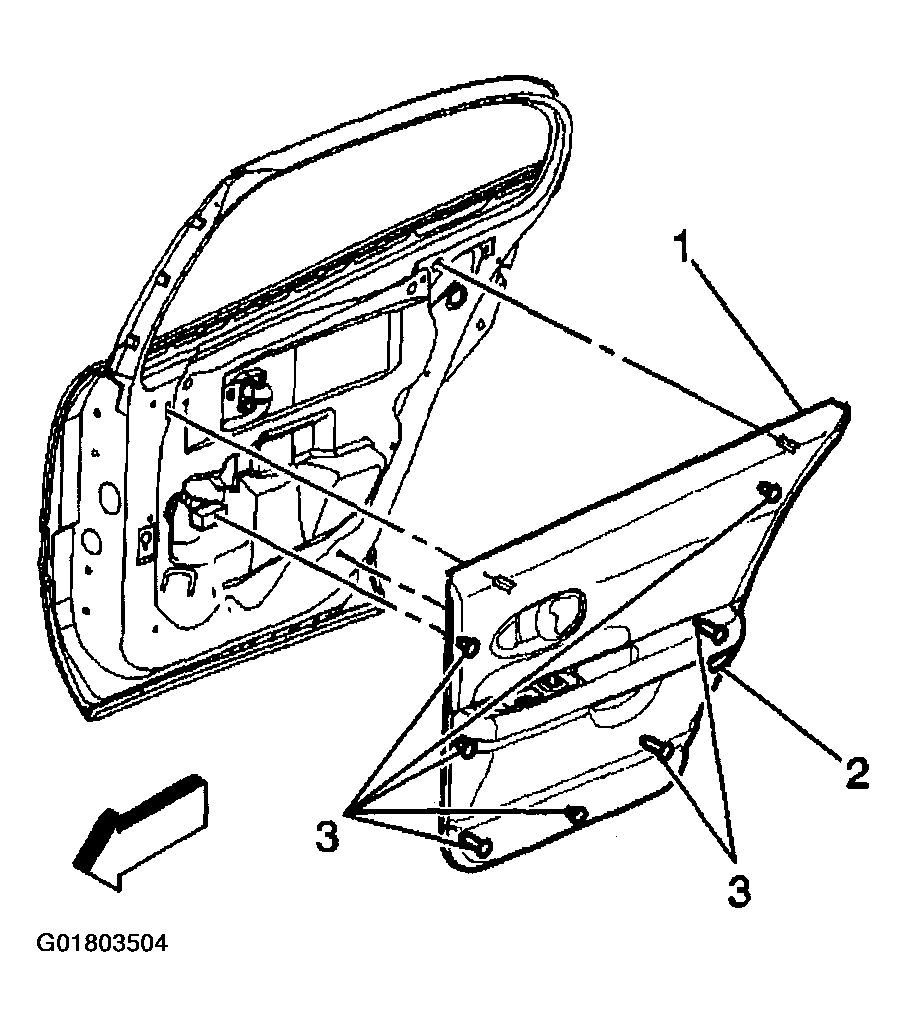

    Fig 1: Removing Side Rear Door Trim Panel
    G01803504Courtesy of GENERAL MOTORS CORP.
