Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the inside door handle bezel. Refer to Handle Bezel Replacement - Inside  .
  2. Remove the upper door trim panel (1).
    1. 2.1. Use the J 38778  in order to release the retainer at the top of the upper door trim panel.
    2. 2.2. Lift upwards to remove.
    3. 2.3. Disconnect the wire harness to the tweeter.

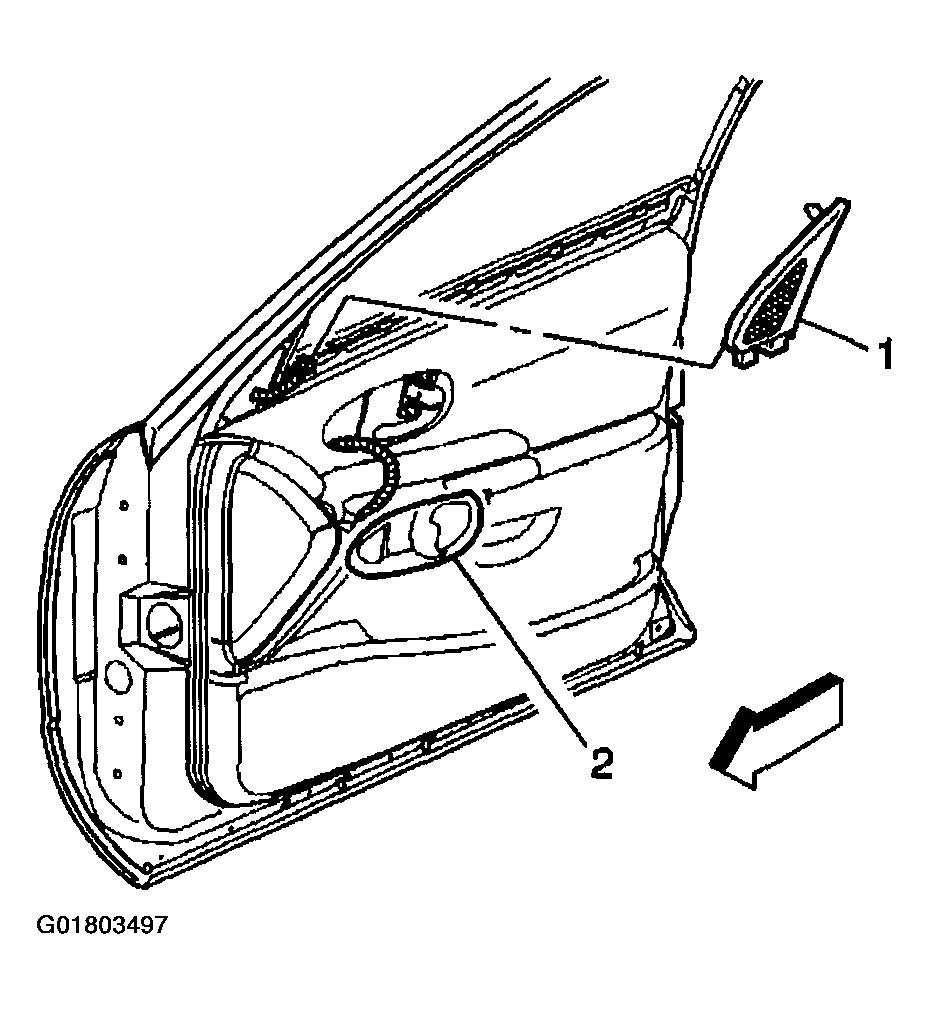

    Fig 1: Removing Upper Door Trim Panel
    G01803497Courtesy of GENERAL MOTORS CORP.
  3. Use the J 38778  in order to release the retainers (2) around the outside edges of the door trim panel.
  4. Slide the door trim panel upwards to release the armrest pull cup retainers (1).
  5. Disconnect the door trim panel wiring harness.
  6. Remove the armrest pull cup retainers (1) from the inside of the door trim panel.

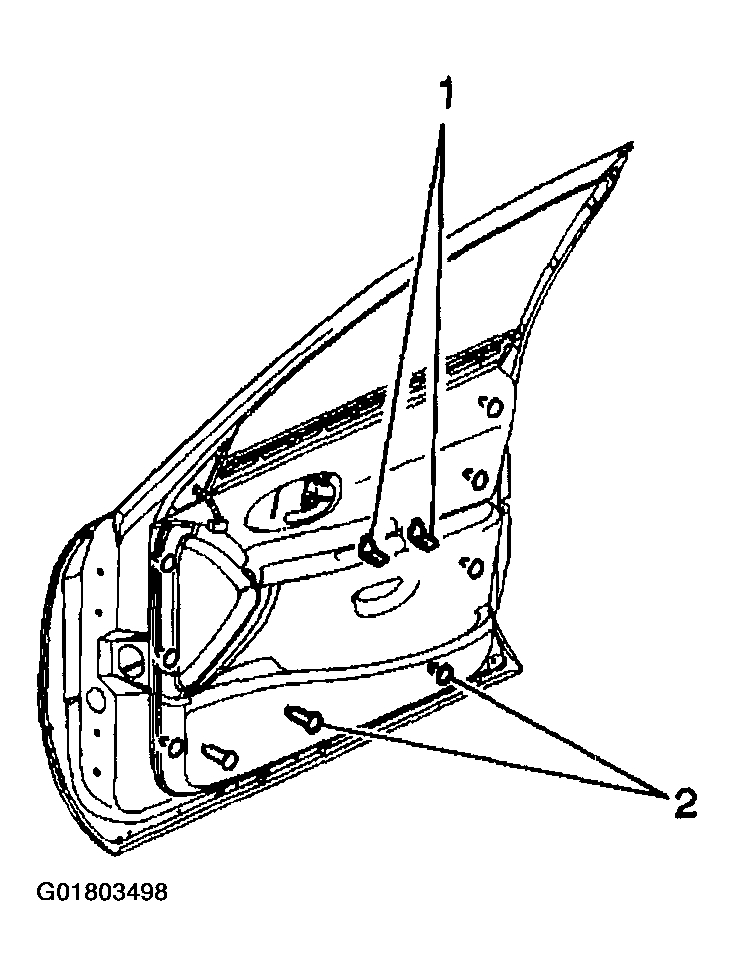

    Fig 2: Removing Armrest Pull Cup Retainers
    G01803498Courtesy of GENERAL MOTORS CORP.
