Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door striker. Refer to Striker Replacement - Door .
  2. Remove the rear seat back. Refer to SEAT BACK REPLACEMENT -- REAR .
  3. Remove the anchor plate (1) from the rear pillar chute.

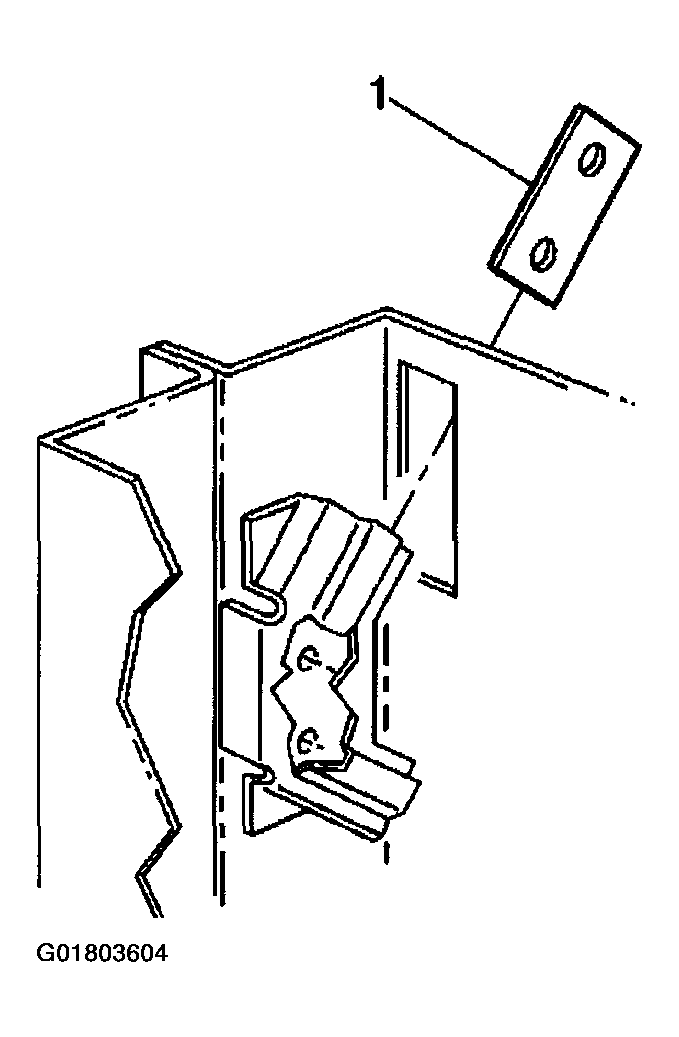

    Fig 1: Removing Striker Anchor Plate
    G01803604Courtesy of GENERAL MOTORS CORP.
