Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Lower the window all the way down.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Starting at one end of the window inner belt seal strip (1), pull upward to release the seal strip.

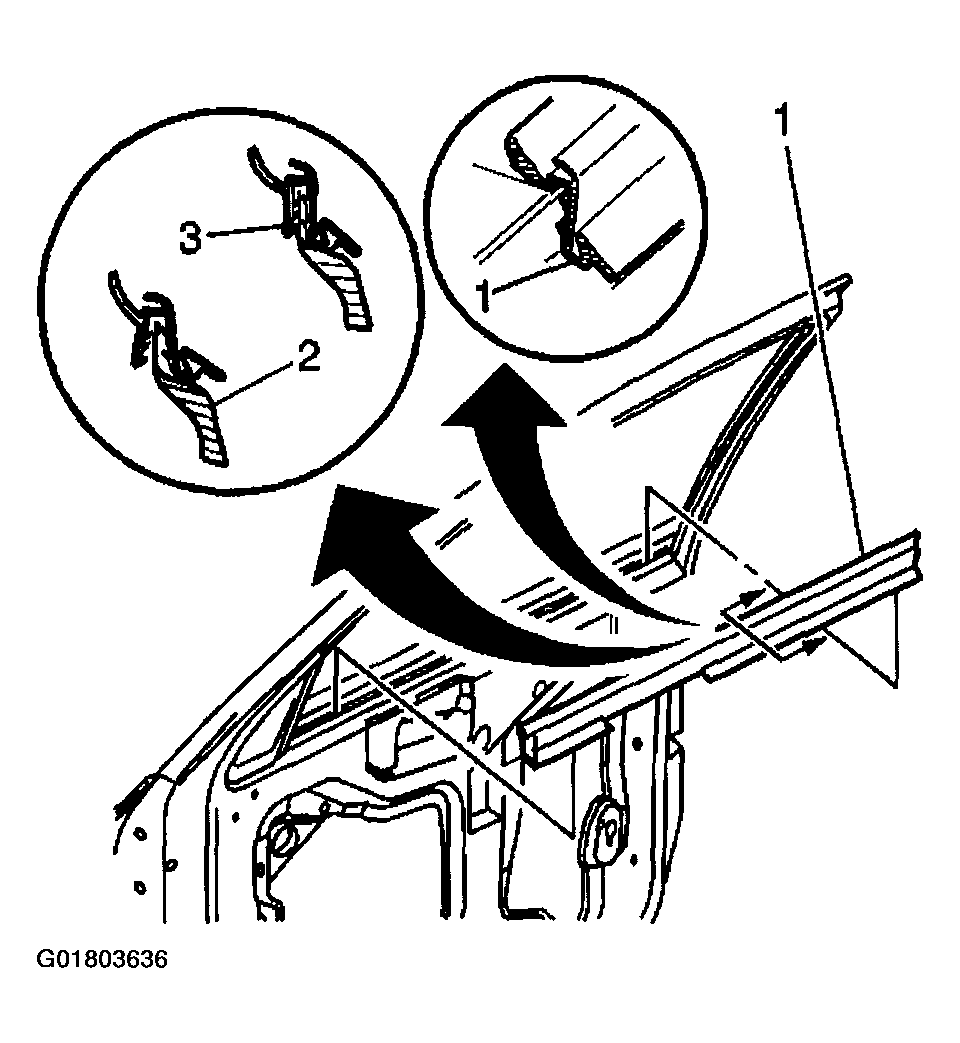

    Fig 1: Removing Window Seal Strip
    G01803636Courtesy of GENERAL MOTORS CORP.
  4. If further disassembly of the door is required, remove the auxiliary water deflector.
    1. 4.1. Gently remove folded portion of deflector from the door flange.
    2. 4.2. Lift deflector up and out of the door.

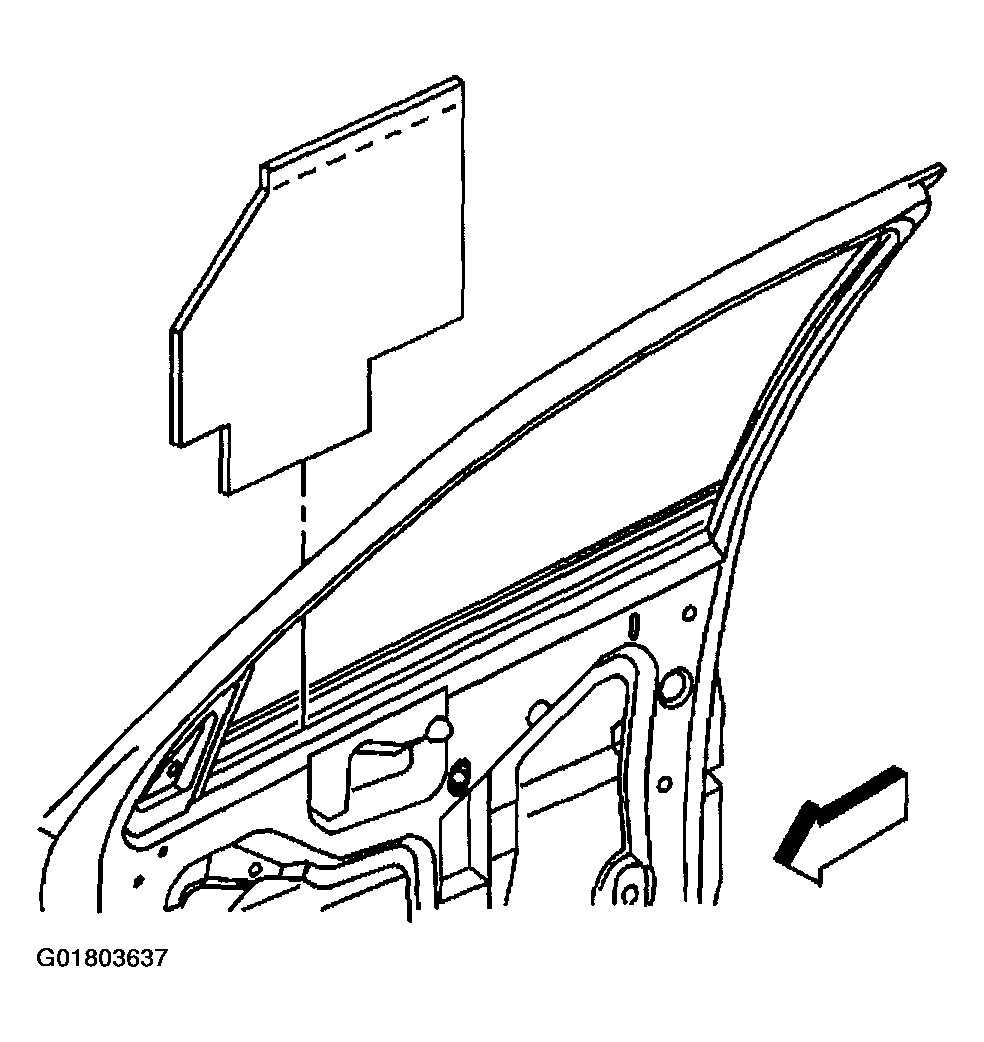

    Fig 2: Removing Auxiliary Water Deflector
    G01803637Courtesy of GENERAL MOTORS CORP.
