Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the door open remove the front door bottom sealing strip retainers.
  2. Remove the front door bottom sealing strip.

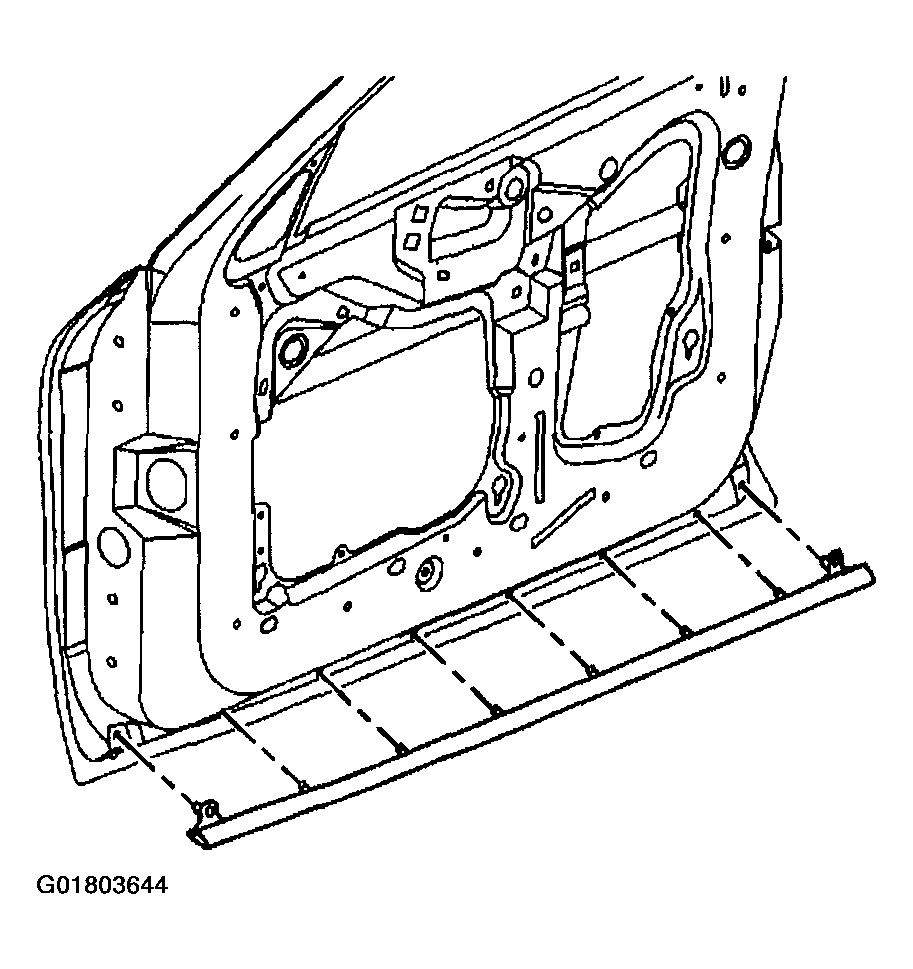

    Fig 1: Removing Front Door Bottom Sealing Strip
    G01803644Courtesy of GENERAL MOTORS CORP.
