Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place forefinger under the lower rear edge of the switch plate.
  2. Place thumb at the upper rear end of the switch plate along the curved surface.
  3. While pulling rearward with forefinger and holding pressure with thumb, flex and lift the rear of the switch plate upwards.
  4. Insert a small flat bladed tool under the forward edge of the switch plate.
  5. Gently pry the forward edge of the switch plate upwards.

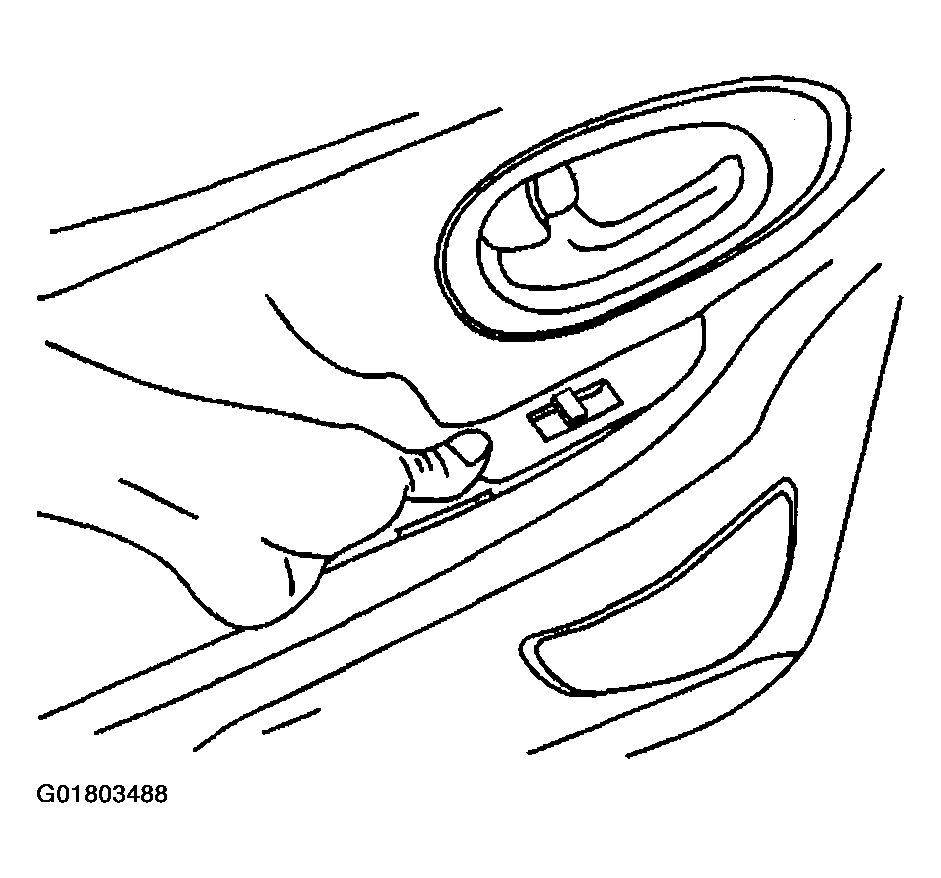

    6. Fig 1: Removing Rear Door Window Switch
    G01803488Courtesy of GENERAL MOTORS CORP.
  6. Lift the entire switch plate upwards to remove.
  7. Disconnect the electrical connector.
