Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper door trim panel (1) located above the door trim panel.
    1. 1.1. Use the J-tool to release retainer at the top of the panel.
    2. 1.2. Lift the panel up to remove.
    3. 1.3. Disconnect the wire harness from the tweeter.

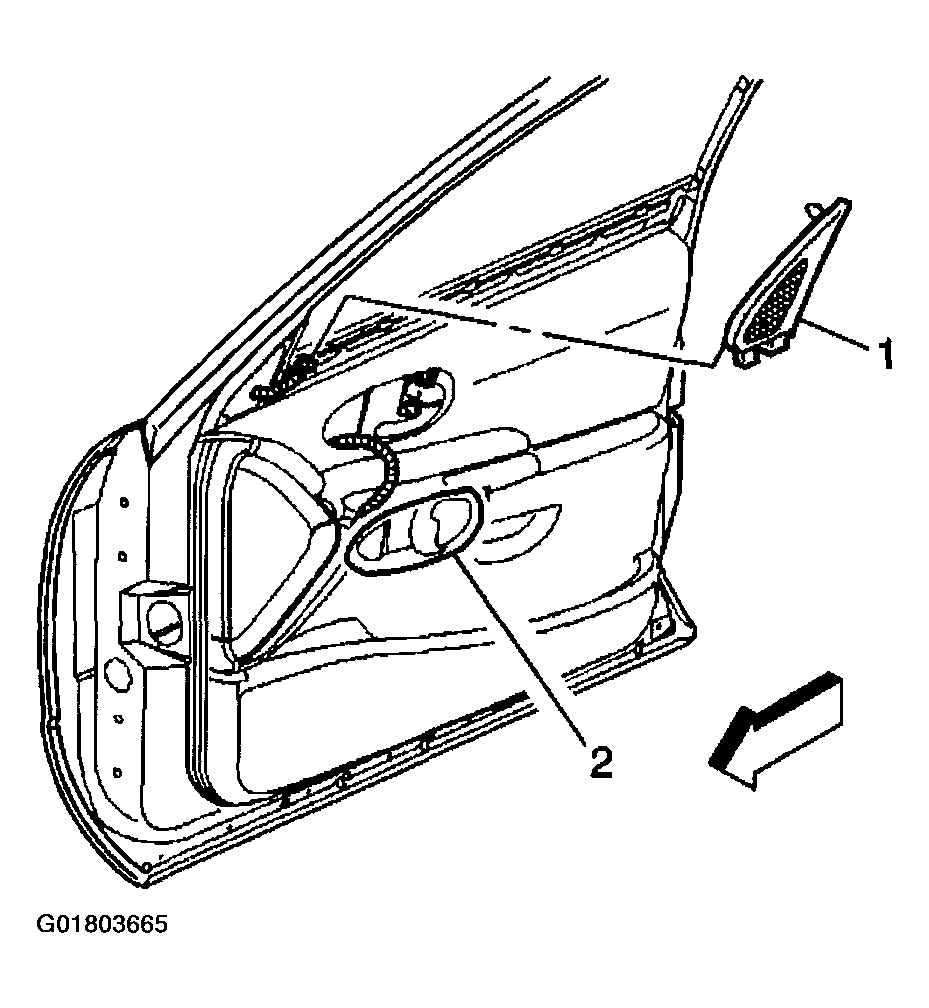

    2. Fig 1: Removing Upper Door Trim Panel
    G01803665Courtesy of GENERAL MOTORS CORP.
  2. Remove the sound barrier.
  3. Remove the door trim panel to gain access to the power mirror wire harness. Refer to Trim Panel Replacement - Side Front Door .
  4. Disconnect the electrical connector.
  5. Remove the mirror fasteners.
  6. Disconnect the wire harness from the retainer clip and unseat the grommet.
  7. Remove the mirror from the door.
  8. Pull the wiring harness through the hole in the mirror patch.

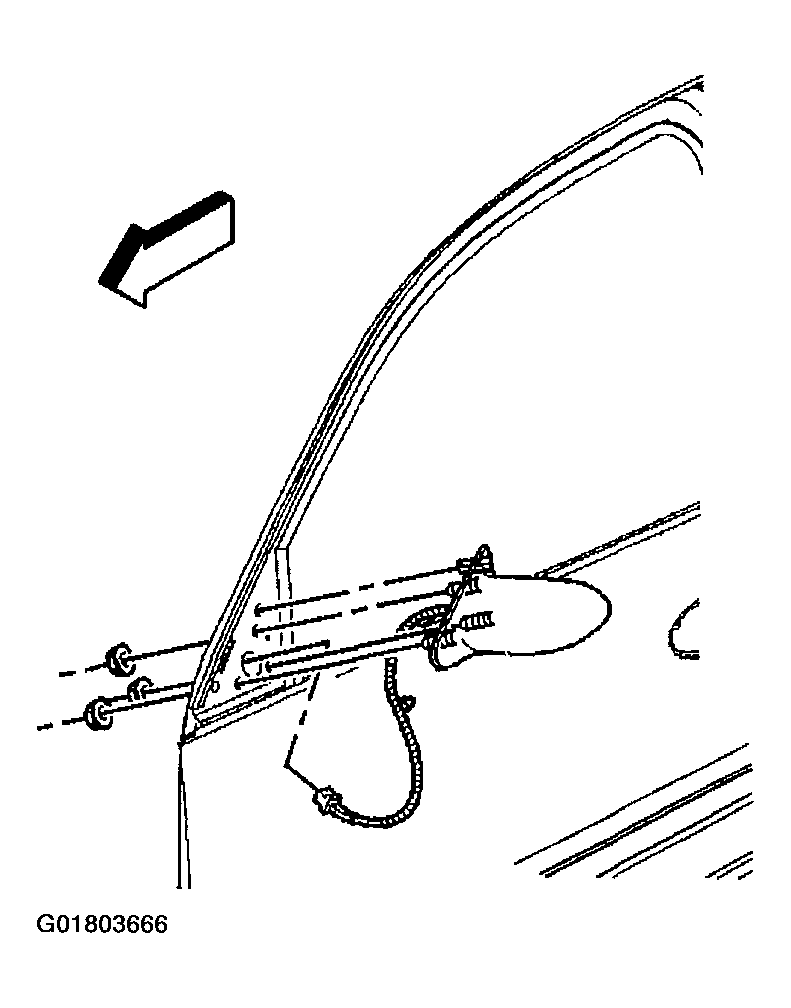

    Fig 2: Removing Mirror
    G01803666Courtesy of GENERAL MOTORS CORP.
