Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place the window in the full up position.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the door module. Refer to Door Control Module Replacement .
  4. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  5. Remove the E-clip (3) on the lock cylinder to remove the lock rod and arm (2).
  6. Spread the omega clip (1).
  7. Remove the lock cylinder from the backside of the door handle (4).

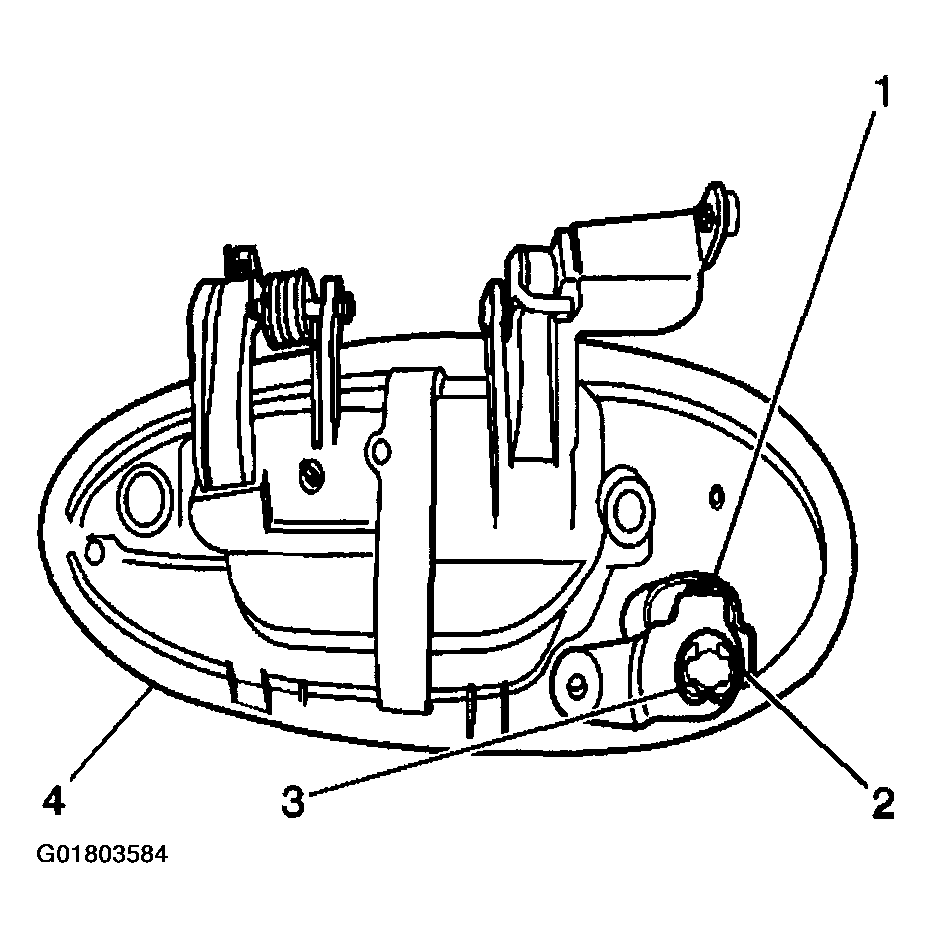

    Fig 1: Removing Door Lock Cylinder
    G01803584Courtesy of GENERAL MOTORS CORP.
