Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door trim panel. Refer to Trim Panel Replacement - Side Rear Door .
  2. Peel back the water deflector far enough to access the door latch. Refer to Water Deflector Replacement - Rear Door .
  3. Remove the inside door handle. Refer to Door Handle Replacement - Rear Inside .
  4. Disconnect the outside door handle rod (1) from door latch by opening the clip (2).

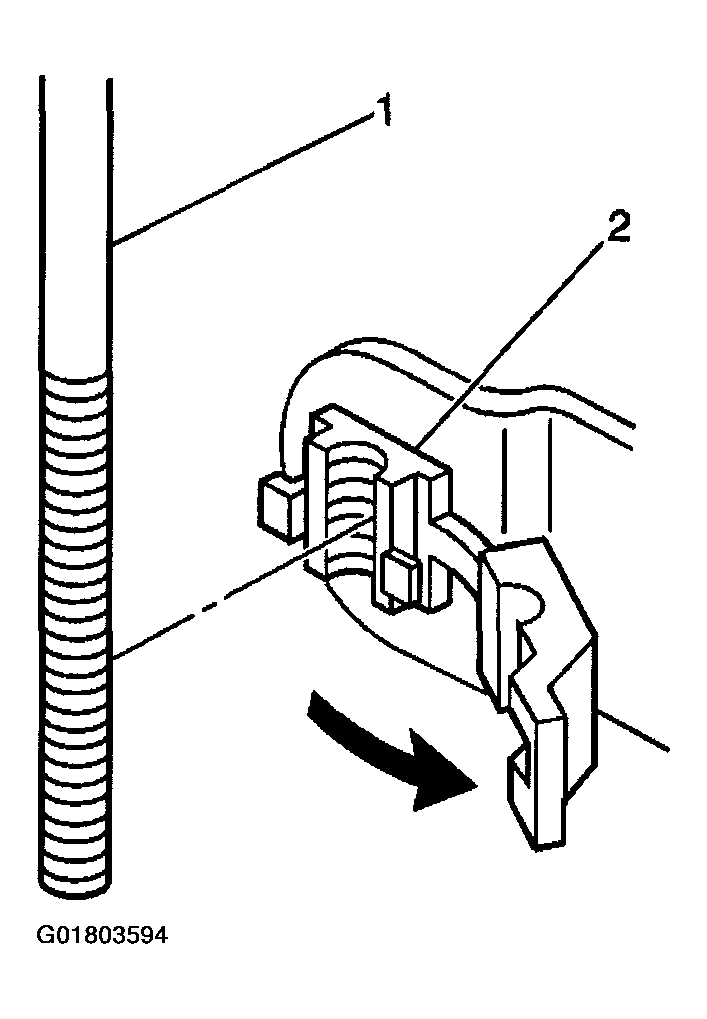

    Fig 1: Disconnecting Outside Door Handle Rod
    G01803594Courtesy of GENERAL MOTORS CORP.
  5. Remove the door latch fasteners.
  6. Remove the door latch (1) with the inside door handle and lock rods attached.
  7. Disconnect the electrical connectors.

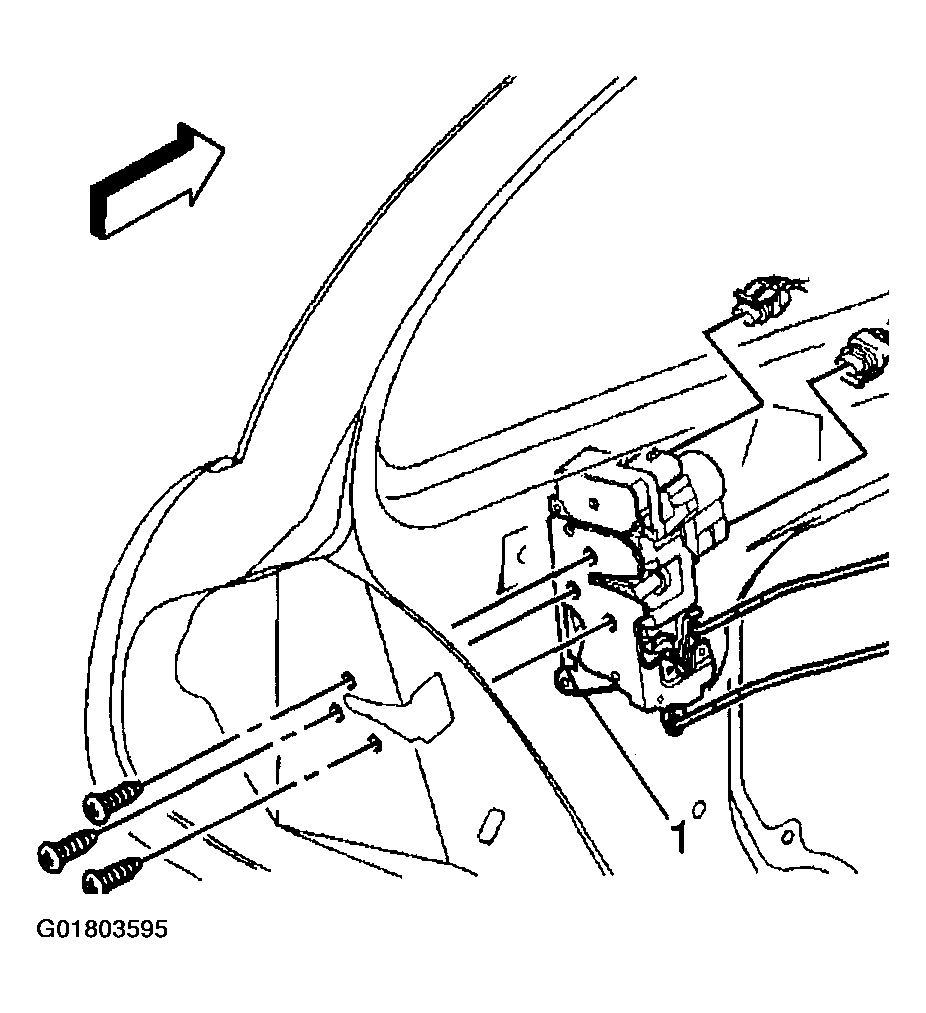

    Fig 2: Removing Door Latch
    G01803595Courtesy of GENERAL MOTORS CORP.
