Removal Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora and 2001 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place window in the full up position.
  2. Remove the door trim panel. Refer to Trim Panel Replacement - Side Front Door .
  3. Remove the door module. Refer to Door Control Module Replacement .
  4. Remove the inside door handle. Refer to Door Handle Replacement - Front Inside .
  5. Remove the water deflector. Refer to Water Deflector Replacement - Front Door .
  6. Disconnect the electrical connectors.

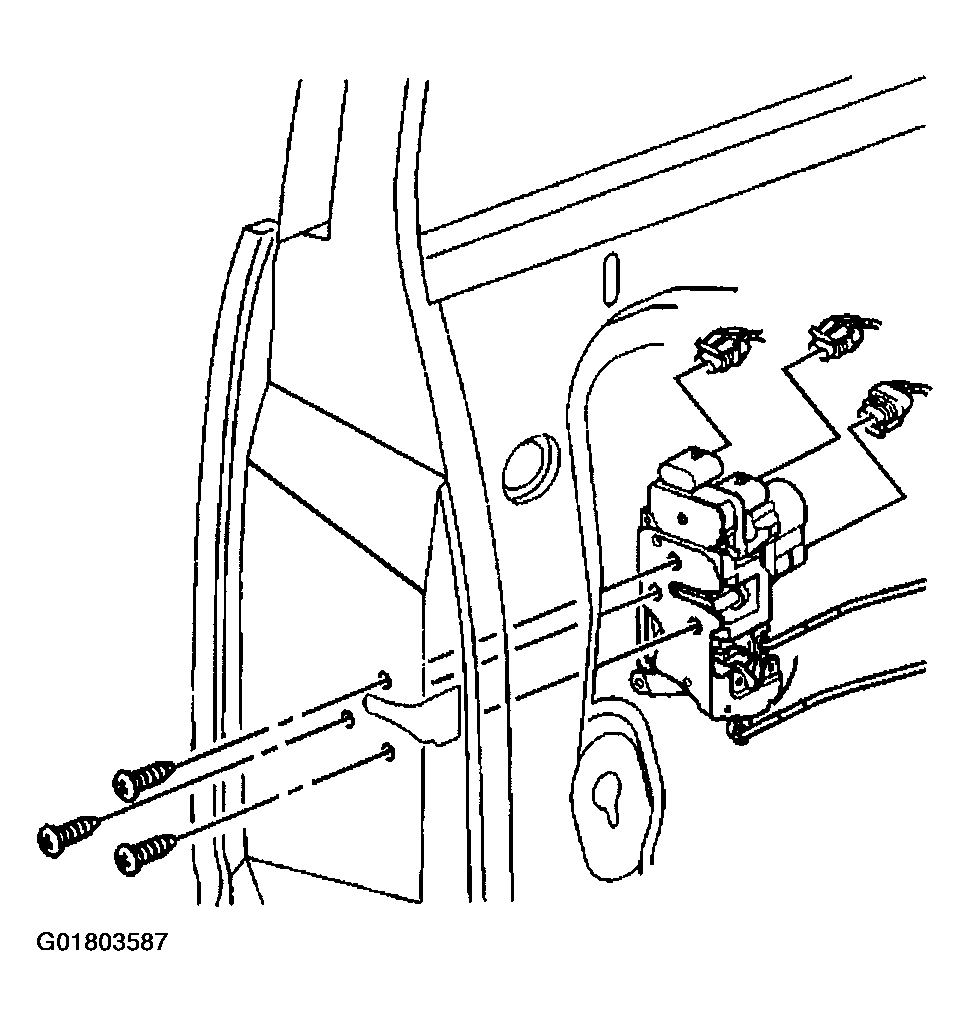

    Fig 1: Removing Door Latch
    G01803587Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the lock cylinder rod from the door latch.

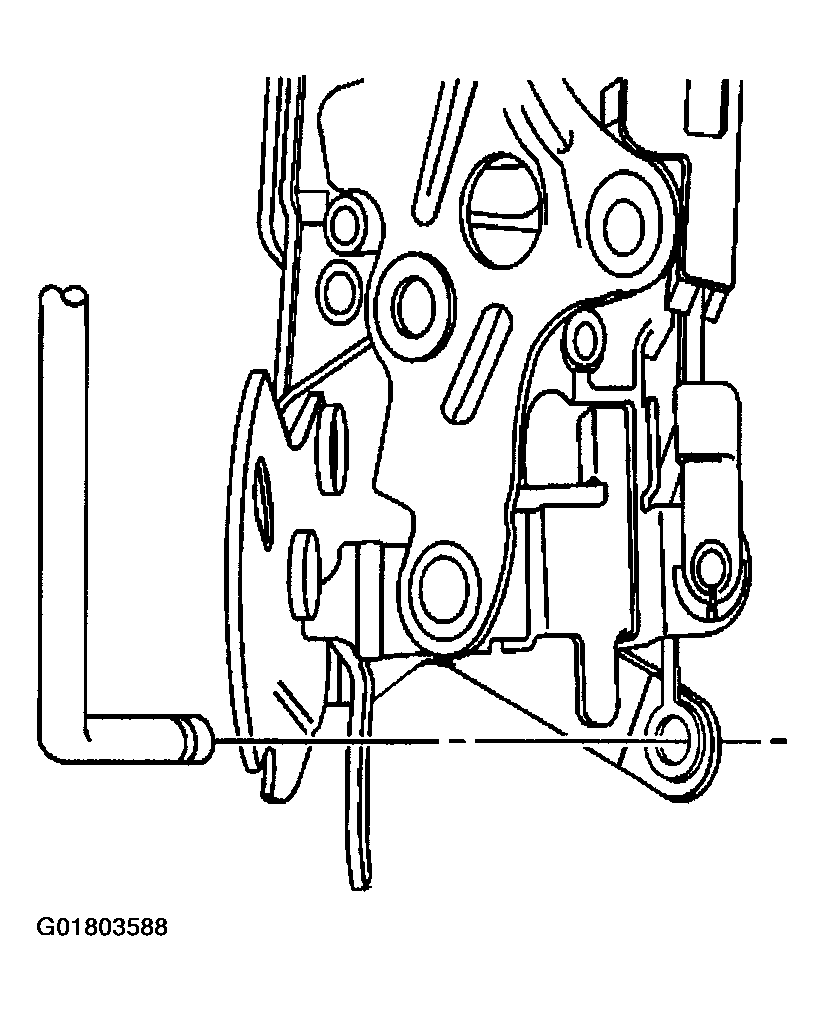

    Fig 2: Disconnecting Lock Cylinder Rod
    G01803588Courtesy of GENERAL MOTORS CORP.
  8. Disconnect the outside door handle rod (1) from the door latch by opening the clip (2).

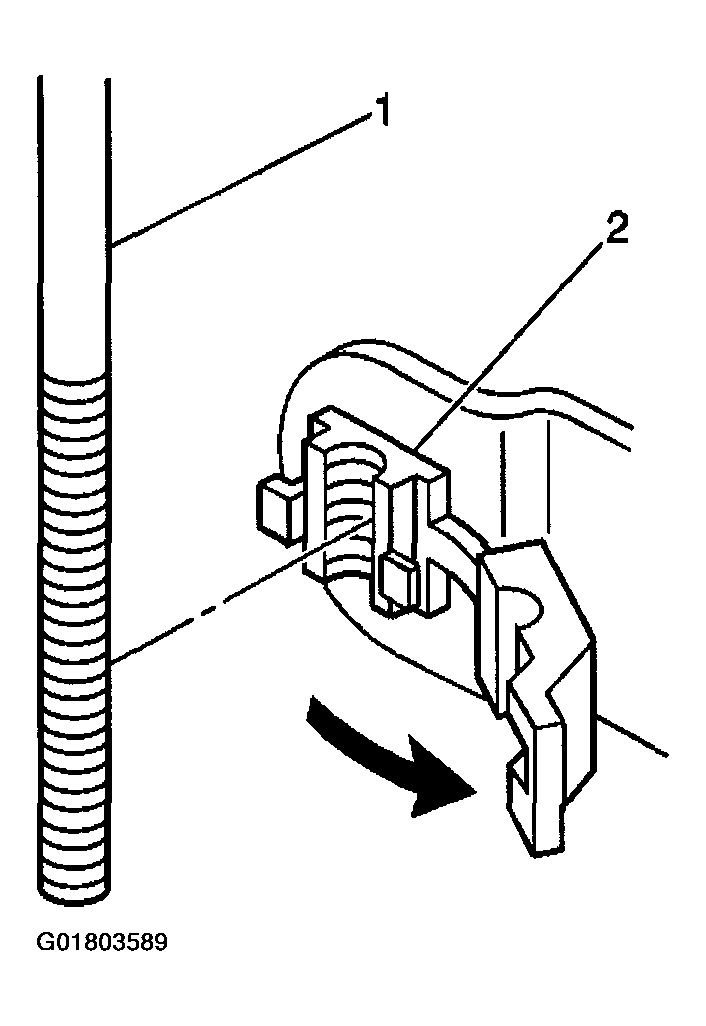

    Fig 3: Disconnecting Outside Door Handle Rod
    G01803589Courtesy of GENERAL MOTORS CORP.
  9. Remove the fasteners from the door latch.
  10. Remove the door latch from the door with the inside door handle and lock rods attached.

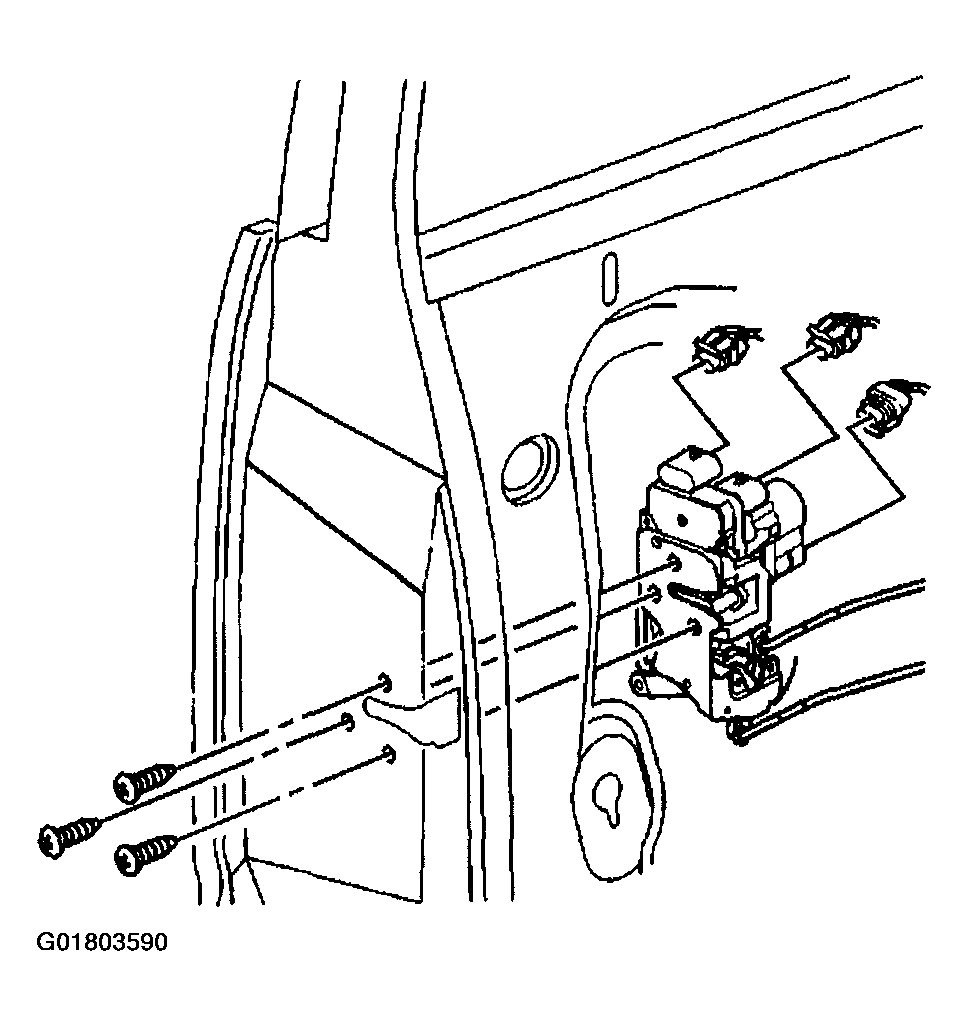

    Fig 4: Removing Door Latch
    G01803590Courtesy of GENERAL MOTORS CORP.
